Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
50
Audi A1
Coolant Circuit 1.6 TDI
Any coolant running off should be collected in an appropriate container. Route hoses kink-free. Un-
less specified otherwise, always fasten using cable ties. Position clamps so that other hoses cannot
be damaged. The heater must be filled with coolant when installing the hoses.

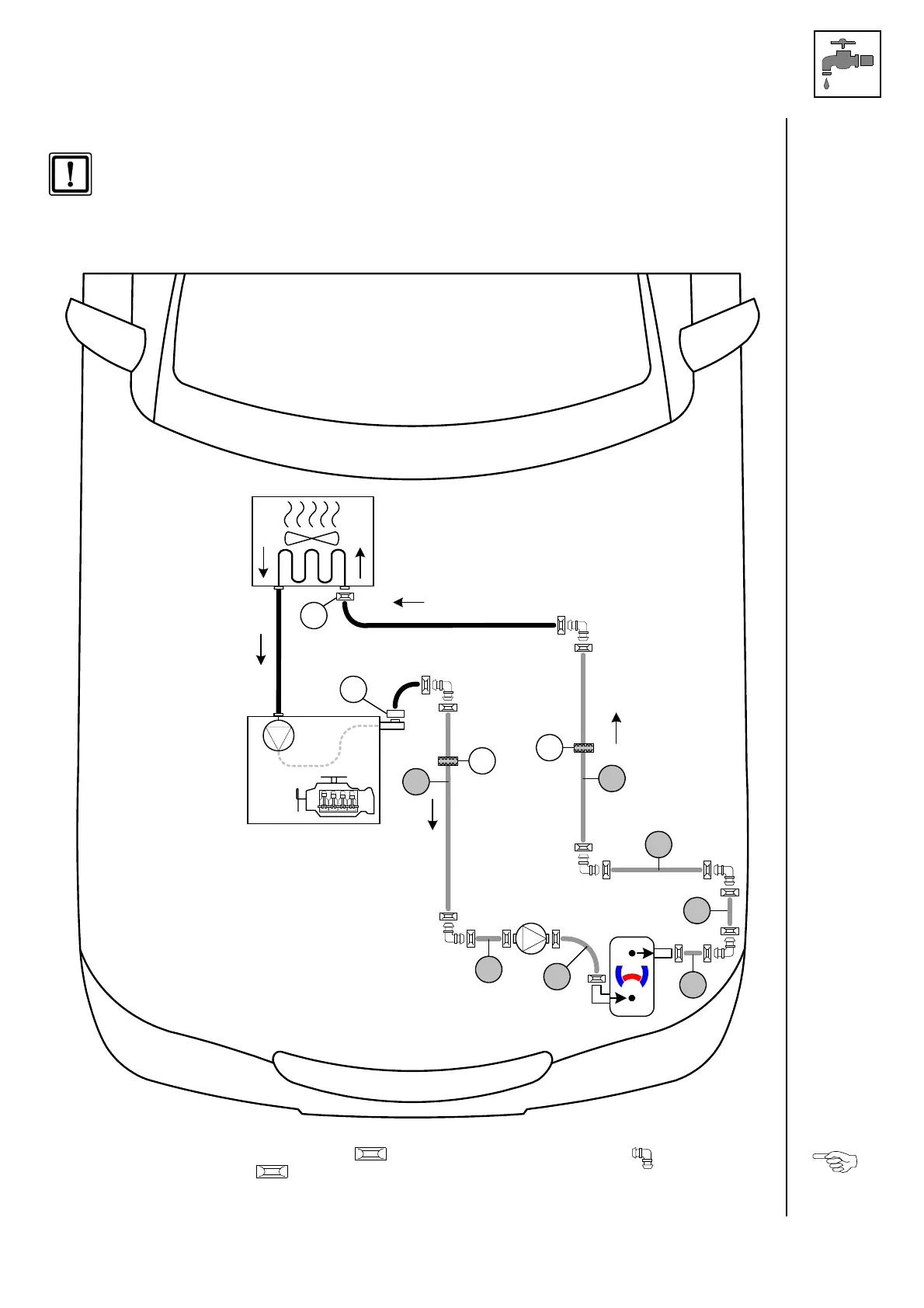

The connection should be modelled on an ‘inline’ circuit and based on the following diagram:
Hose rout-
ing diagram
All spring clips without a specific designation = 25 mm dia. All connecting pipes = 18x18 mm dia.
1 = Original vehicle spring clip . 2 = Coupling piece on engine outlet.
A
G
2
1
C
E
B
F
3
3
D
