Webasto thermo top evo Installation Documentation

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
19

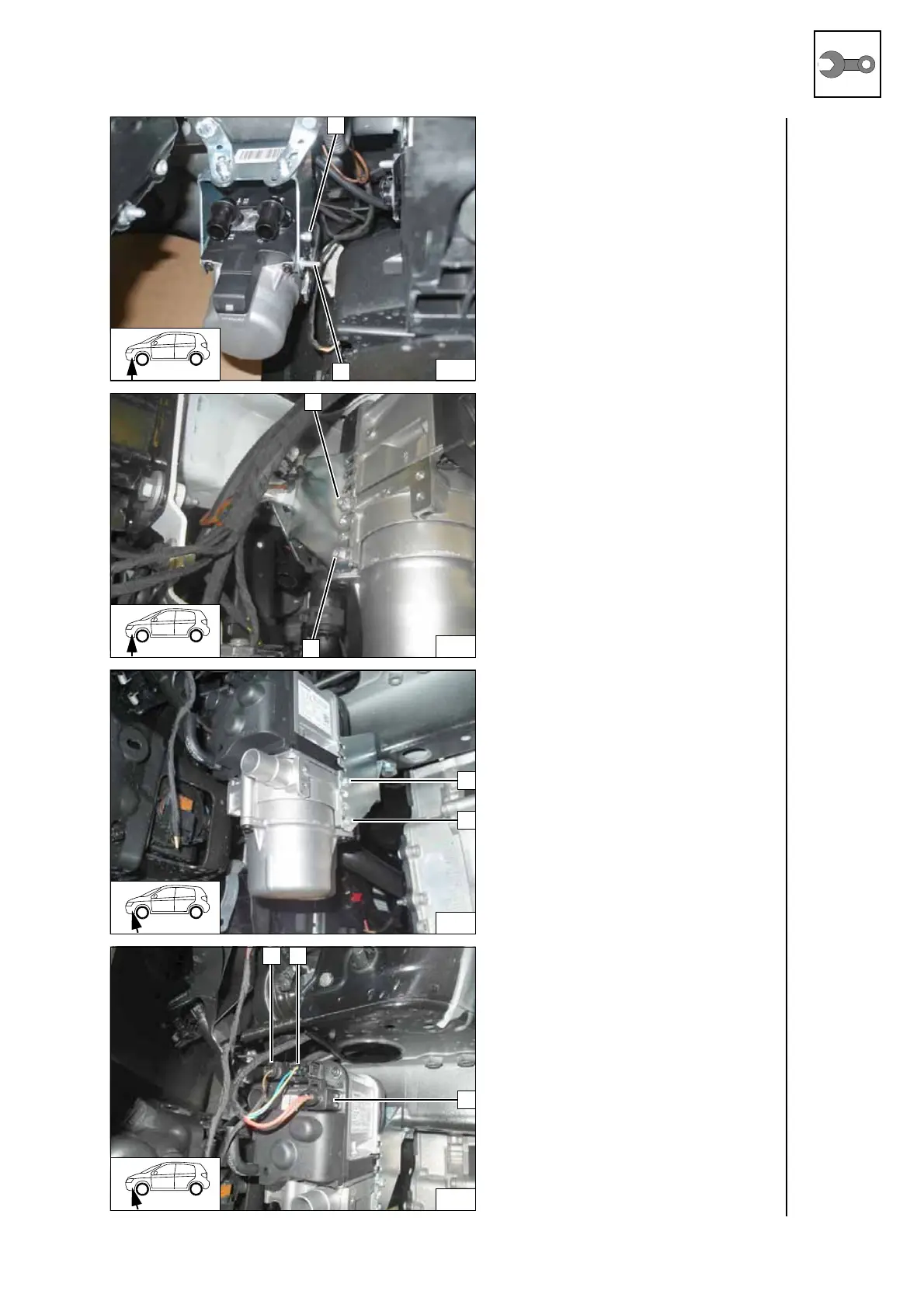

Audi A1
Installing Heater
Petrol and 1.4 TDI
1
Tighten 5x13 self-tapping bolt
2 Tighten M5/M6x15 self-tapping stud
bolts
Installing
heater
1.6 TDI
1
Tighten 5x13 self-tapping bolt [2x]
Installing
heater
All vehicles
1
Tighten 5x13 self-tapping bolt [2x]
Installing
heater
1
Circulating pump wiring harness con-
nector
2 Heater wiring harness connector [2x]
Connect-
ing wiring
harness
48
1
2
49
1
1
50
1
1
51
21
2
