Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
20
Audi A1
Exhaust Part 1
a1 = 270
a2 = 180
X =

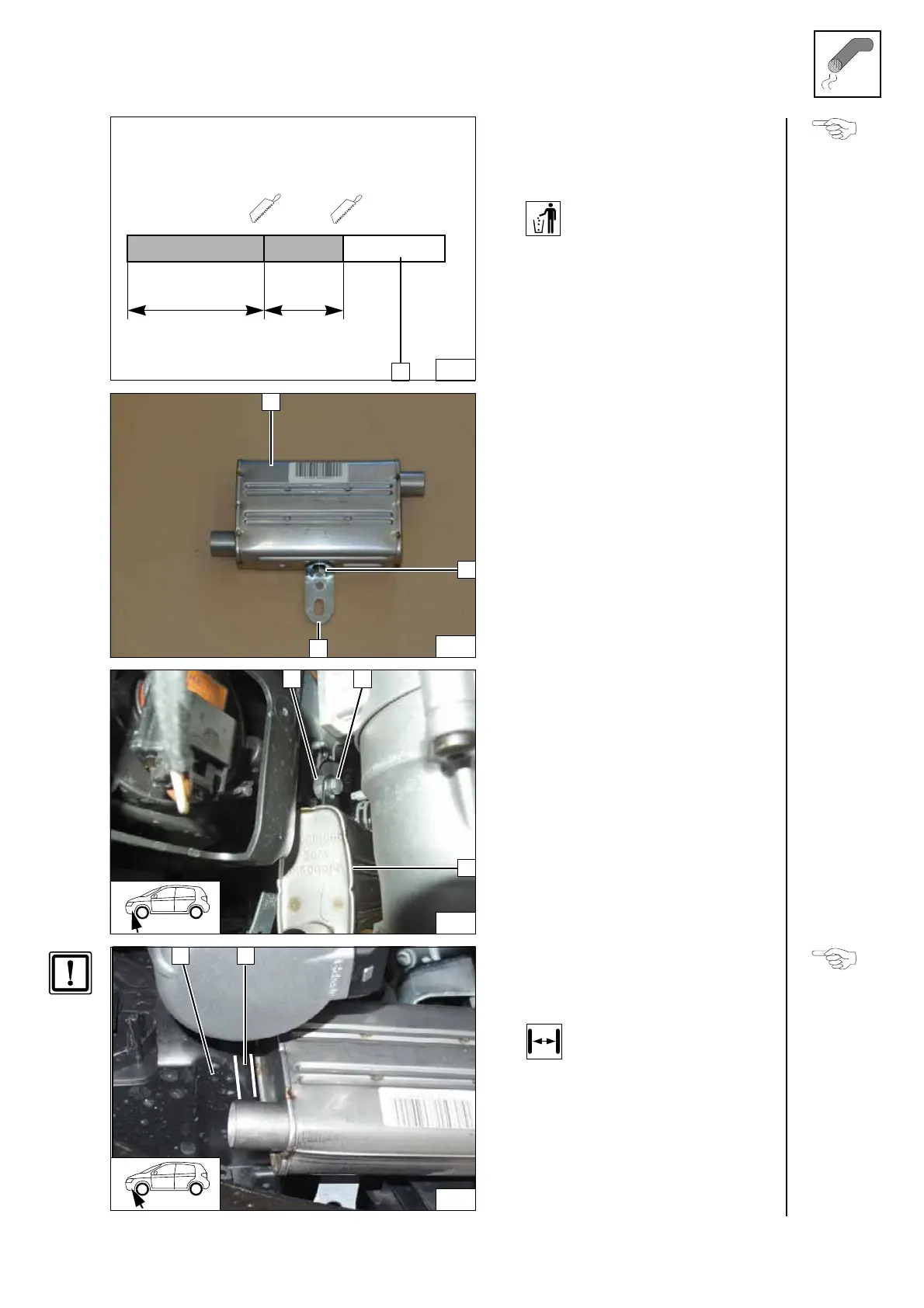

Preparing
exhaust
pipe
1 Silencer
2 M6x16 bolt, spring lockwasher
3 Angle bracket
Premount-
ing ex-
haust
silencer
1 10mm shim
2 M8x20 bolt, spring lockwasher,
washer
3 Premounted silencer
Installing
silencer
Ensure sufficient distance from neighbour-
ing components, correct if necessary.
1 Housing of front fog light
2 ≥ 5 mm
Aligning si-
lencer
a1
a2
X
52
3
53
2
1
54
1 2
3
55
1 2
