Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
17
Audi A1
1 Perforated bracket B
2 Perforated bracket C
3 M6x12 bolt, flanged nut

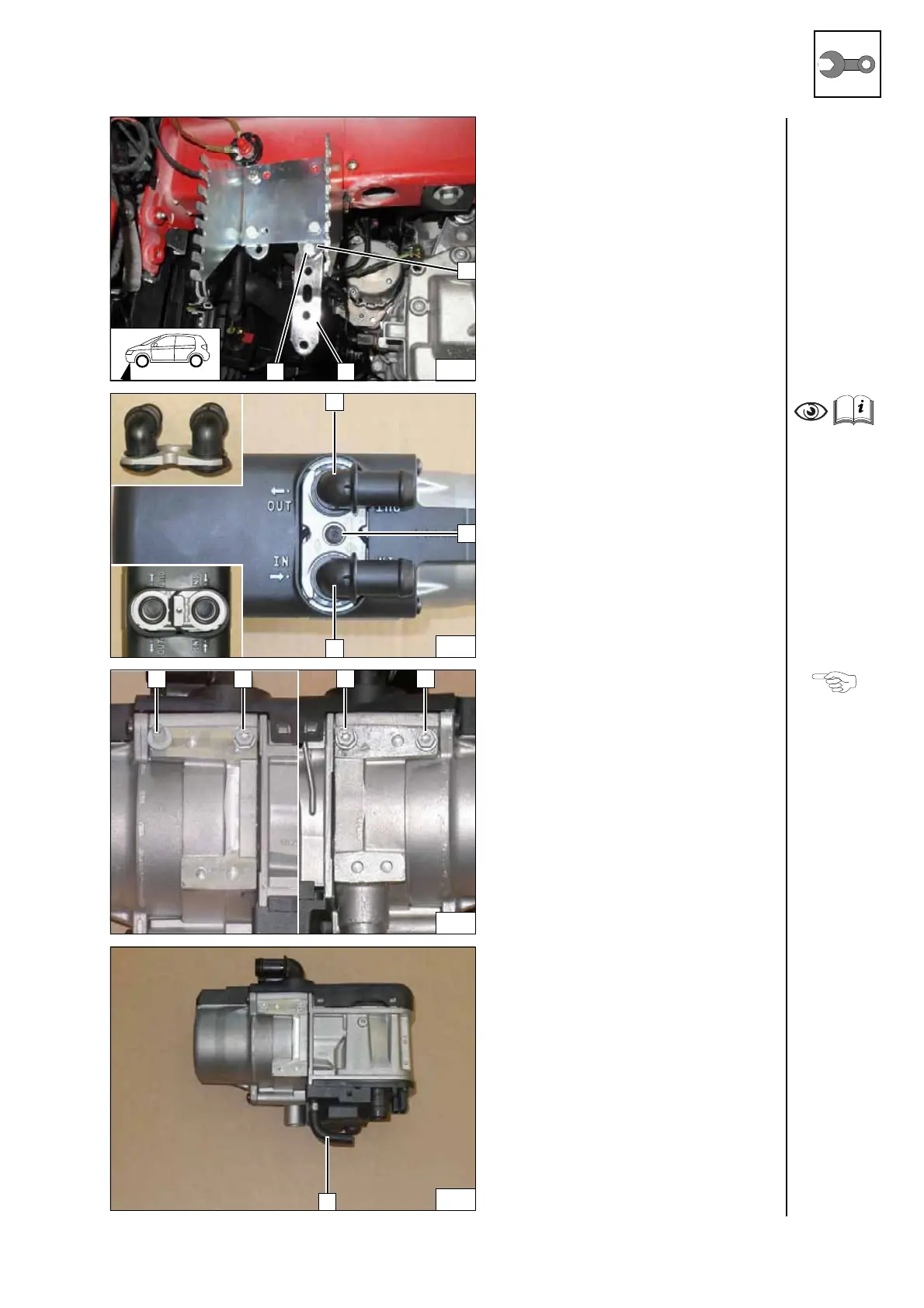

Installing
perforated
bracket C
Preparing Heater
All vehicles
1
Water connection piece, sealing ring
[2x each]
2 5x15 self-tapping bolt, retaining plate
of water connection piece
Installing
water con-
nection
piece
Petrol and 1.4 TDI
Screw self-tapping stud bolt M5 / M6 x
15.5
1 and 5x13 self-tapping bolts 2 [3x] in
existing holes by a maximum of 3 thread
turns.
Premount-
ing bolts
loosely
1
90° moulded hose, 10mm dia. clamp
Premounting
moulded
hose
40
1
3 2
41
1
1
2
21
42
2 2
43
1
