Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
16

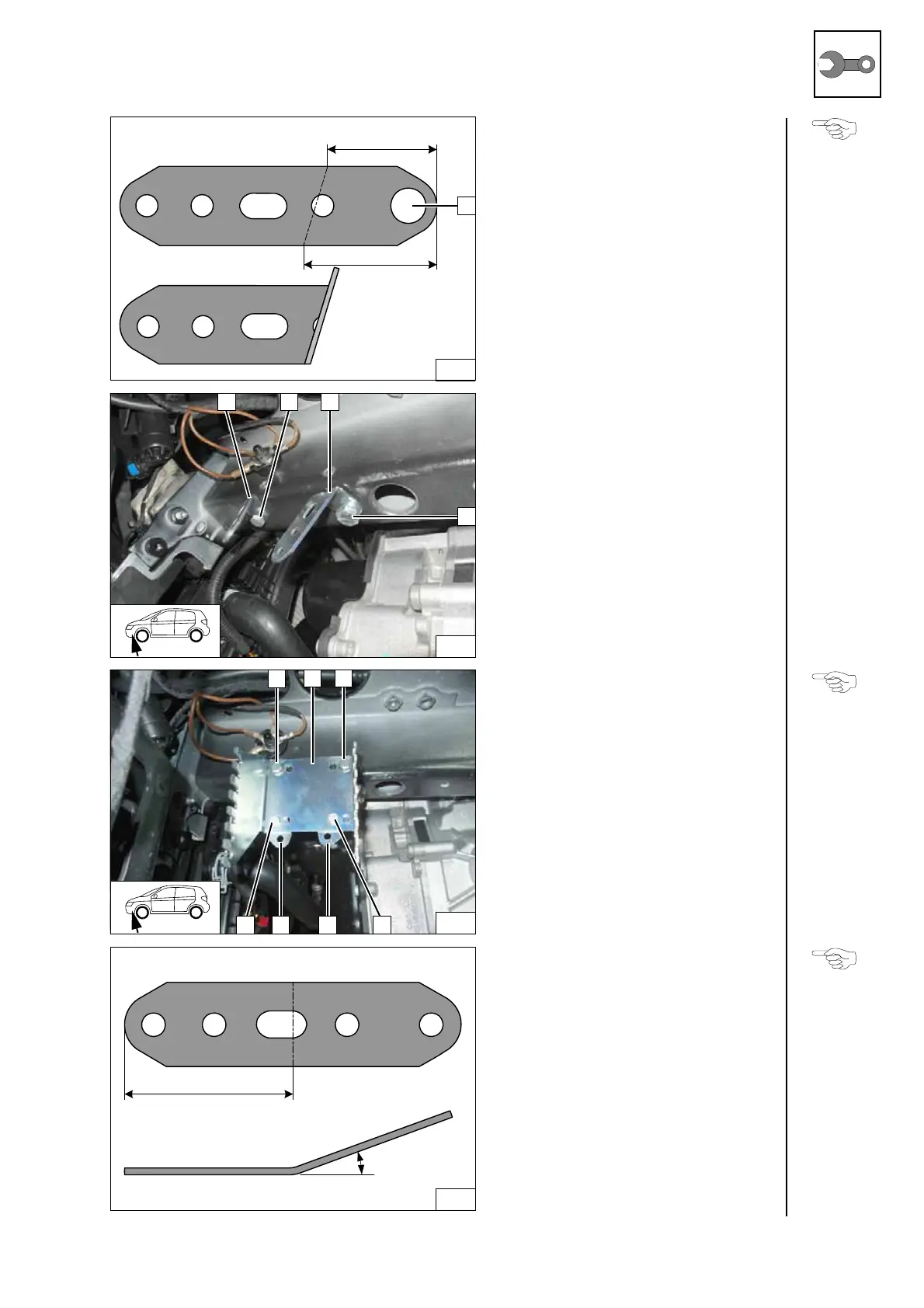

Audi A1
1 Drill out hole to 10.5 mm dia.
Preparing
perforated
bracket B
1 Perforated bracket A
2
M8x20 bolt, spring lockwasher, exist-
ing threaded hole
3 Perforated bracket B
4
M10x16 bolt, spring lockwasher
Installing
perforated
brackets
loosely
Tighten loose screw connections.
1 M6x20 bolt, spring lockwasher [2x
each]
2 Bracket
3 M6x12 bolt, flanged nut [2x each]
4 Perforated bracket B
5
Perforated bracket A
Installing
bracket
1.6 TDI
Preparing
perforated
bracket C
30
40
36
1
37
4
1 2 3
38
1
2 1
3 35 4
20°
50
39
