Webasto thermo top evo Installation Documentation

Audi A1
Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
8
Electrical System for Petrol Vehicles

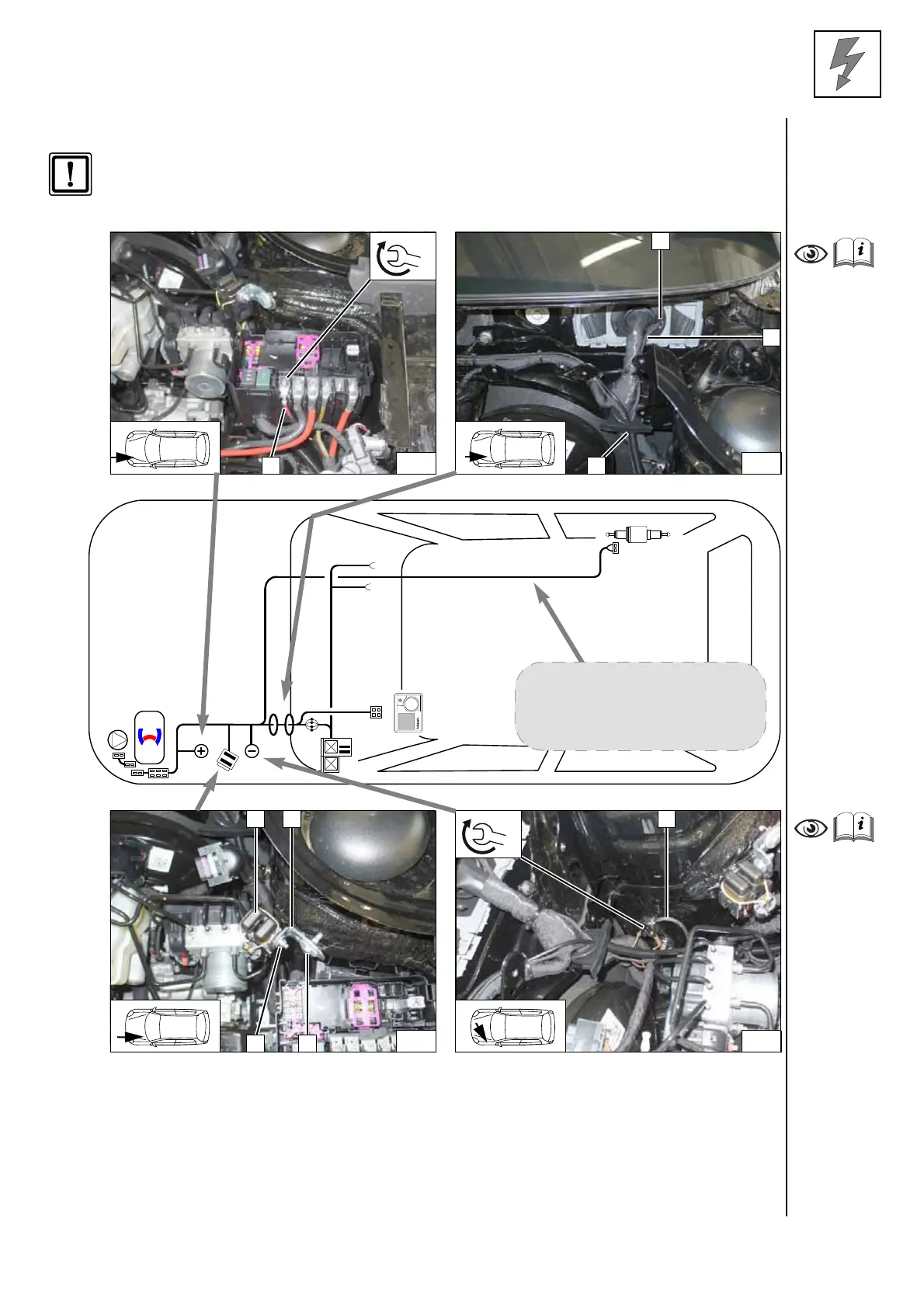

Engine compartment fuse holder
Positive wire
1 Positive wire on positive distributor
Passenger compartment wiring harness pass through
1 Passenger compartment rubber plug pass through
2 Wiring harnesses of heater, heater control
3 Rubber plug pass through, coolant reservoir
Wiring har-
ness rout-
ing diagram
Engine compartment fuse holder
1 Fuses F1-2
2 Angle bracket
3 M6x20 bolt, large diameter washer, existing
hole, flanged nut
4 M5x16 bolt, large diameter washer [2x],
retaining plate of fuse holder, nut
Earth wire
1 Earth wire on original vehicle earth support
point
8
1
Nm
!
9
2
3
1
Route the metering pump wiring
harness later, together with the
fuel line, along the original vehi-
cle fuel lines on the underbody.
10
3
1 2
4
11
Nm
!
1
