Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
51
Audi A1

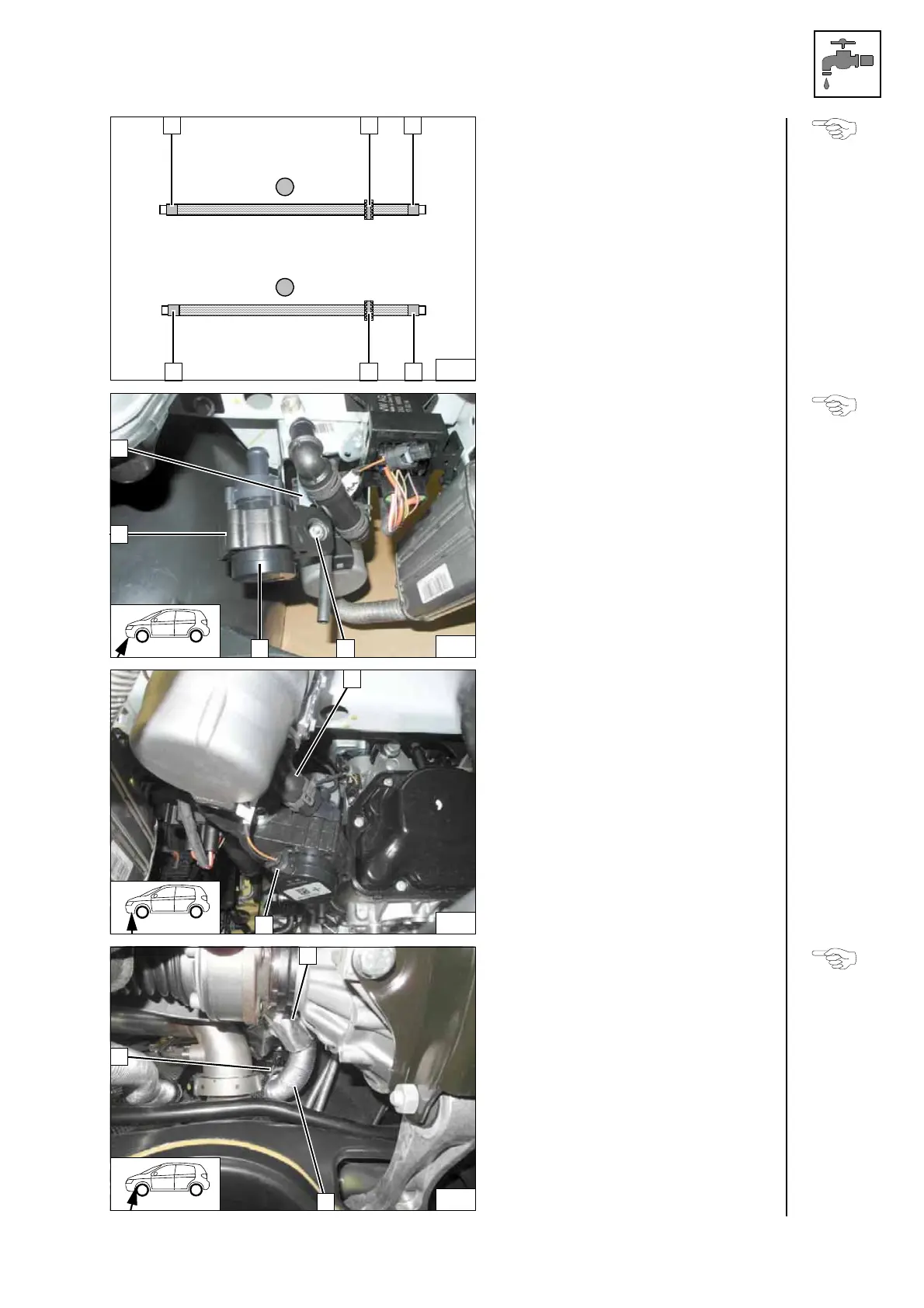

Slide on braided protection hoses and cut
to length.
1 Cut heat shrink plastic tubing to size,
50mm long [4x]
2 Black (sw) rubber isolator [2x]
Installing
braided
protection
hoses
Use lower hole of perforated bracket C 4 !
1 M6x25 bolt, flanged nut
2 Circulating pump
3 Circulating pump mount
Installing
circulating
pump
1 Circulating pump wiring harness con-
nector
Connect-
ing circulat-
ing pump
Remove hose of engine outlet / heat ex-
changer inlet
2 with engine outlet coupling
piece. Heat protection
1 and spring clip 3
will be reused.
Cutting
point
A
G
1 1
1 1
156
2
2
157
1
3
2
4
158
1
B
159
2
3
1
