Audi A1
1 Engine outlet hose section
2 Heat exchanger inlet hose section
Connecting
engine out-
let

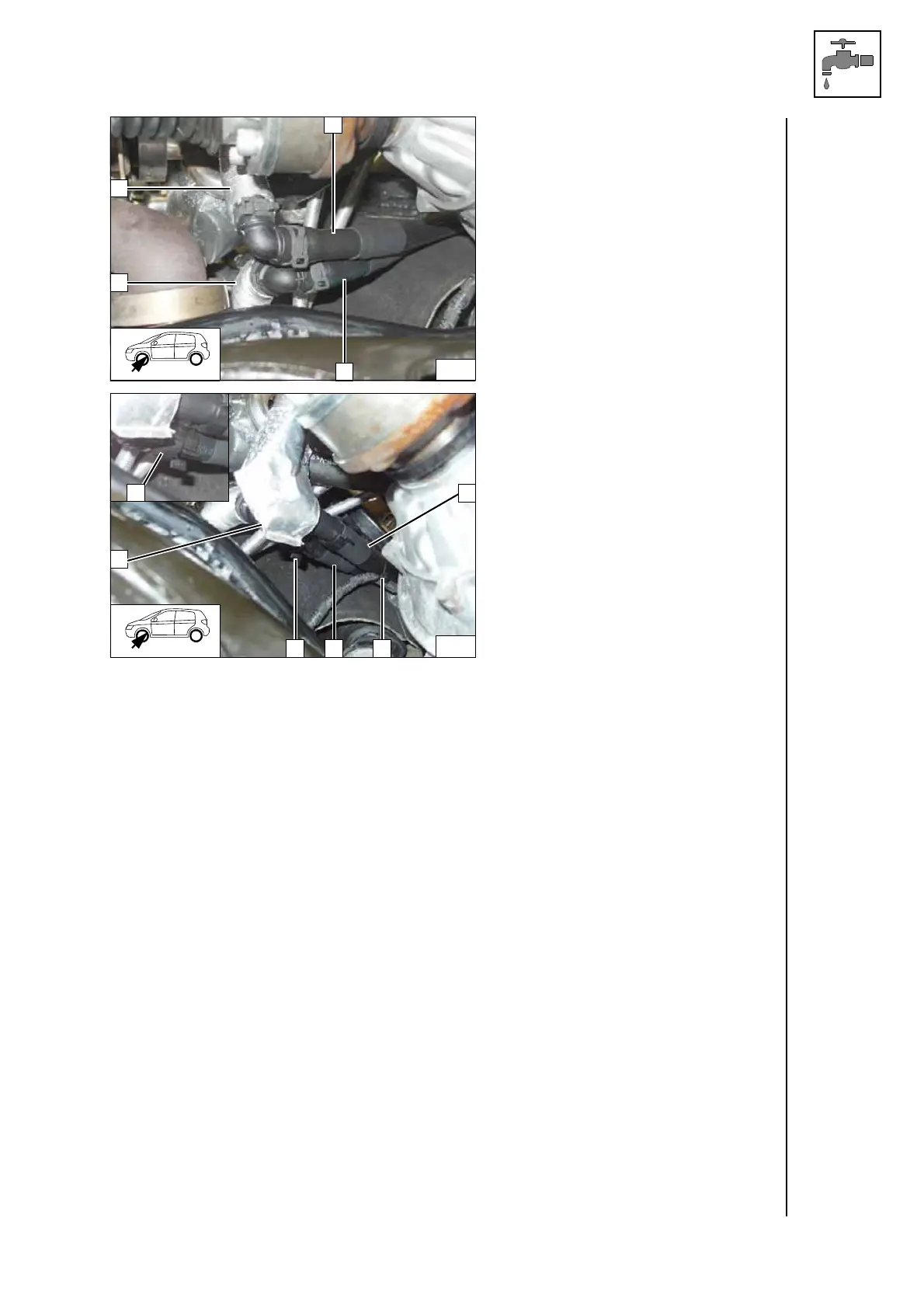

1 Attach original vehicle wiring harness
using a cable tie
2 25x25 hose bracket between hose A
and hose
G
3
Install original vehicle heat protection
4 13x25 hose bracket between gear-
shift cable and hose
A
Fastening
hoses A
and G
To Next Page
