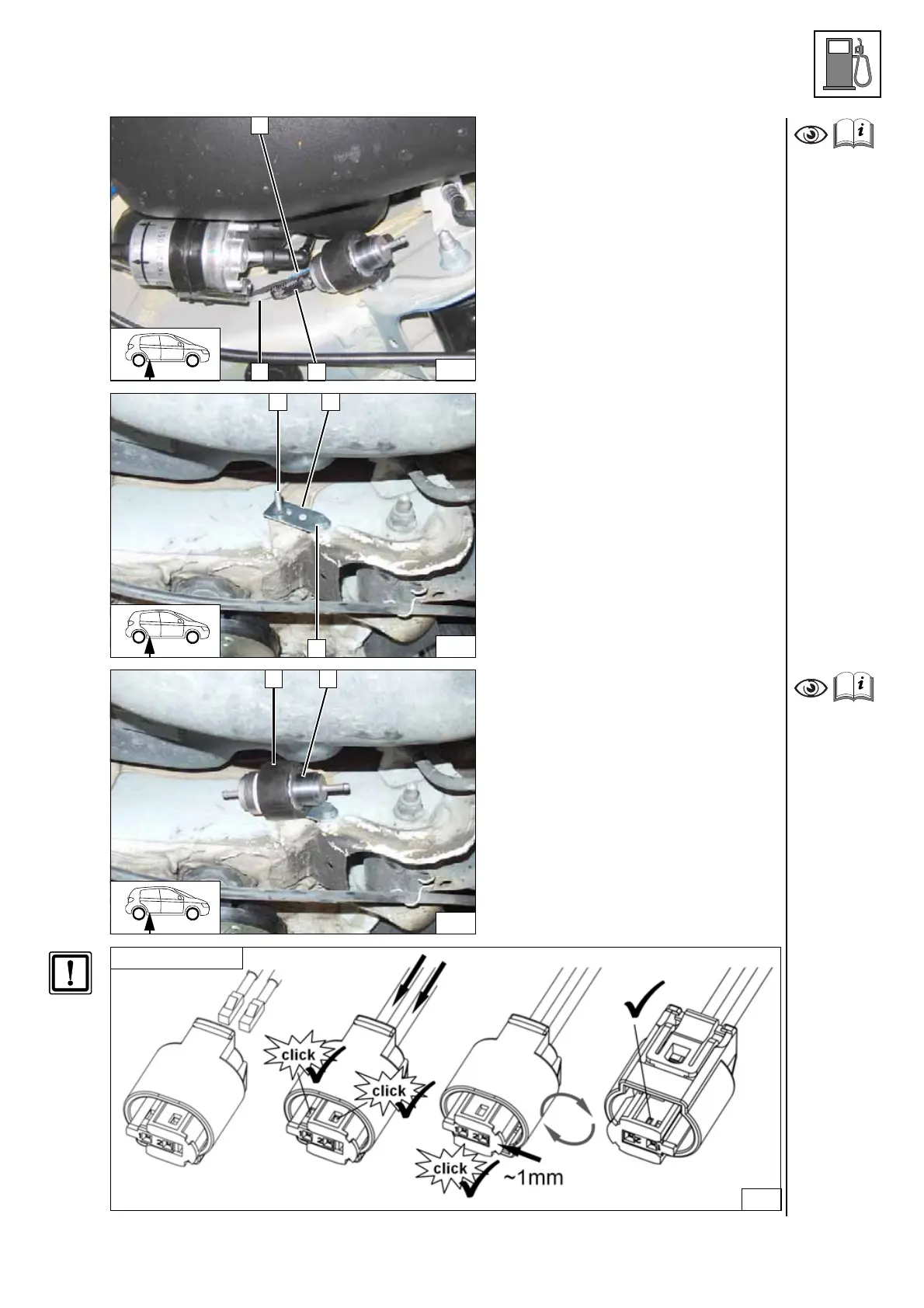

Audi A1
1 Metering pump wiring harness, con-
nector X7 mounted
2 Hose section, 10mm dia. clamp [2x]
3 Fuel line of heater
Connect-
ing meter-
ing pump
1.6 TDI
1
Premount M6x25 bolt, pin lock
2 Perforated bracket
3 M6x20 bolt, flanged nut, original vehi-
cle hole
Installing
perforated
bracket
Attach metering pump mount 1 with a sup-
port angle bracket and a flanged nut to the
M6x25 bolt.
2 Metering pump
Installing
metering
pump
Completing
metering
pump connec-
tor
68
1
3 2
69
1 2
3
70
1 2
Pin assignment is not relevant.
Connector X7
71
