Audi A1

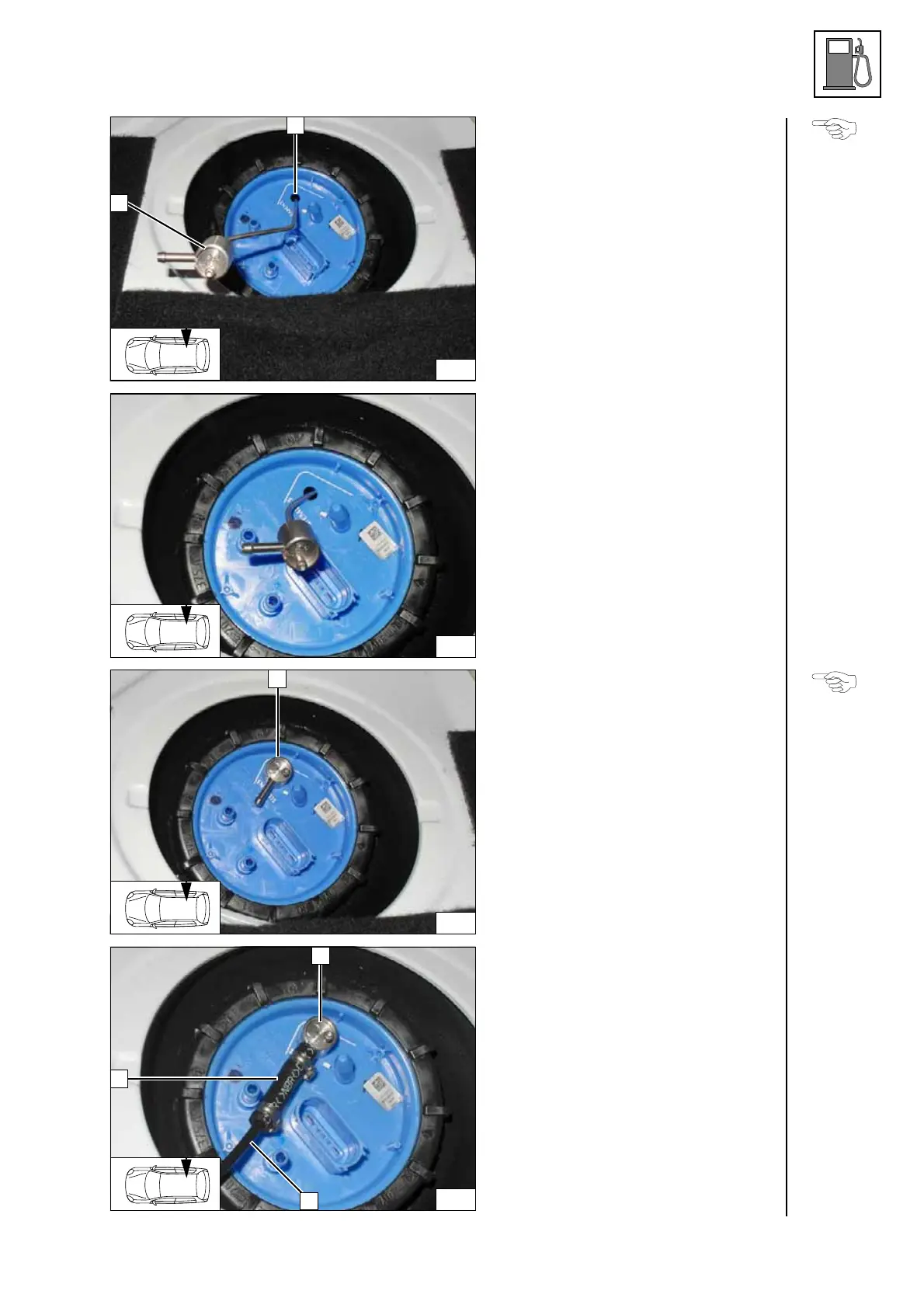

Work steps F4 and F5.
Bend FuelFix
2 according to template and
cut to length.
Insert into hole
1.
Inserting
FuelFix
Inserting
FuelFix
Work steps F5.3 and F5.4.
Turn FuelFix
1 as shown to align it.
Aligning
FuelFix
Work step F6.
1 FuelFix
2 Fuel line
3 Hose section, 10mm dia. clamp [2x]
Connect-
ing fuel line
76
1
2
77
1
78
79
2
1
3
