Audi A1

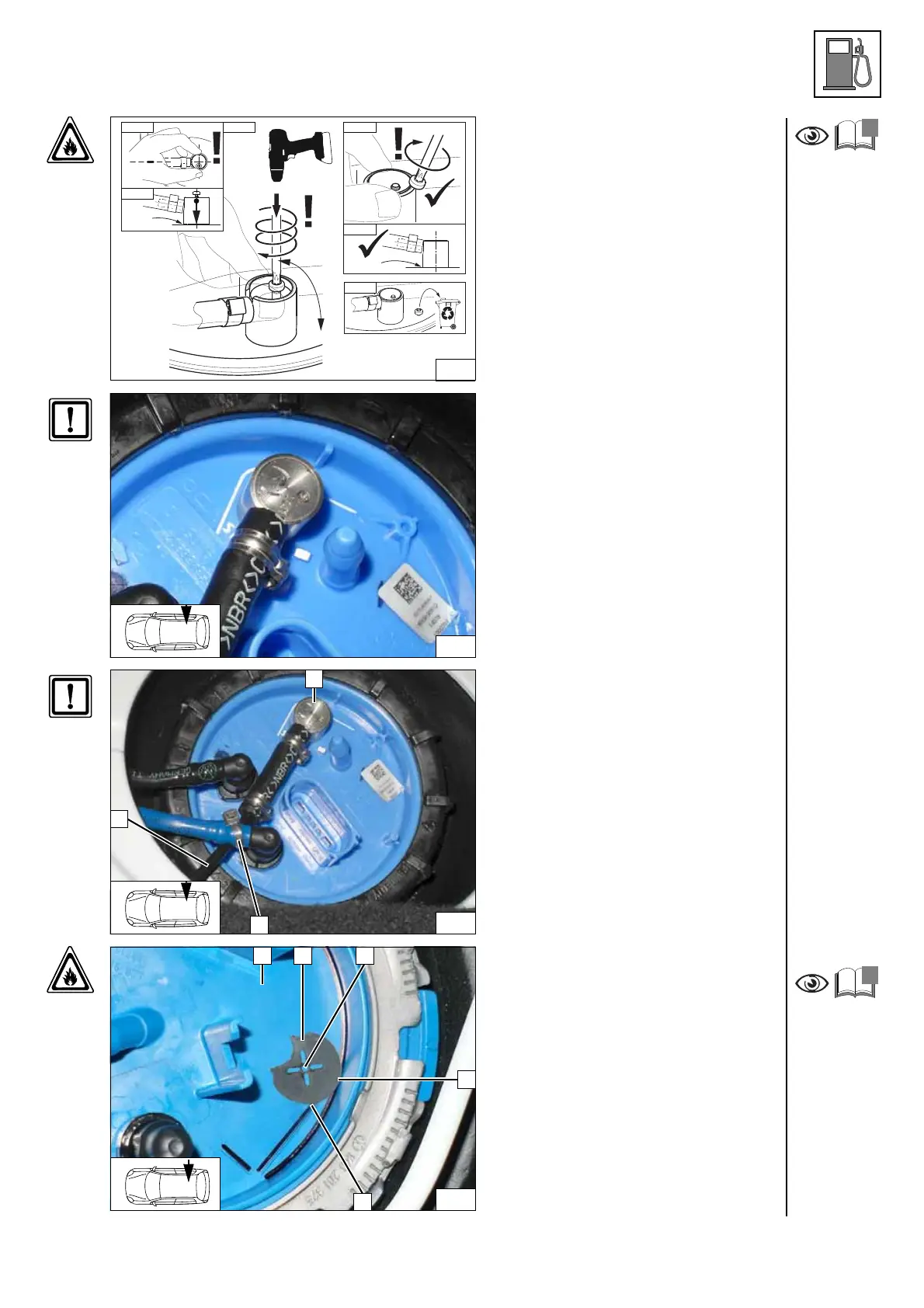

Work step F7.
Installing
FuelFix
Work step F8.
Checking
firm seating
of FuelFix
1 FuelFix installed
2 Cable tie as tension relief
3 Fuel line of FuelFix
Securing
fuel line
Version 2
Work steps F1 and F2.
1 Fuel tank sending unit
2 Position 22mm dia. template, copy
hole pattern
3 Copy hole pattern
4 Contact point, rim of fuel tank sending
unit
5 Contact point, edge of raised part
Hole for
FuelFix
F 7.1.
<1... 0 mm
F 7.2.
200 min
-1
90°
50 - max
F 7.3.
F 7.4.
F 7.5.
F 7.6.
