Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
23
Audi A1

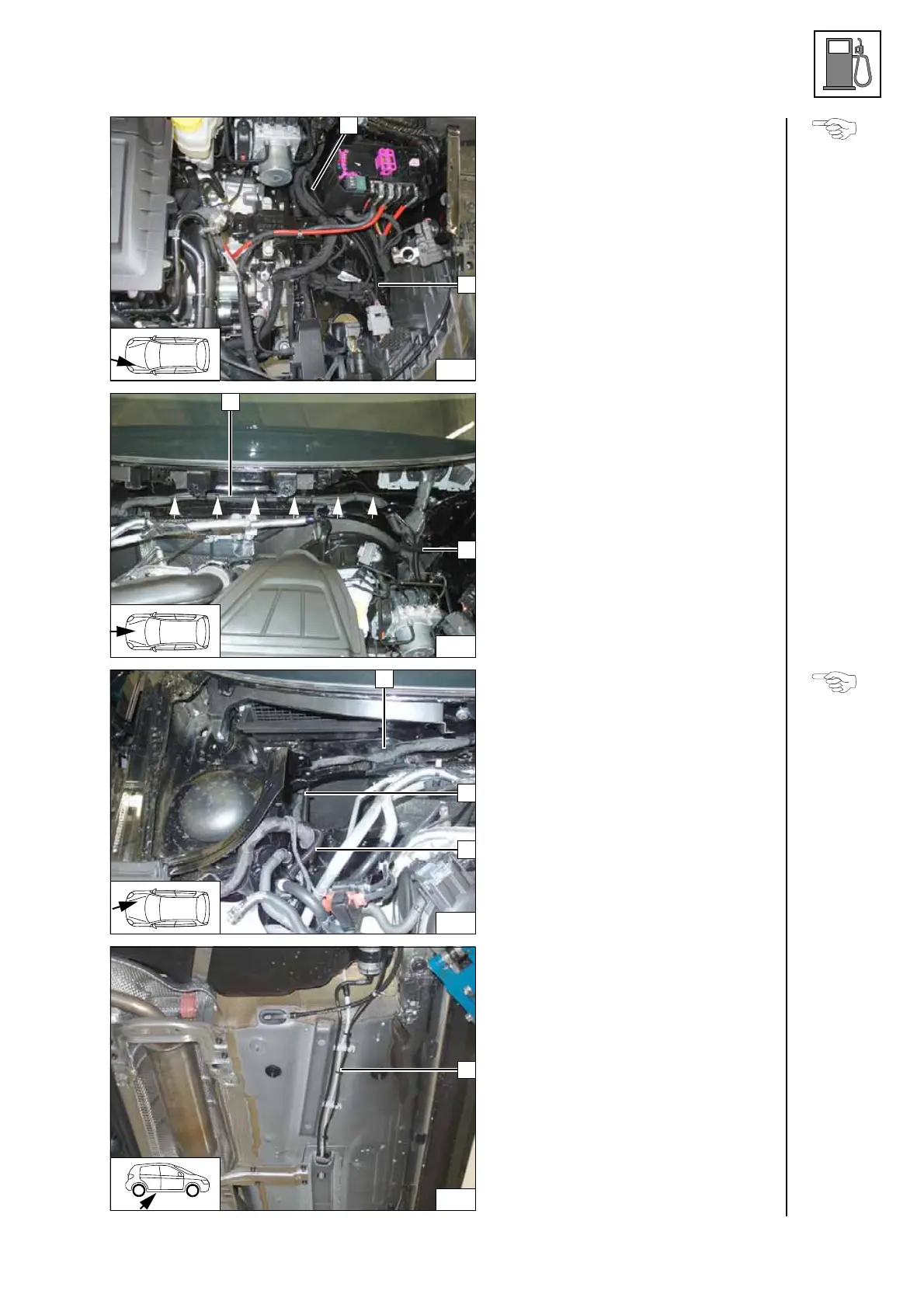

Route corrugated tube S to the firewall.
Routing
lines
1 Fuel line and wiring harness of meter-
ing pump attached to the original vehi-
cle wiring harness
2 Coolant reservoir pass through
Routing
lines
Pull wiring harness of metering pump and
fuel line into corrugated tube
T, route in
the engine compartment and along the
original vehicle fuel line to the underbody.
1 Coolant reservoir pass through
Routing
lines
1
Fuel line and wiring harness of meter-
ing pump
Routing
lines
60
S
S
61
1
2
62
T
1
T
63
1
