Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
30
Audi A1

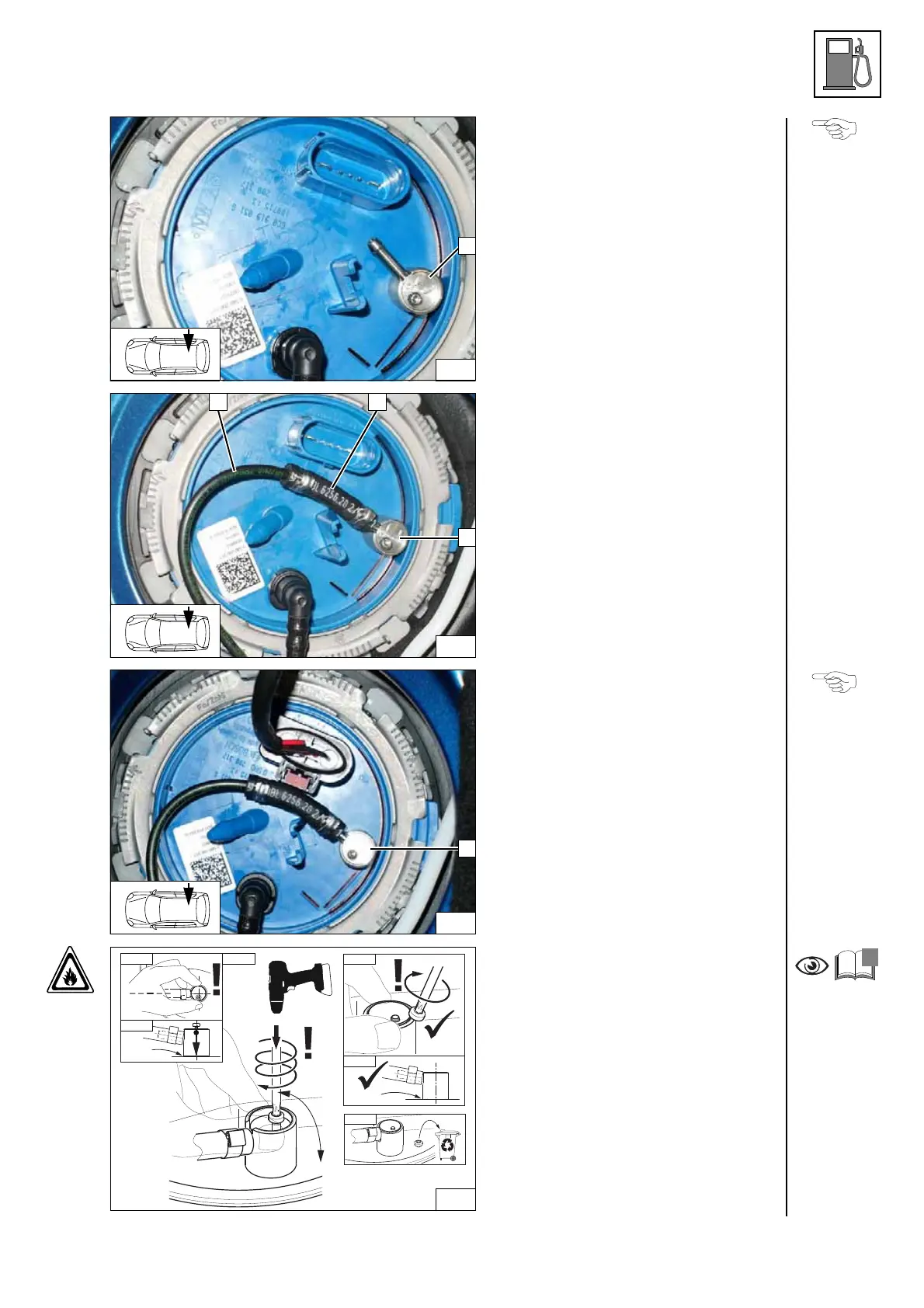

Work steps F5.3 and F5.4.
Align FuelFix
1 as shown.
Aligning
FuelFix
Work step F6.
1 Fuel line
2 Hose section, 10mm dia. clamp [2x]
3 FuelFix
Connect-
ing fuel line
Install original vehicle connector.
Align and install FuelFix
1 as shown in
next figure.
Installing
FuelFix
Work step F7.
F
Installing
FuelFix
88
1
89
1
3
2
90
1
0 mm
F 7.1.
<1... 0 mm
F 7.2.
200 min
-1
90°
50 - max
F 7.3.
F 7.4.
F 7.5.
F 7.6.
91
