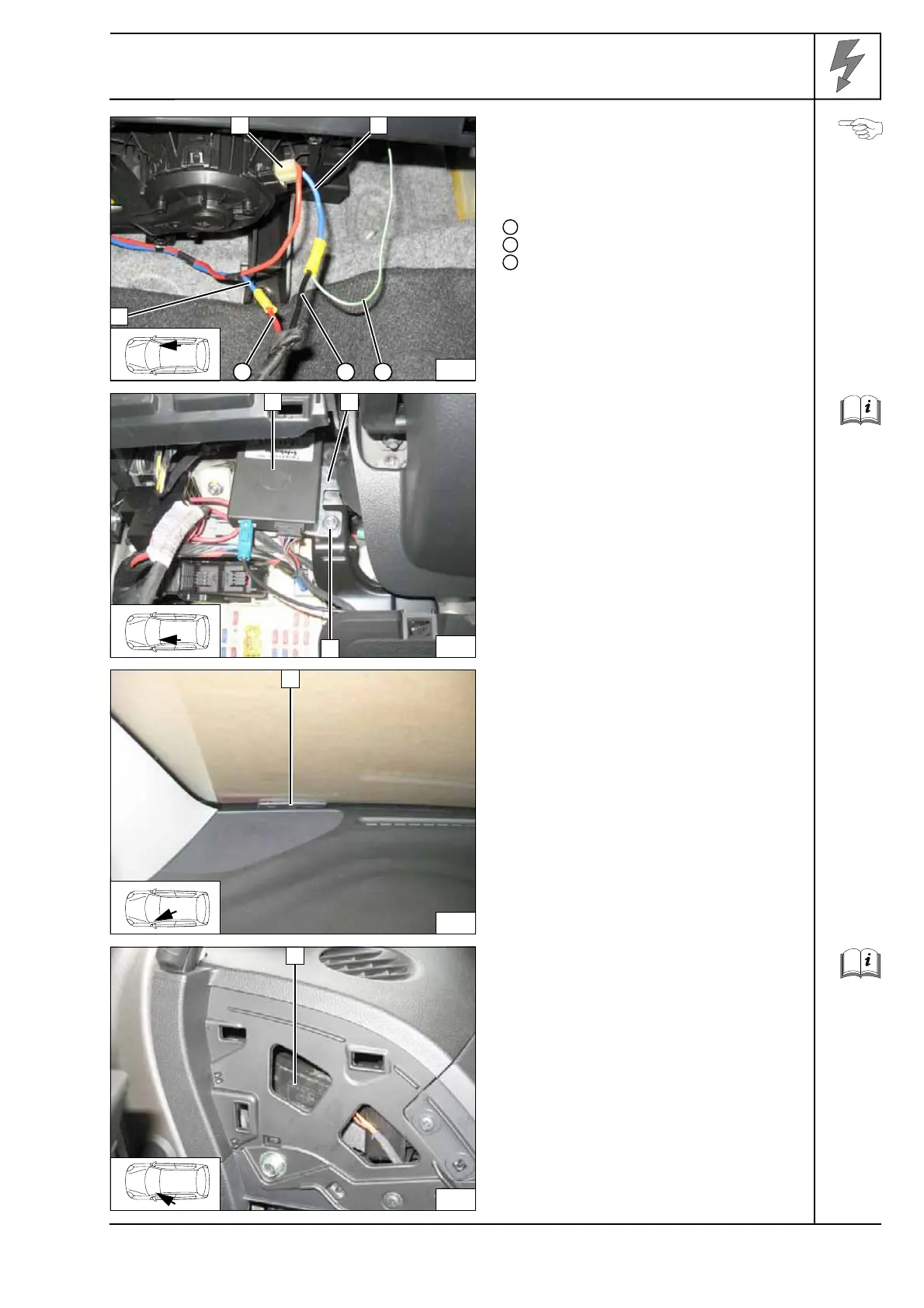

Connection to 2-pin connector 1 from fan mo-
tor. Produce connections as shown in wiring
diagram.
2 Blue (bl) wire from GM connector
3 Blue (bl) wire from fuse
Red (rt) wire from K1/87a
Black (sw) wire from K1/30
Green/white (gn/ws) wire from IPCU/86
Connect-
ing the fan
motor
Remote option (Telestart)
Drill out bracket 2 at position 3 to 6.5 mm dia.
1 Receiver
3 Original vehicle stud bolt, original vehicle
flanged nut
Mounting
receiver
1
Antenna
Mounting
antenna
Temperature sensor T100 HTM
Fasten temperature sensor 1 with adhesive
tape.
Mounting
tempera-
ture sensor
17
1
3
2
21
3
1
2
3
1
3
18
2
1
19
1
20
