Webasto thermo top evo Installation

Kia Picanto
1317554A_EN
8

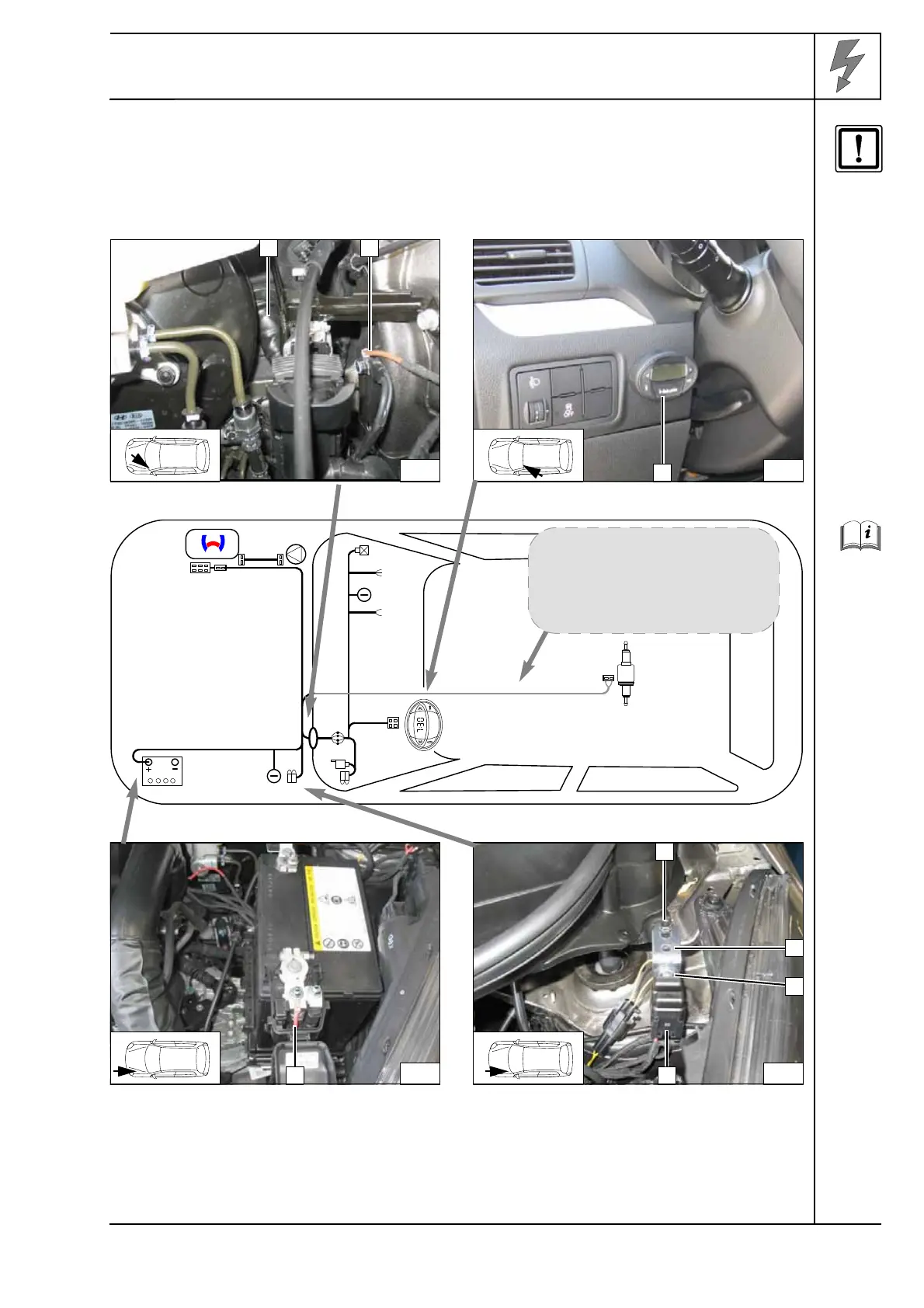

Electrical system
Wiring harness pass through, earth wire
1
Protective rubber plug
2 Earth wire on original vehicle earth support
point
Digital timer
1
Digital timer
Wiring har-
ness rout-
ing
diagram
Positive wire
1
Positive wire on positive battery terminal
Fuse holder for engine compartment
1
Original vehicle bolt
2 Angle bracket
3 M5x16 bolt, washer [2x], retaining plate for
fuse holder, nut
4 F1-2 fuses
5
1 2
6
1
Do not install the metering pump
wiring harness until later togeth-
er with fuel pipe along the origi-
nal vehicle fuel lines on the
underbody
7
1
8
4
2
3
1
