Kia Picanto
1317554A_EN
17
Coolant circuit
WARNING!
Any coolant running off should be collected in a suitable container. Install hoses so that they are kink-
free. Unless specified otherwise, always fasten using cable ties. Position clamps so that other hoses
cannot be damaged. The heater must be filled with coolant when installing the hoses.

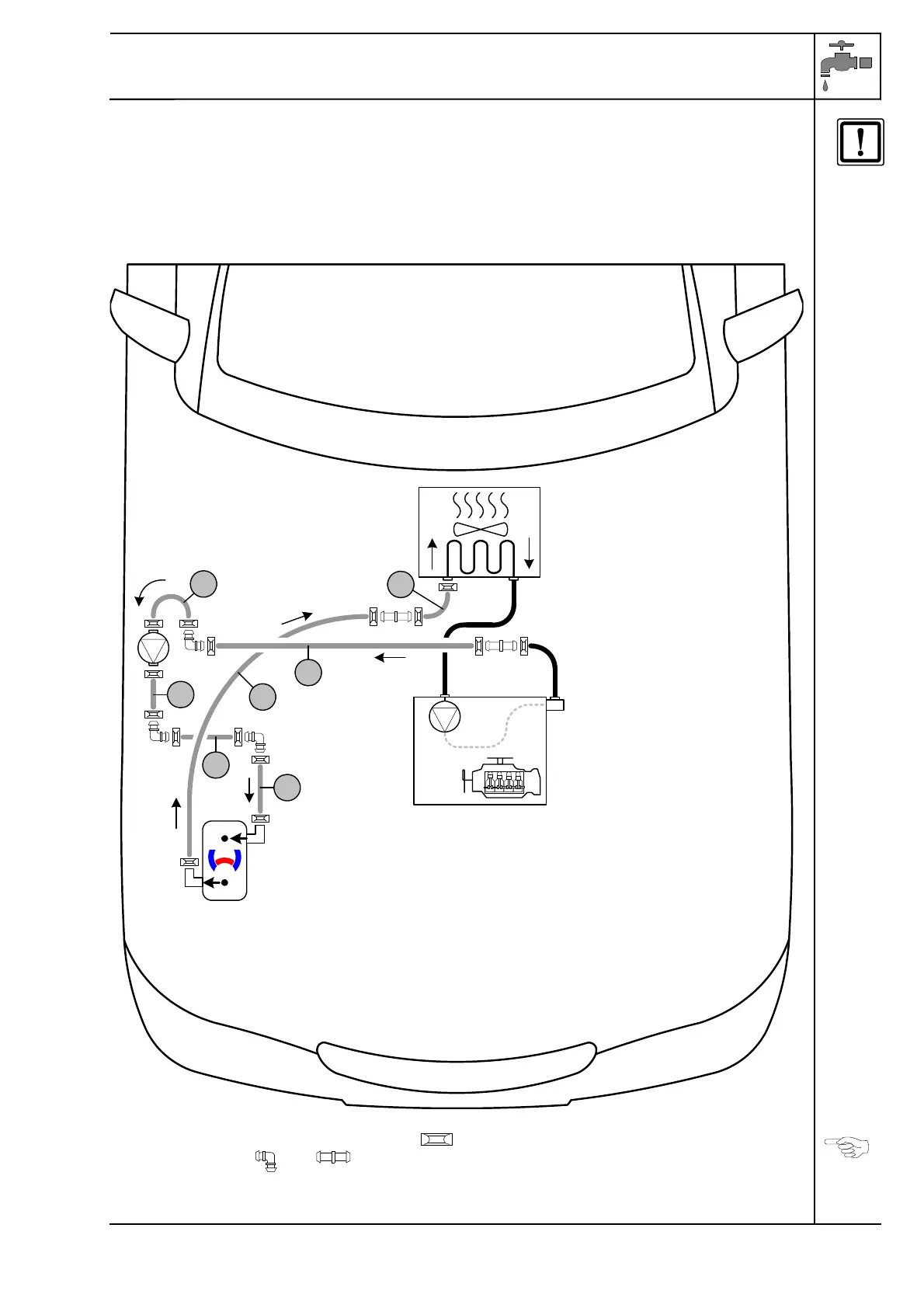

The connection should be "inline" based on the following diagram:
Hose in-
stallation
diagram
All spring clips without a specific designation = 25 mm dia.
All connecting pipes and = 18x18 mm dia.
