Kia Picanto
1317554A_EN
22
Fuel
CAUTION!
Open the vehicle's fuel tank cap, ventilate the tank and then re-close the tank lock.
Catch any fuel running off in a suitable container.
Install fuel line and metering pump wiring harness so that they are protected against stone impact. Un-
less specified otherwise, always fasten using cable ties.
Mount the fuel line and wiring harness with rub protection on sharp edges.
WARNING!
The fuel line and wiring harness are routed to the metering pump as shown in the wiring harness rout-
ing diagram.

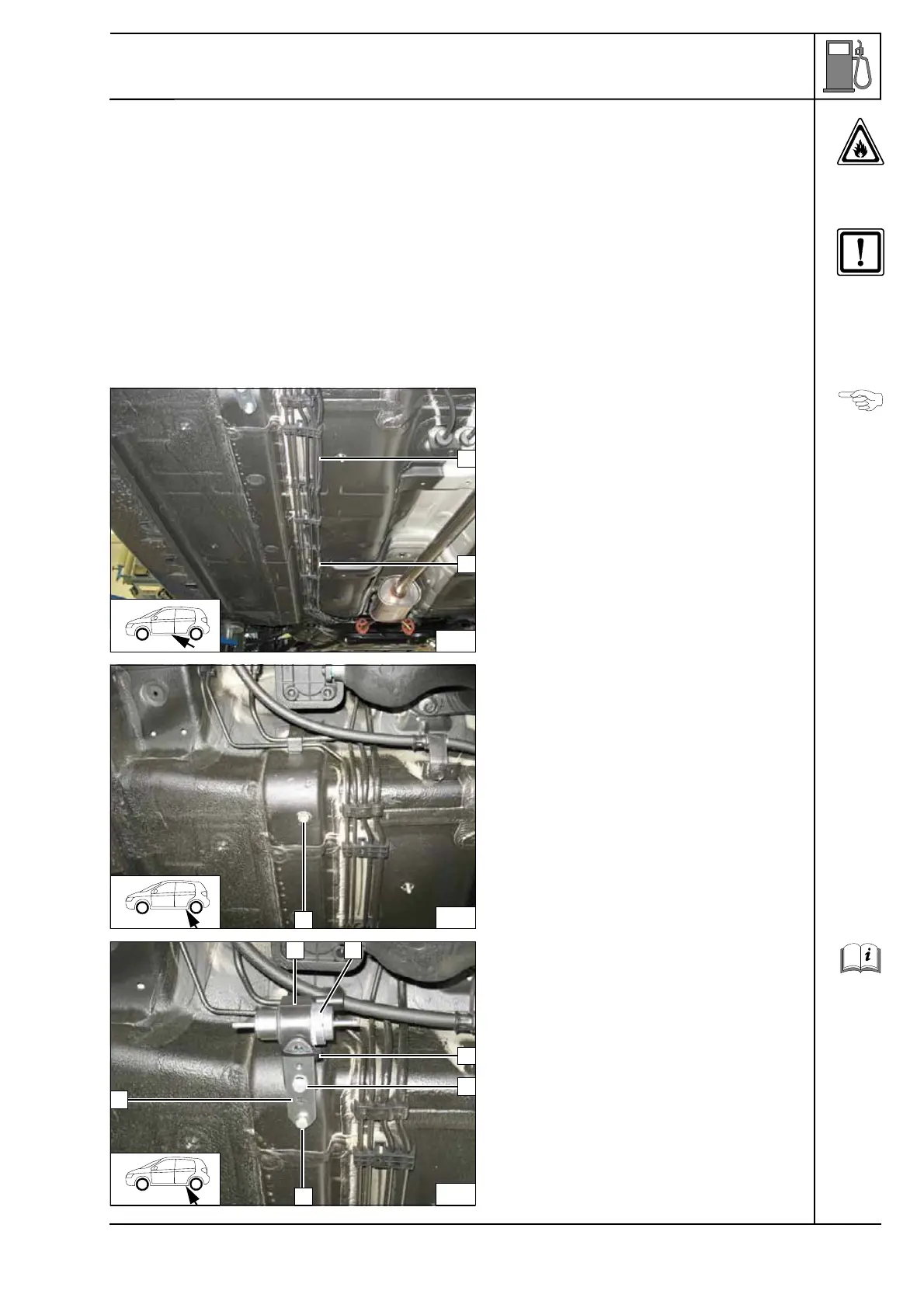

Route fuel line and wiring harness of meter-
ing pump in 10 mm dia. corrugated tube
1 to
the firewall of the underbody and further to
the installation location of the metering pump.
Routing
lines
1
Drill hole to 9.1 mm dia.; rivet nut
Installing
rivet nut
1
Mounting of metering pump
2 Metering pump
3 Cable tie
4 M6x25 bolt, flanged nut
5 M6x20 bolt, spring lockwasher
6 Perforated bracket
Mounting
metering
pump
