Webasto thermo top evo

Kia Picanto
1317554A_EN
23

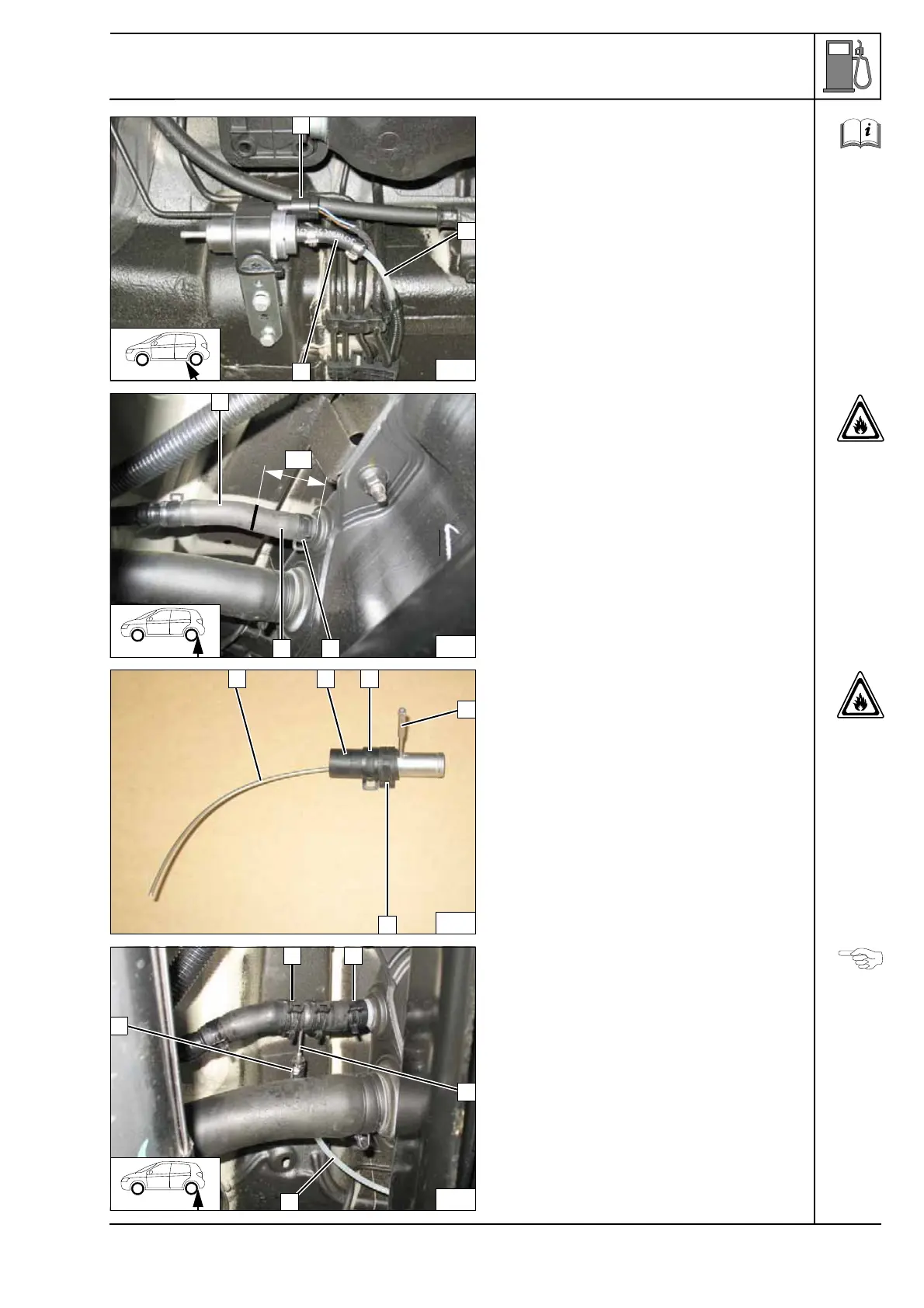

1 Wiring harness of metering pump, con-
nector mounted
2 Fuel line of heater
3 Hose section, 10 mm dia. clamp [2x]
Connect-
ing meter-
ing pump
Separate fuel-tank vent line 1 approx. 50mm
before the fuel tank connection piece. Re-
move hose section
3. Spring clip 2 will be re-
used.
Fuel ex-
traction
Shape fuel standpipe 1 according to template
and cut to length. Pay attention to the position
of the standpipe
4.
2 Hose section
3 Slide on original vehicle spring clip
4 25 mm dia. spring clip
Fuel ex-
traction
Align standpipe of fuel standpipe to the tank
floor.
1 25 mm dia. spring clip
2 Original vehicle spring clip
3 Fuel standpipe
4 Fuel line
5 Hose section, 10 mm dia. clamp [2x]
Installing
fuel stand-
pipe
