Webasto thermo top evo Installation

Kia Picanto
1317554A_EN
6

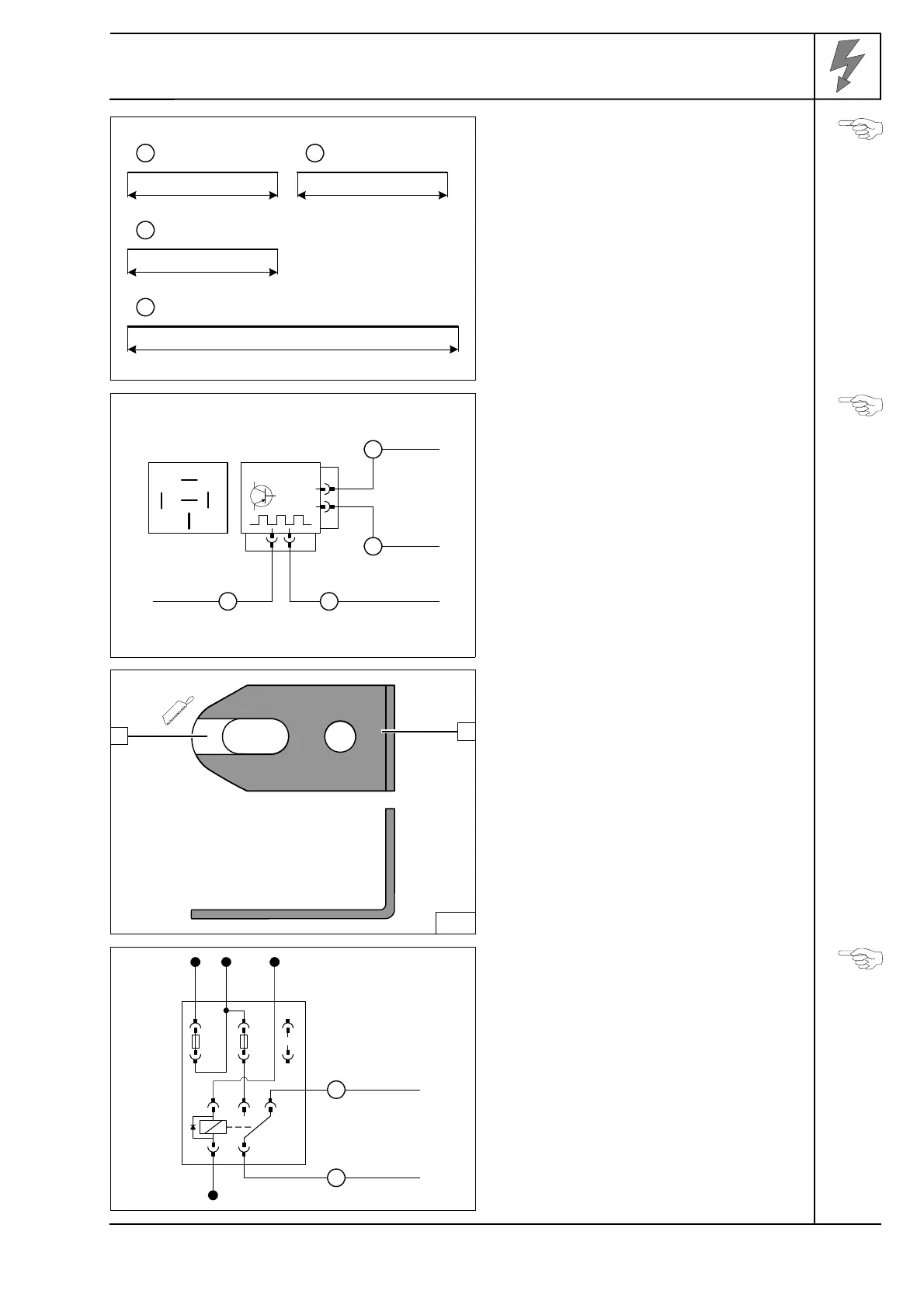

Preparing electrical system
Wire sections retain their numbering in the
entire document.
Preparing
lines
Connect wires to socket IPCU.
IPCU view on contact side.
The IPCU attached in the kit is pre-pro-
grammed with the following settings:
Duty cycle: 100%
Frequency: 14 kHz
Voltage: 3.6V
Function: High-side
The settings must be checked during the
function check on the vehicle and adjusted if
necessary.
Premount-
ing IPCU
1 Angle bracket
2 Discard section
Cutting off
angle
bracket
Produce connections as shown in wiring dia-
gram. Connect fan wiring harness to the K1
relay socket. Install F4 25 A fuse and K1 re-
lay.
Preparing
K1 relay
and F4
4
500
rt
0,5²
5
500
sw
0,5²
6
500
br
0,5²
3
1000
gn/ws
0,5²
86 85
A
E
IPCU
4
5
6
A
15
86
85
E
3
2
1
2
86
85 30
87a87
K1
gn/ws
0,75²
F4
br
0,5²
rt
4²
rt/sw
0,5²
F3
1
2
sw
4²
rt
4²
