Webasto thermo top evo

VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb
Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
10

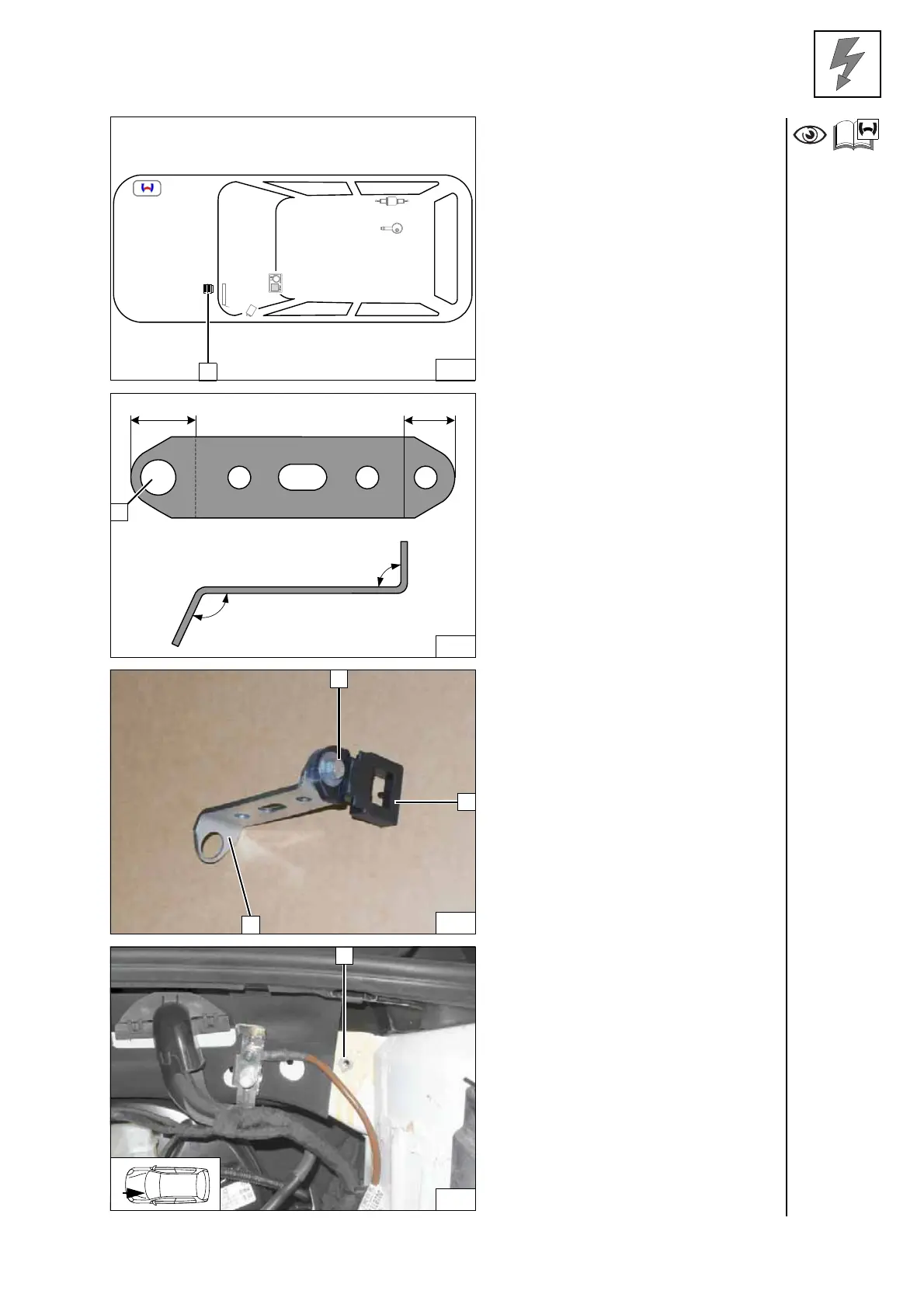

Preparing Electrical System
1 Engine compartment fuse holder
Installation
overview
1 Drill out hole to 12.5 mm dia.
Preparing
perforated
bracket
1 M5x16 bolt, washer [2x], nut
2 Fuse holder retaining plate
3 Perforated bracket
Premount-
ing engine
compart-
ment fuse
holder
1 Drill out existing hole to 9 mm dia., riv-
et nut
Installing
rivet nut
2
1
90°
115°
20
16
3
1
3
1
4
2
5
1
