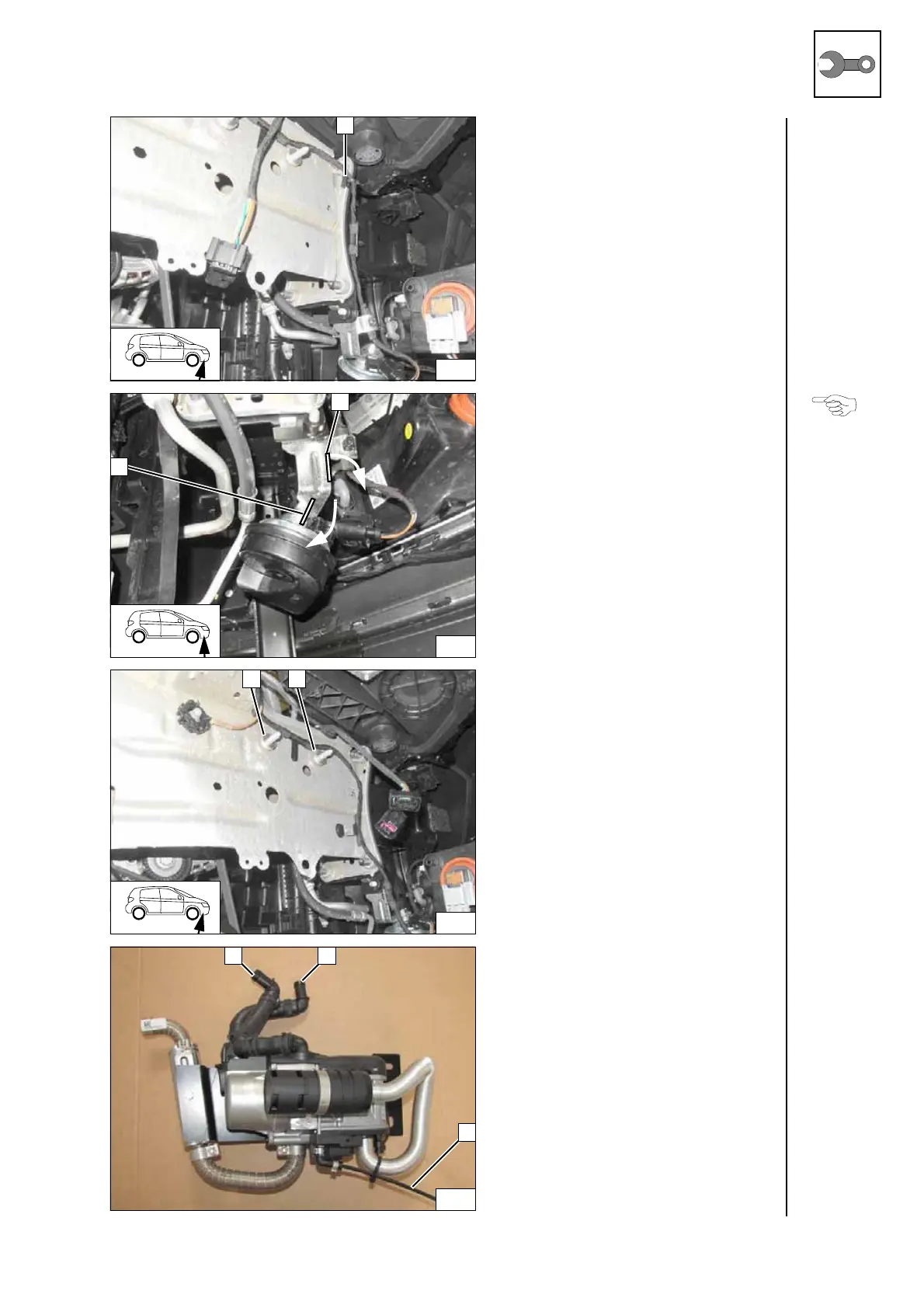

VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb
1 Edge clip cable tie
Fastening
wiring har-
ness
Passat
Angle down horn bracket at marking 1 by
90°.
Twist horn bracket at marking 2 by 20°.
Aligning
horn bracket
All vehicles
1 5mm spacer on original vehicle stud
bolt [2x]
Aligning
wiring har-
ness
Installing Heater Assembly
1 Connect heater outlet
2 Connect heater inlet
3 Fuel line
Heater as-
sembly
39
1
40
1
2
41
1 1
42
1
3
2
