Webasto thermo top evo

Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
36
VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb

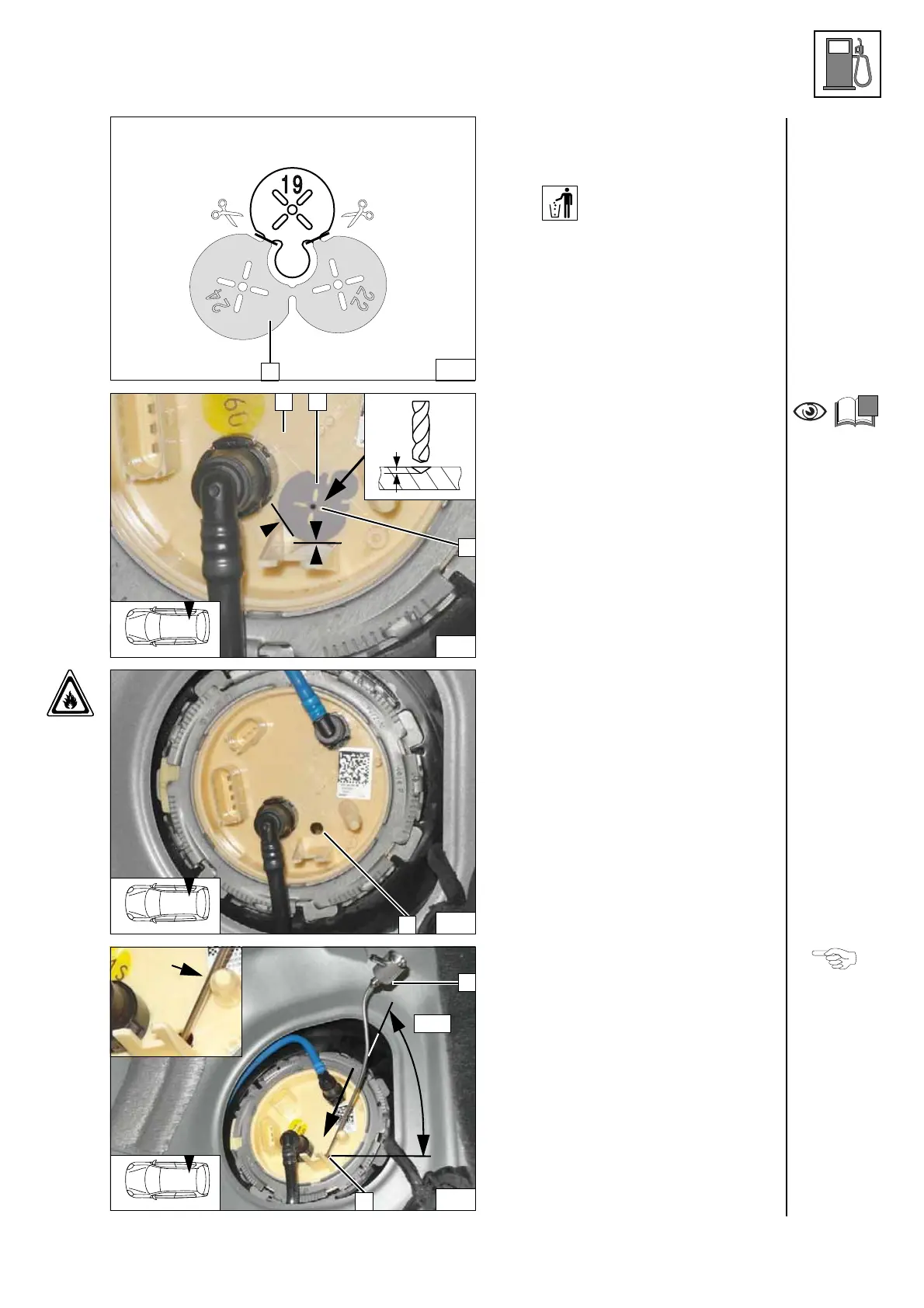

Installing FuelFix for Superb TDI
4x4
X =
Preparing
drilling tem-
plate
Work steps F1 and F2.
1 Fuel tank sending unit
2 Position 19mm dia. drilling template
as shown
3 2mm dia. centre hole
F
Copying
hole pattern
Work step F3.
1 Hole made with provided drill
Hole for
FuelFix
Work steps F4 and F5.
Bend FuelFix
1 according to template and
cut to length.
Insert into hole
2.
Inserting
FuelFix
100
X
1 2
19
3
101
Ø2
max. 1,5
102
1
103
1
!
~70°
2
