Webasto thermo top evo

VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb
Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
16

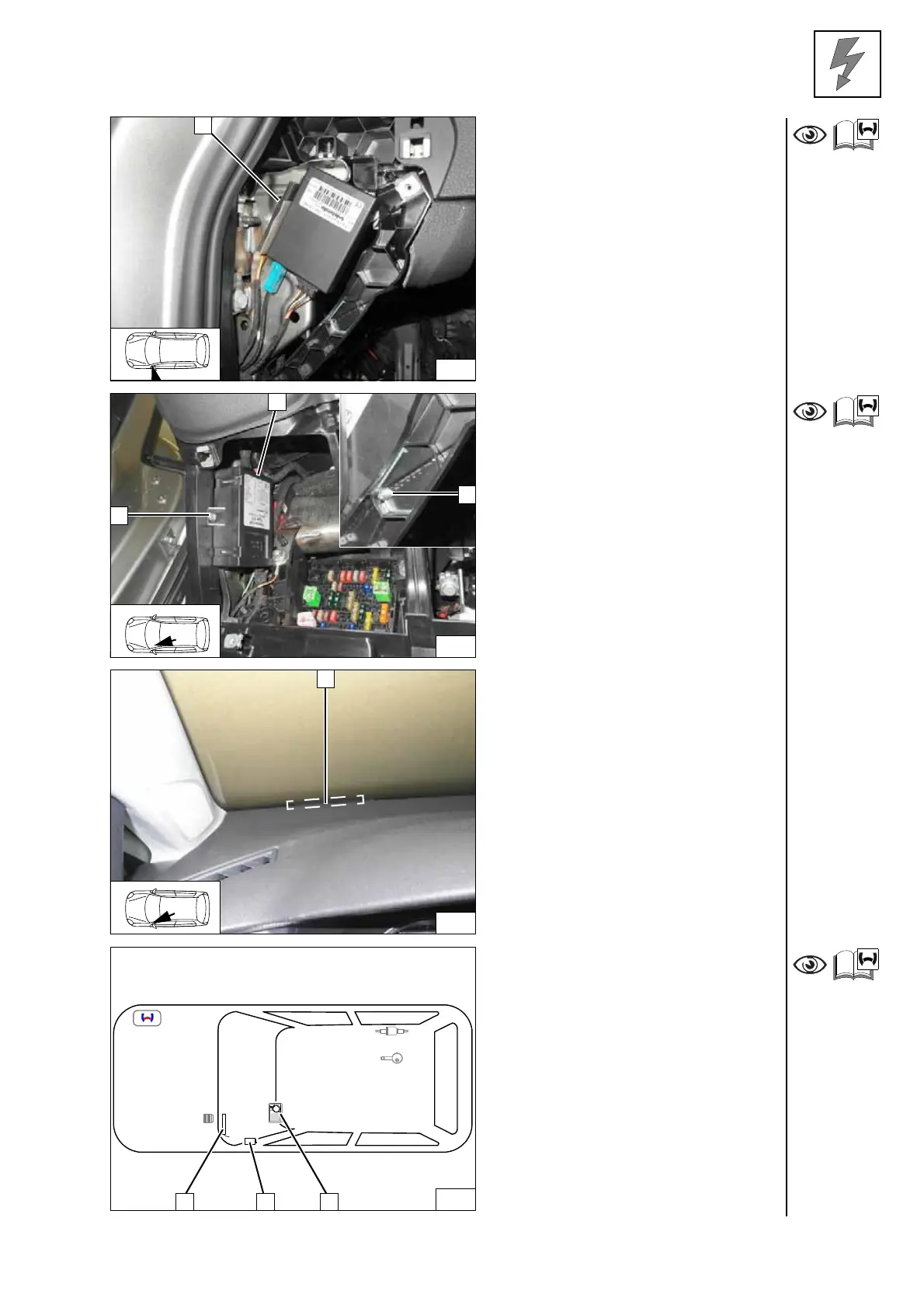

Temperature sensor T100 HTM
Fasten temperature sensor 1 with double-
sided adhesive tape.
Installing
temperature
sensor
ThermoCall Option
1 Receiver
2 2.5 mm dia. hole, 5.5x9.5 mm self-
tapping screw
Installing
receiver
1 Aerial
Installing
aerial
Passat/ Superb Heater Controls
1 MultiControl CAR
2 Telestart / ThermoCall receiver
3 Telestart / ThermoCall aerial
Installation
overview
23
1
1
24
2
2
1
25
26
3 2 1
