Webasto thermo top evo

Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
39
VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb
All vehicles
Version 1

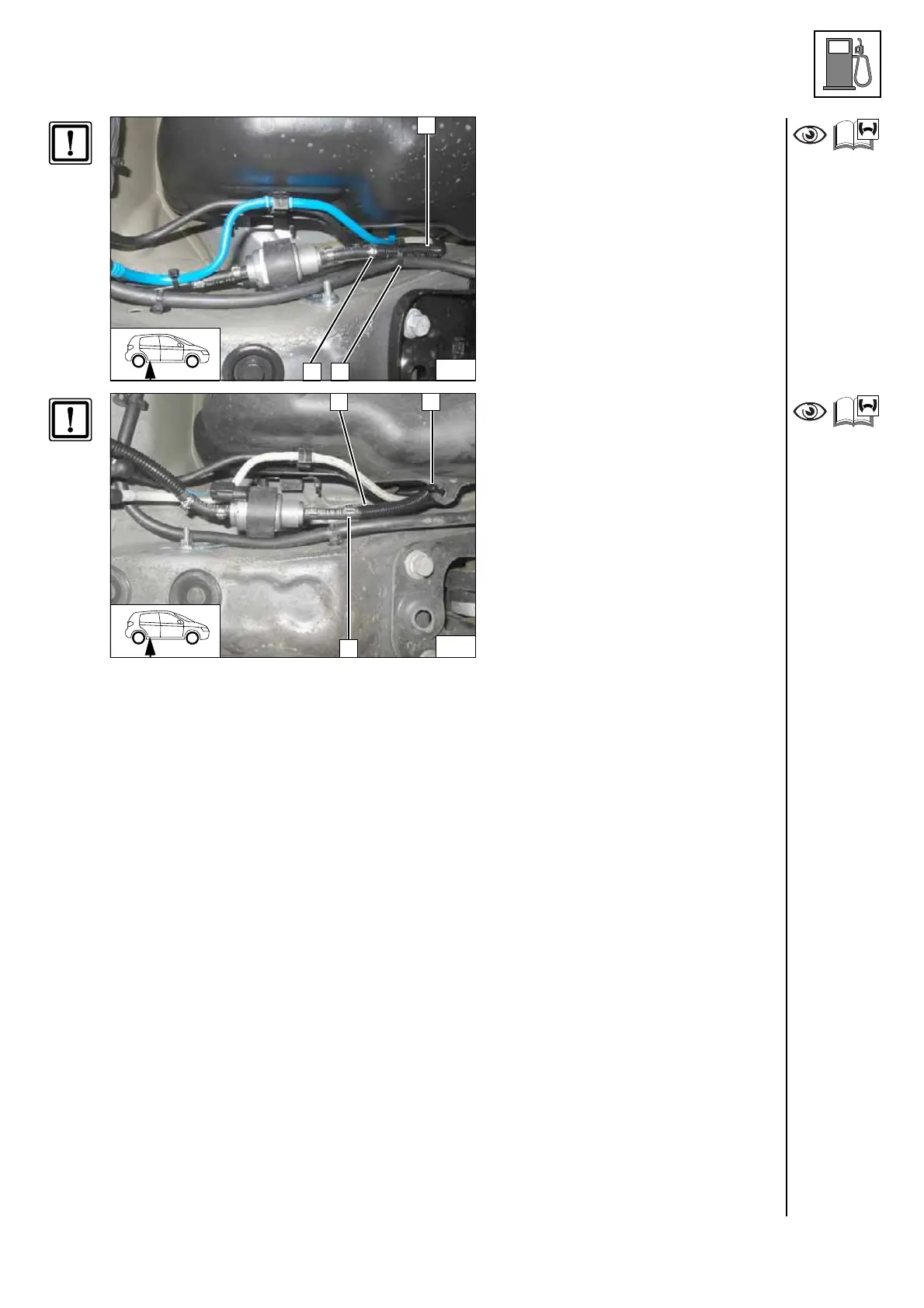

Slide 10 mm dia. corrugated tube 1 onto
fuel line. Check the position of the compo-
nents; adjust if necessary. Check that they
have freedom of movement.
2 Cable tie as tension relief
3 FuelFix fuel line, 10mm dia. clamp
Connect-
ing meter-
ing pump
Version 2
Slide 10 mm dia. corrugated tube 1 onto
fuel line. Check the position of the compo-
nents; adjust if necessary. Check that they
have freedom of movement.
2 Cable tie as tension relief
3 FuelFix fuel line, 10mm dia. clamp [2x]
Connect-
ing meter-
ing pump
112
1
3 2
113
1
3
2
