Webasto thermo top evo

VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb
Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
12
Electrical System

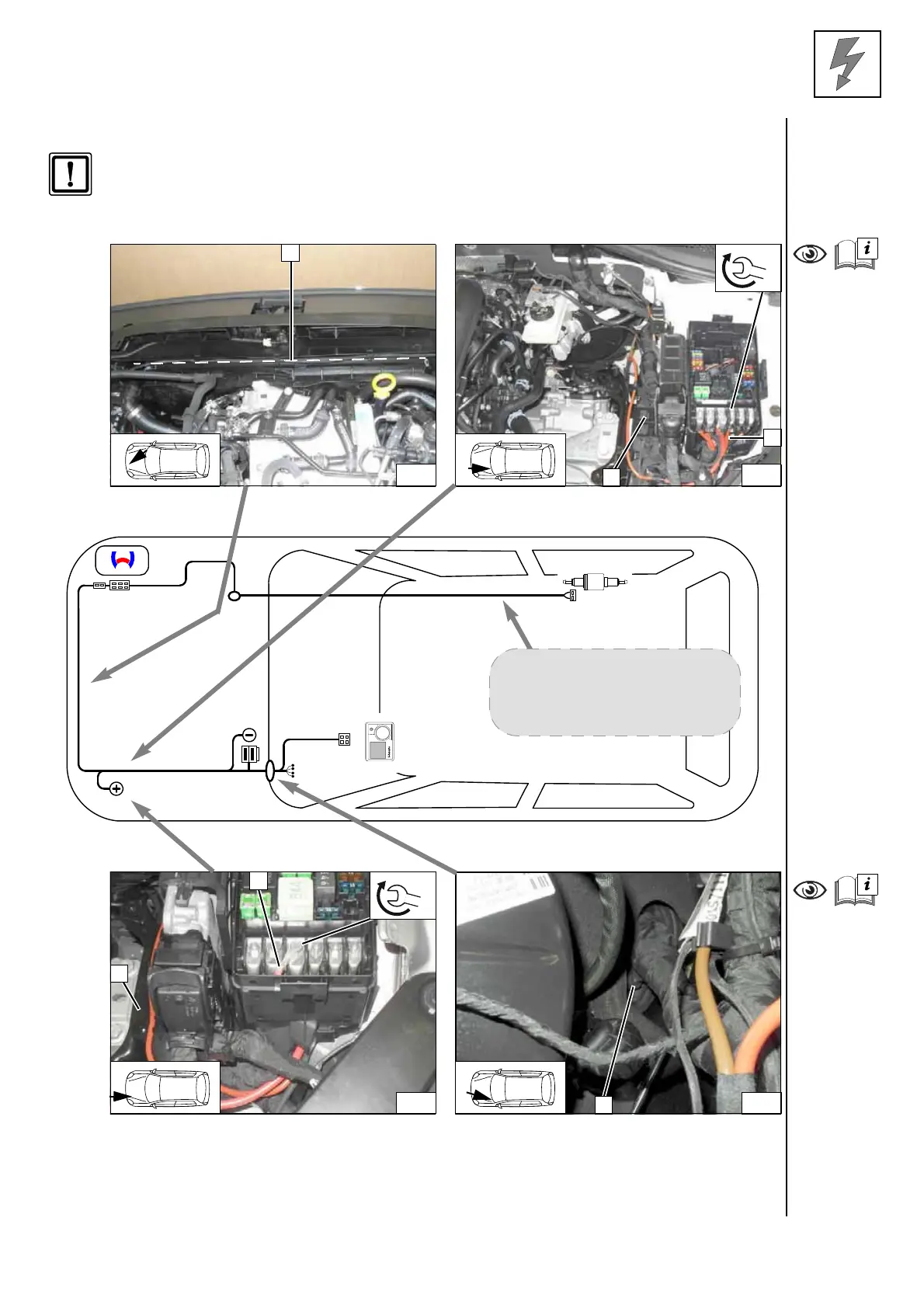

Wiring Harness Routing
Route heater wiring harness below the cover
along the marking to the installation location of
the heater and fasten using retaining clamp
1 [3x].
Positive wire for Golf VII / Golf VII Sportsvan
1 Positive wire on positive distributor
2 Wiring harnesses in original vehicle line
duct
Wiring har-
ness routing
diagram
Positive wire for Passat / Superb
1 Positive wire on positive distributor
2 Wiring harnesses in original vehicle line
duct
Wiring harness pass through
Route heater wiring harnesses and heater con-
trol through protective rubber plug 1 to the pas-
senger compartment.
8
1
9
1
2
Nm
!
Route the metering pump wiring
harness later, together with the
fuel line, along the original vehi-
cle fuel lines on the underbody.
10
1
Nm
!
2
11
1
