Webasto thermo top evo

Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
19
VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb

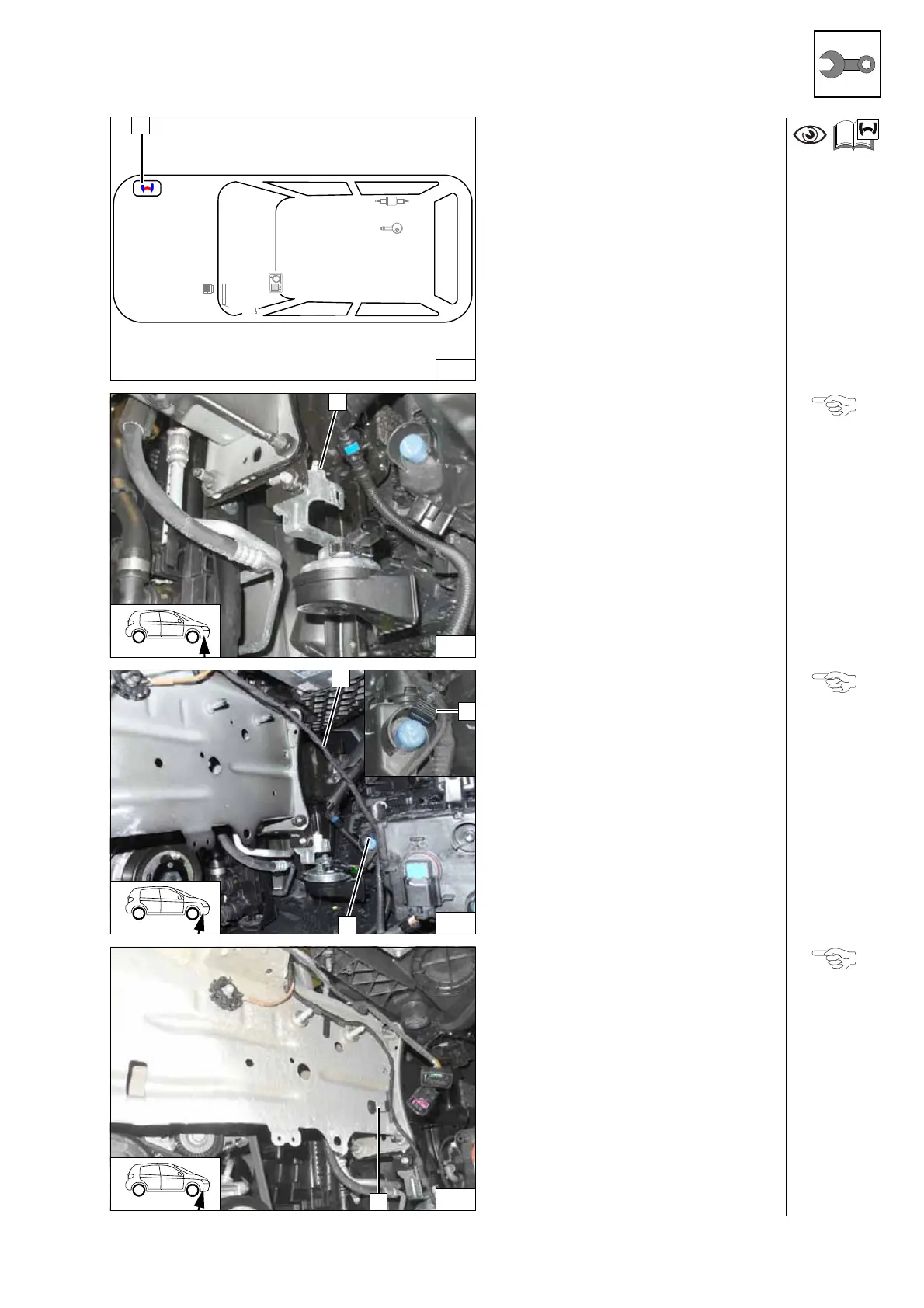

Preparing Installation Location
1 Heater assembly
Installation
overview
Angle down horn bracket 1 by 180° as
shown.
Aligning
horn bracket
Golf VII / Golf VII Sportsvan
Deconnect original vehicle wiring harness
1, route as shown and secure using edge
clip cable tie 2.
Aligning
wiring har-
ness
Passat / Superb
Detach retaining clip 1 with original vehicle
wiring harness.
Aligning
wiring har-
ness
35
1
36
1
37
2
1
2
38
1
