Webasto thermo top evo

Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
52
VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb

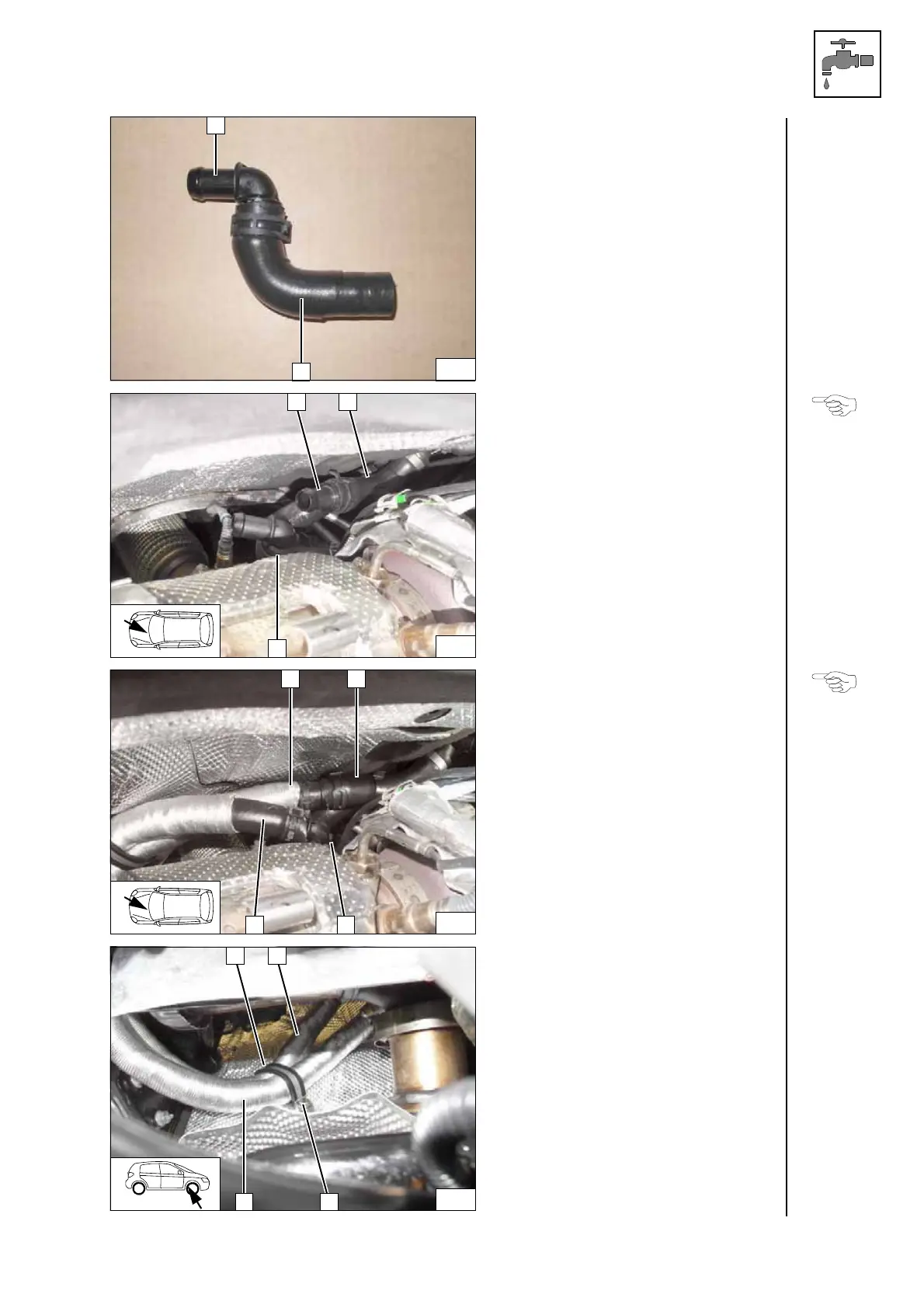

1 90°, 18x20mm dia. connecting pipe,
27mm dia. spring clip
2 Engine outlet hose section
Preparing
engine out-
let hose
section
Install hose section of engine outlet 3 with
original vehicle spring clip on engine out-
let.
1 18x20mm dia. connecting pipe,
27mm dia. spring clip
2 Heat exchanger inlet hose section
Installing
engine out-
let hose
section
Slide one 600mm long heat protection
hose each onto hoses
A and F.
1 Heat exchanger inlet hose section
2 Original vehicle spring clip
Connect-
ing engine
outlet / heat
exchanger
inlet
1
48 mm dia. rubber-coated p-clamp
2 M6x20 bolt, spring lockwasher
Fastening on
firewall
149
2
1
150
3
1 2
151
A
1
2
F
A
152
2
1
F
