WebGate HS1600F-D - Page 11

10
part name
function description
8
Channel Input
Camera input BNC port for 1080P, 720P, 960H, NTSC/PAL, DR cameras
9
HDMI Output
HDMI monitor connection output port
10
Ethernet
Ethernet : network connecting terminal (RJ-45)
11
VGA Output
VGA monitor connection output port.

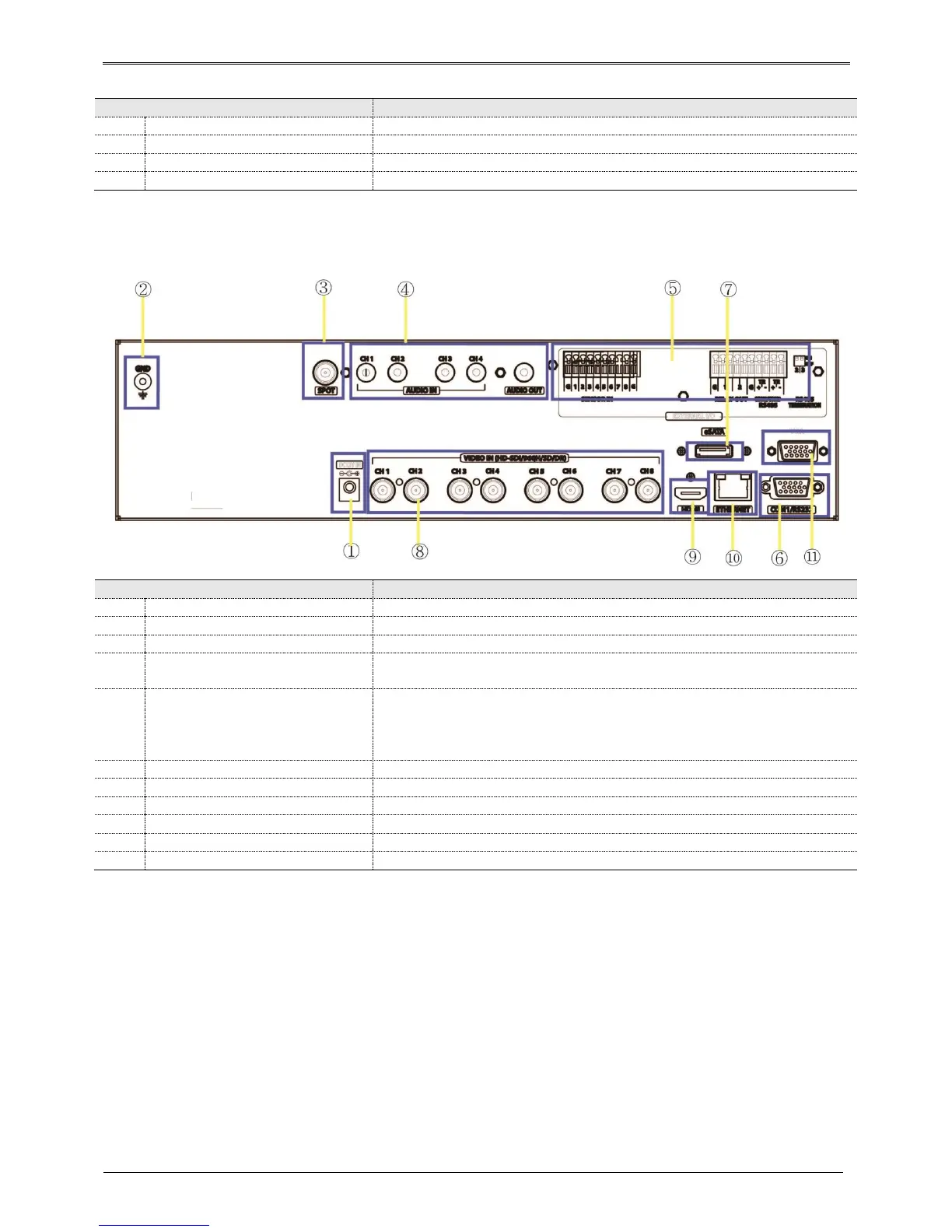

HSC801F-D
Rear view
part name
function description
1
Power Input
Connection socket for DC 12V power code
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485
terminating resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB
7
eSATA port
For connection with external eSATA HDD.
8
Channel Input
Camera input BNC port for 1080P, 720P, 960H, NTSC/PAL, DR cameras
9
HDMI Output
HDMI monitor connection output port
10
Ethernet
Ethernet : network connecting terminal (RJ-45)
11
VGA Output
VGA monitor connection output port.
