Product Description
HS1600F-D

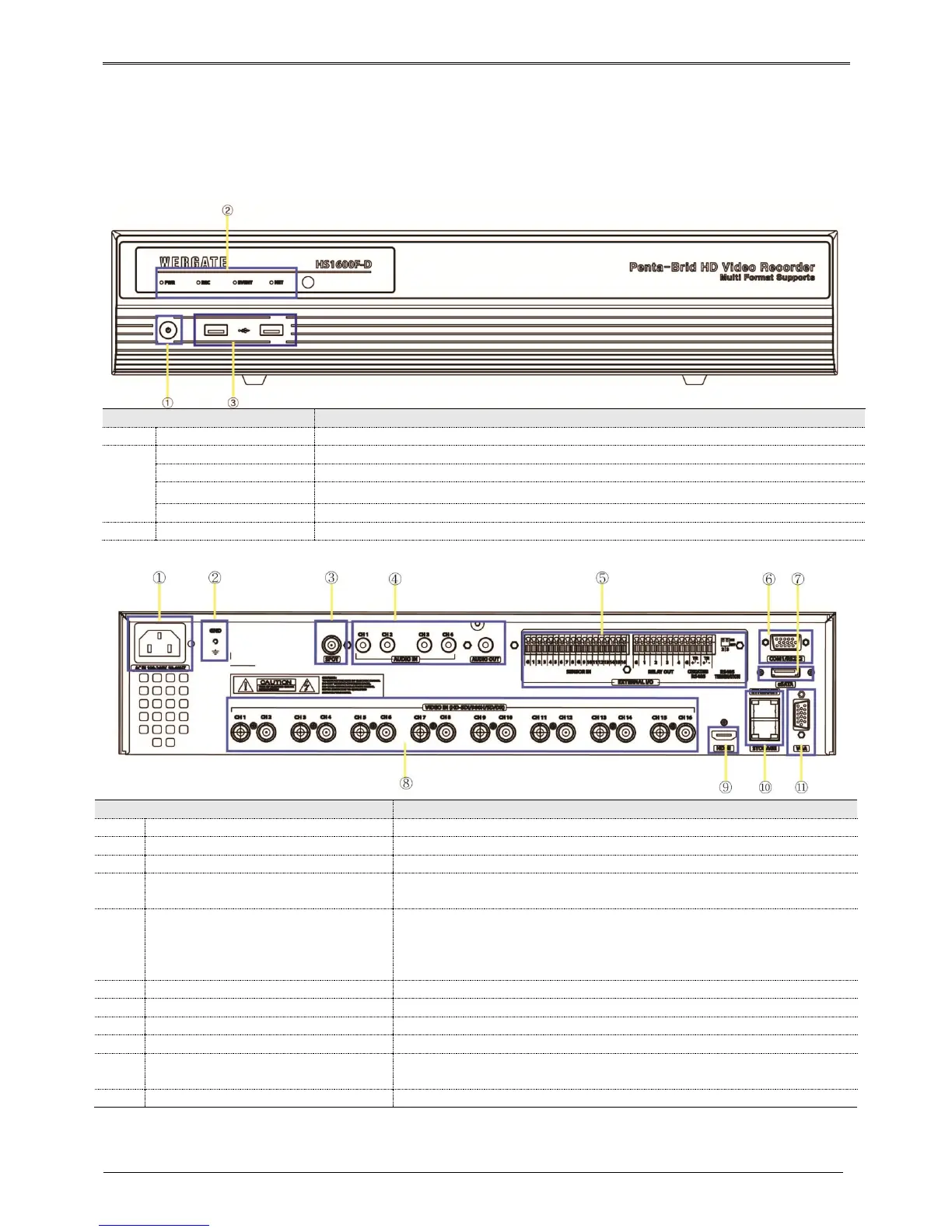

Front view
part name
function description
1
Power
turns ON/OFF the power
2
PWR
It turns on when power is ON
REC
Shows record status while recording
EVENT
Turns on if event is triggered
NET
Shows network connection status and it flickers if network is connected
3
USB port
USB port for flash memory or mouse.
Rear view
part name
function description
1
Power Input
AC100V~AC240V power cord socket
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485 terminating
resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB
7
eSATA port
For connection with external eSATA HDD.
8
Channel Input
Camera input BNC port for 1080P, 720P, 960H, NTSC/PAL, DR cameras
9
HDMI Output
HDMI monitor connection output port
10
Ethernet, Storage
Ethernet : network connecting terminal (RJ-45)
Storage : Exclusive network storage device(NS04R) is connected and used.
11
VGA Output
VGA monitor connection output port.
