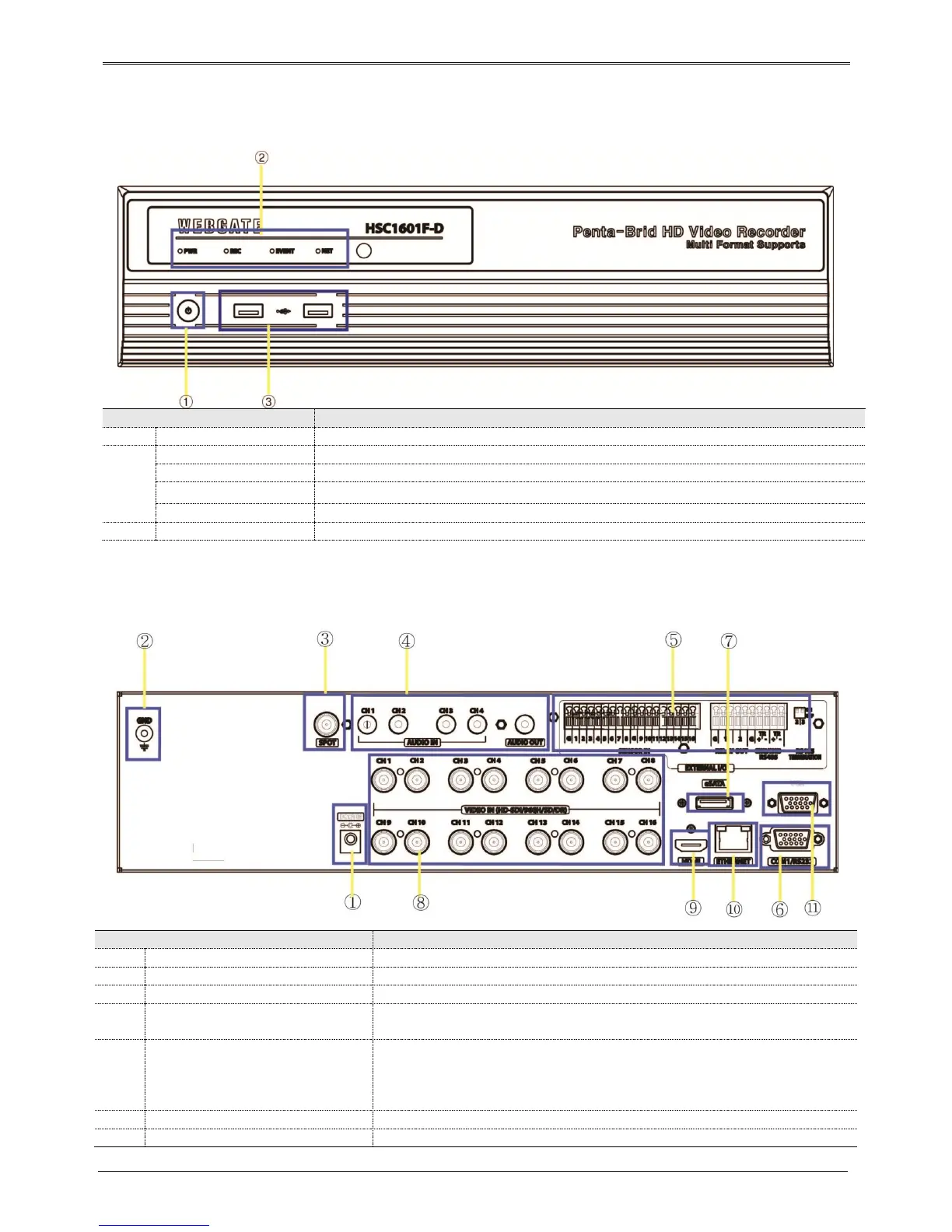

WebGate HS1600F-D - Front View; Rear View

9
HSC1601F-D / HSC801F-D
Front view
part name
function description
1
Power
turns ON/OFF the power
2
PWR
It turns on when power is ON
REC
Shows record status while recording.
EVENT
Turns on if event is triggered
NET
Shows network connection status and it flickers if network is connected
3
USB port
USB port for flash memory or mouse.
HSC1601F-D
Rear view
part name
function description
1
Power Input
Connection socket for DC 12V power code
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485
terminating resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB
7
eSATA port
For connection with external eSATA HDD.
