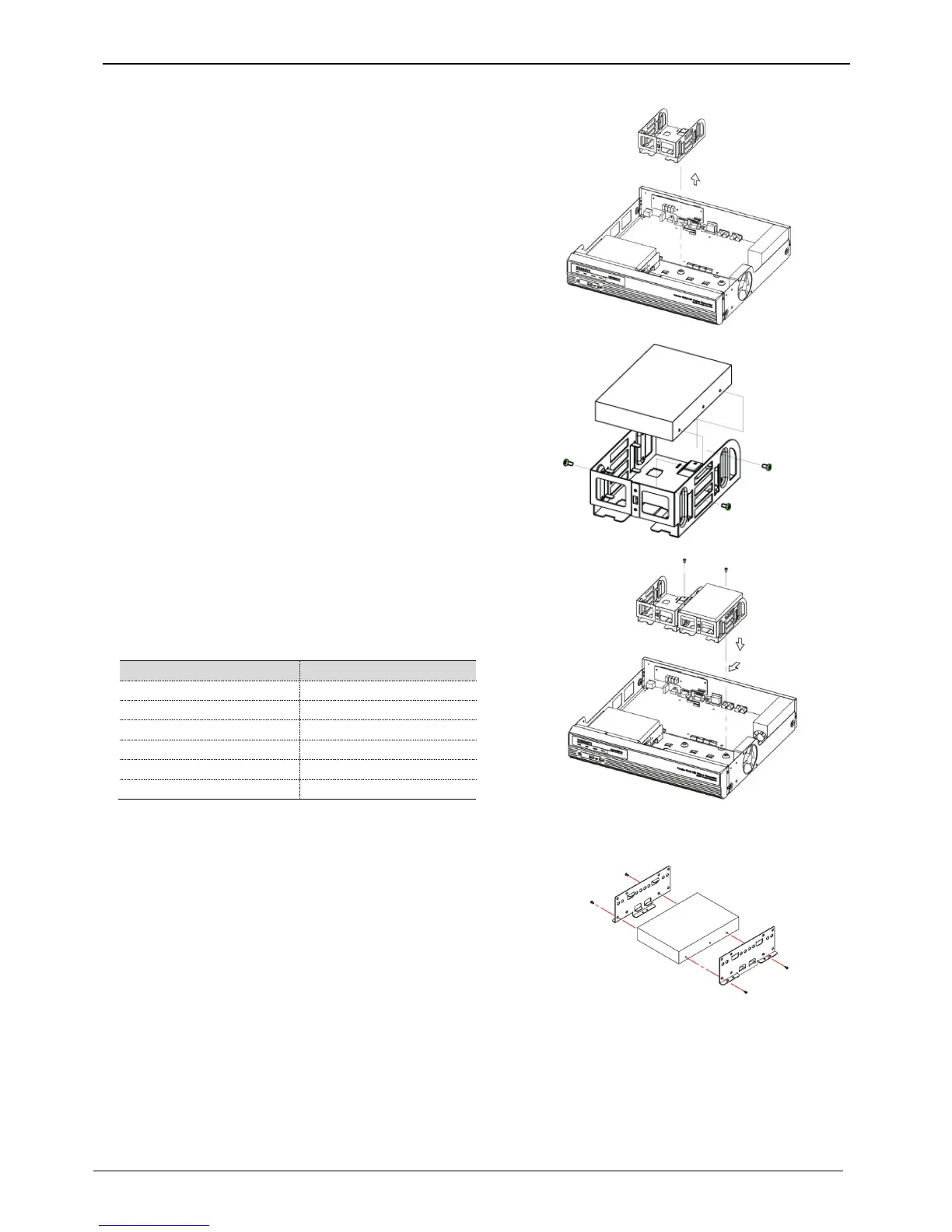

1. Lift HDD bracket to a direction shown in the right picture and
separate from the bottom.
2. Place HDD in a HDD bracket and fasten 4 screws on each side.
3. Place HDD bracket fastened with screws in DVR and fasten it on
the bottom with screws.
<Note>
Below is SATA cable socket sequence of a mainbaord.
Up to 5 HDDs can be installed inside DVR.
Main Board
Disk Manager
INT A
INT A
INT B
INT B
INT C
INT C
INT D
INT D
INT E
INT E
eSATA
eSATA
HSC1601F-D / HSC801F-D
1. Tighten the both side of HDD bracket using screws.
