Port
Choose one of COM2/COM3/CoC*.
Device
Select a device that is connected to the port.
Address
Select the device’s address that is connected to the port.
Baudrate
Select the device’s baudrate that is connected to the port.
* Please refer to page 5 for PoC/CoC

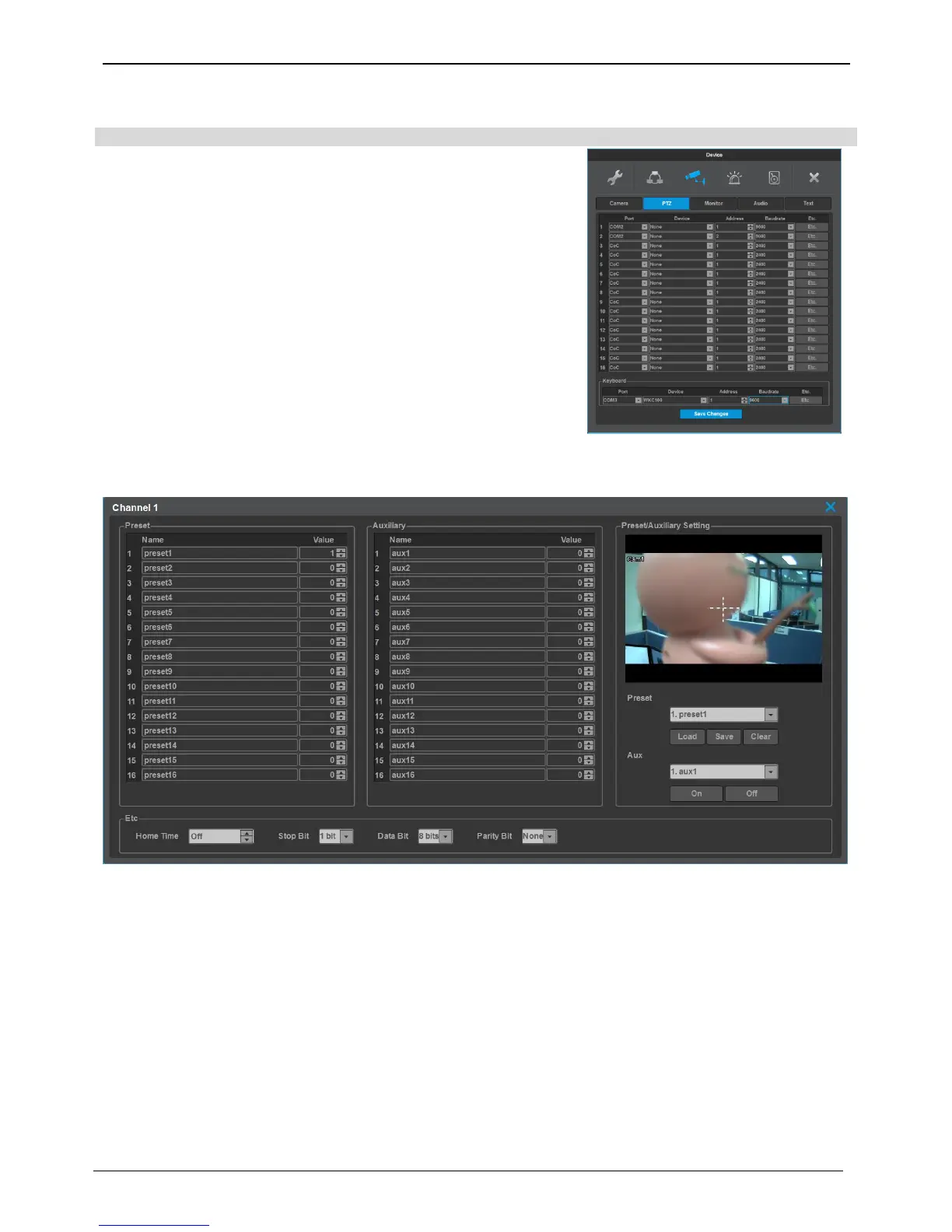

PTZ ETC
Preset, Auxiliary and home time can be set up
Preset / Auxiliary
Name and value of preset can be set. Up to 16 presets/auxiliaries can be registered.
Etc
• Home time: In case there is not PTZ control for the selected interval, it moves to PTZ home that was
previsouly set in PTZ camera.
• Parity bit/Stop bit/Data bit: Apply the same configuration as configurations of external device
Preset/Auxiliary Setting
• Preset: Load the selected preset, save or delete preset
• Auxiliary: Turn on or off the selected AUX
<Notice>
COM1 is fixed with RS-232C and COM2/COM3 are fixed with RS-485
