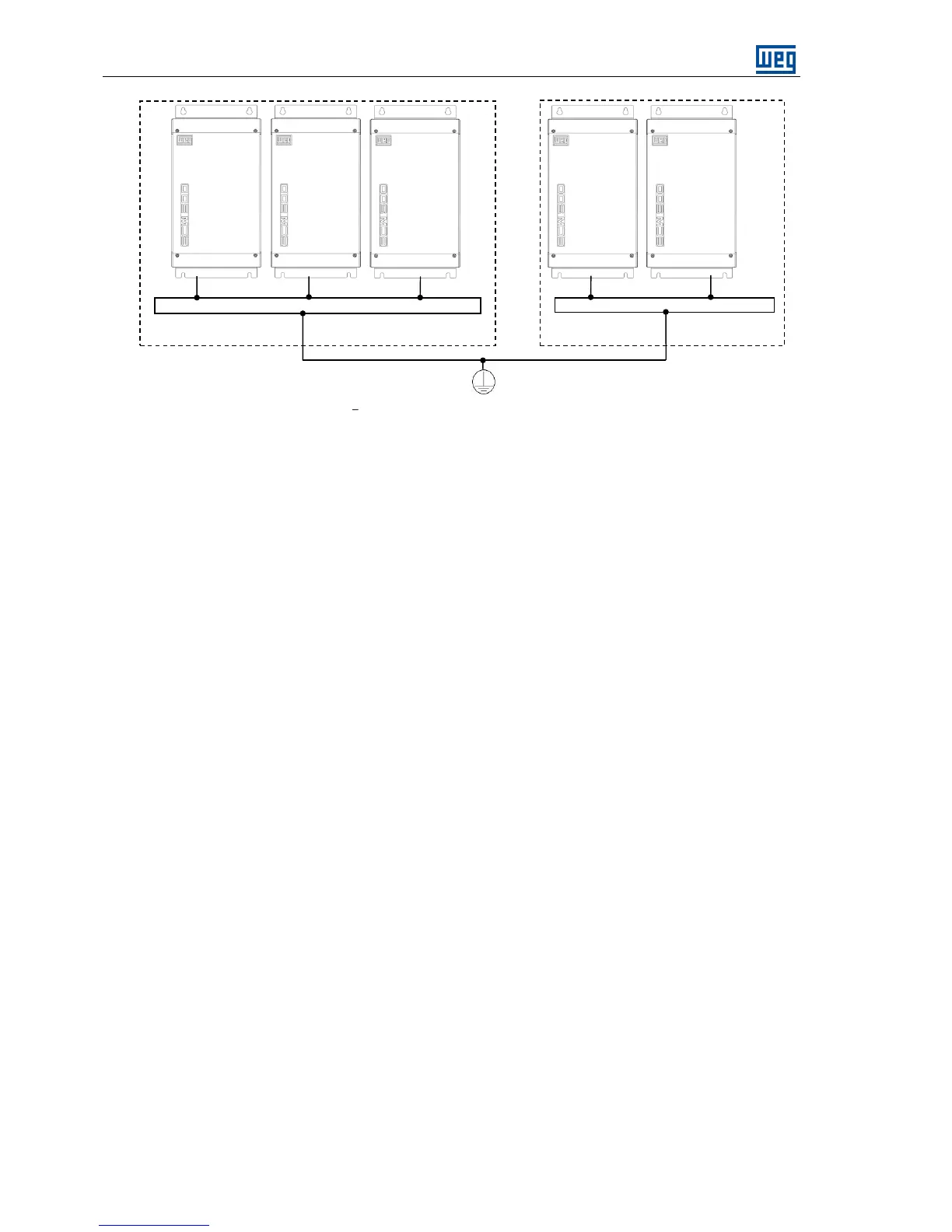

Figure 5.5 Grounding connection for more than one ECW500
5.3.4 Control Connections
The control connections of the ECW500 (analog inputs/output, digital inputs/outputs) are made at terminals 1 to
36 and 52 to 75, located at the side of the product.
The typical control functions and connections are shown in Figure 5.6.
Grounding bar inside the
panel
