Functional Description .
ECW500 | 33

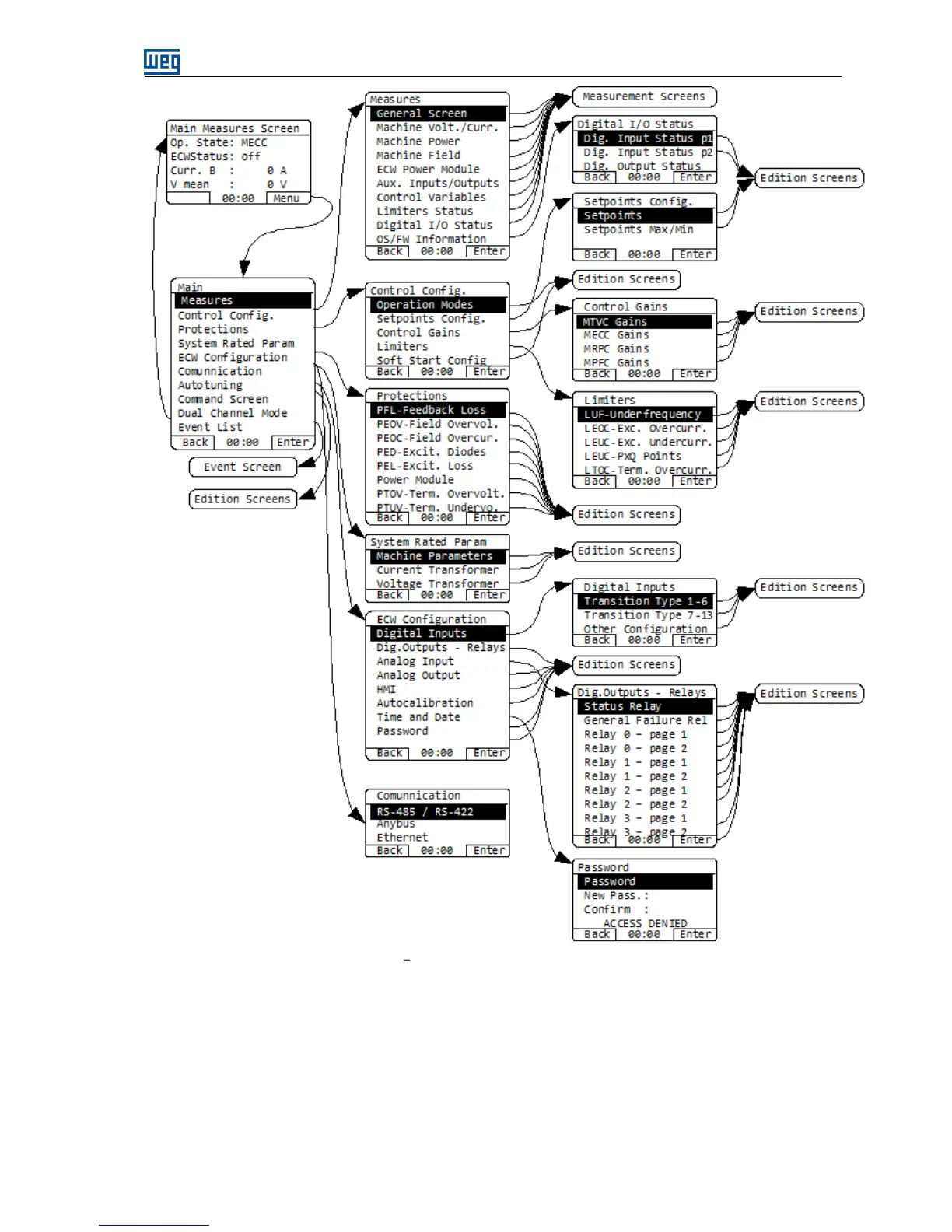

Figure 6.2 Full navigation tree of parameters through HMI
6.1.1 Measurement Screens
The measurement screens have the profile shown below. In each line, there is a variable with its description, a
number with 4 digits and a comma and then the measurement unit. On the measurement screen, the only
available button is the return to the previous screen (Back).
