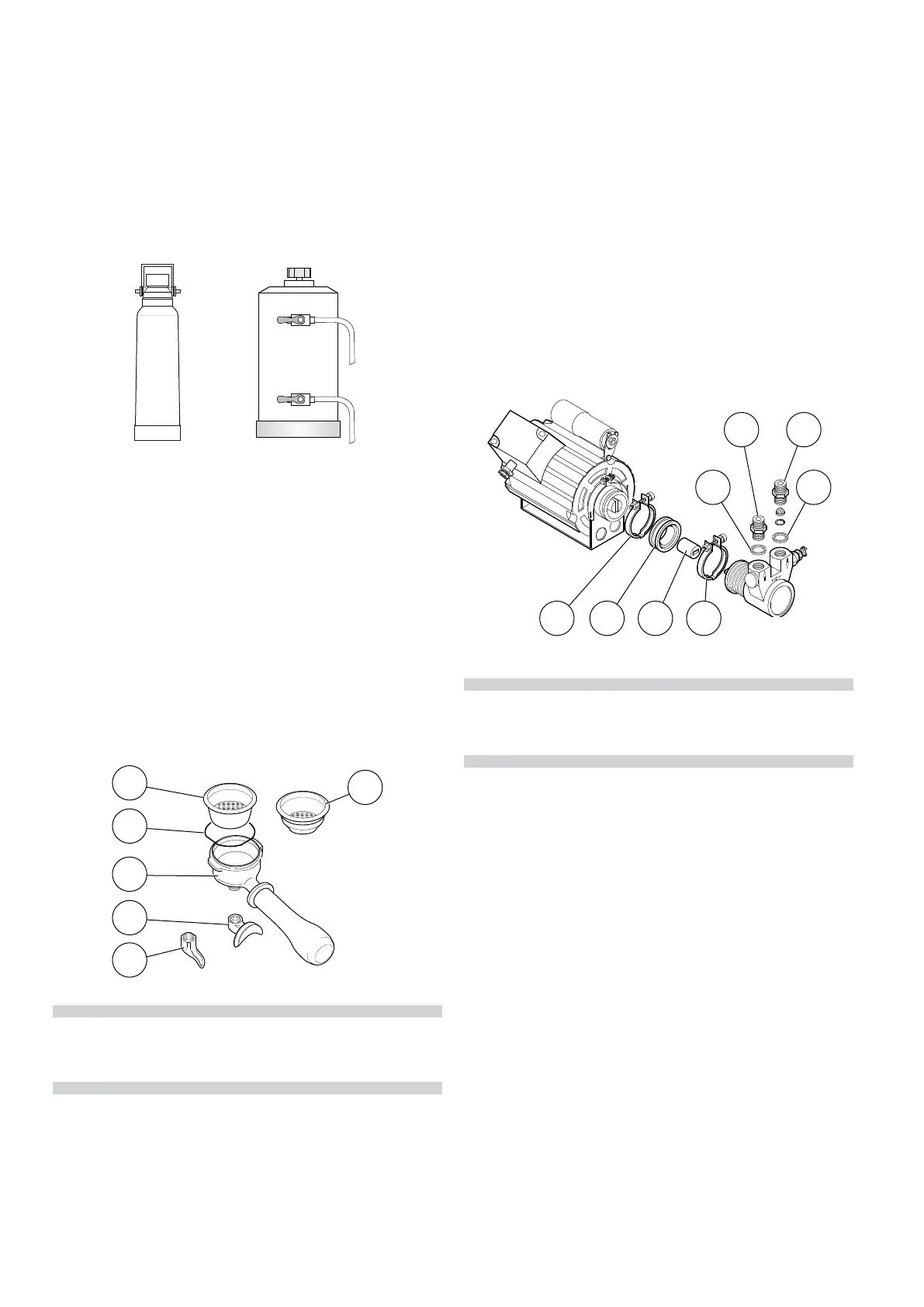

2.2 Equipment preparation
Softener
On request, an automatic resin softener is supplied.
For further information, refer to chapter "Softeners".
Motor pump (only for version 1GR)
For the machines with an external motor, it is
necessary to prepare the pump and the motor.
Assemble the 3/8 gas connection with the inlet lter
(2) of the pump (arrow ) and the plain 3/8 outlet gas
connection (1) of the pump (arrow ).
Use the special washers (3) provided for sealing
purposes.
To correctly couple the pump and motor, use the
appropriate joint
(4)
and the spacer ring
(5),
lock
everything with the two clamps
(6).
The pump and motor joint has to be installed also on
the machines with an internal motor pump.
Filter holder
In the housing of the lter holder (1) place the spring
to stop the lter (2). Take the two cups (3) or one-cup (4)
lter and press it rmly into the lter holder.
Spouts
Complete the lter holder by installing the 2 cups (6)
or one-cup (5) spout.
!
Install the connection with the inlet lter (2) of
the pump (arrow ).
i
Install the spout with relative lter: one-cup spout
on one-cup lter holder or with one-cup lter, etc...
6
3
2
3
1
456
5
4
1
2
3
6
