Wega Mininova Use And Maintenance Manual For The Technician

43
Technical manual
ENGLISH
NERO
C:0 M:0 Y:0 K:100
ROSSO
C:0 M:100 Y:100 K:0
VERDE
C:100 M:0 Y:100 K:0

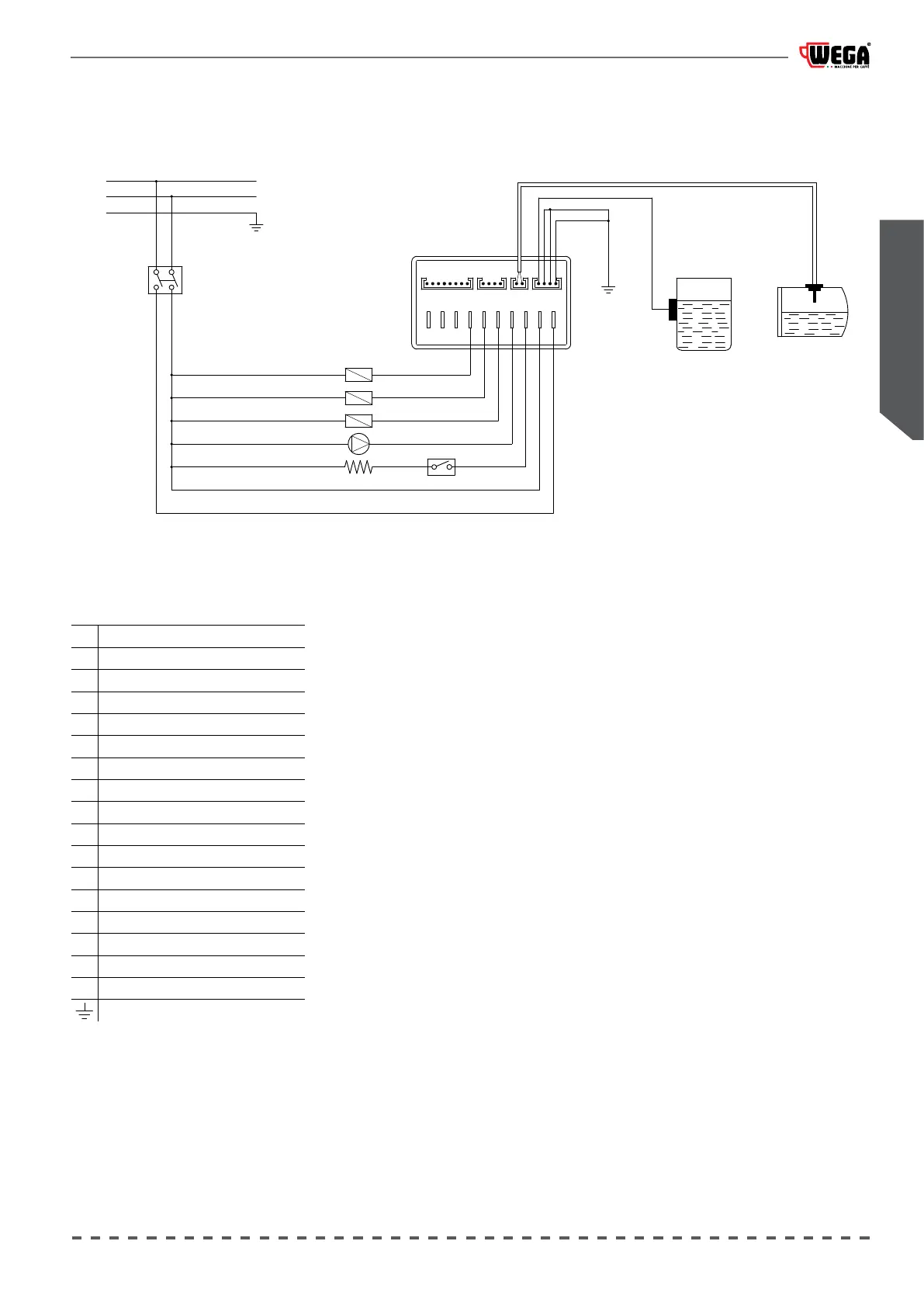

25.2 Electrical scheme version 1GR EVD
N
F
PUL TE
SM
IA
10 9 8 7 6 5 4 3 2 1
EVG
EVT
EVA
PO
RE SA
NTC
SER
CAL
CAL Boiler
EVA Solenoid valve A.E.A.
EVG Group solenoid valve
EVT Thè solenoid valve
F Phase
IA Main switch
LAR Electric resistance power indicator lamp
MFC Control unit
MG Micro-switch group (version EMA)
MP Pump
N Neutral
PR Pressure switch
RE Boiler resistance
SA Resistance saving
SER Inner tank
SLC Boiler level probe
SM Tank magnetic probe
Ground
PR
SA
RE
CO
CT
120V
PR
SA
CO
CT
RE
240V
230V
PR
SA
CO
CT
RE
400V
R (L1)
N (L2)
MA
BL GV
CAB
MA
BL
R
S
T
CAB
MA
BL
MA
NE BL GV
R
S
T
N
MA
NEBL GVGR
CAB
MA
BL
CO
IN
R (L1)
N (L2)
MA
BL GV
CAB
R (L1)
N (L2)
MA
BL GV
CAB
13 9 5
1
3
71115
16 12 8
4
2
610
14
13 9 5
1
3
71115
16 12 8
4
2
610
14
13 9 5
1
3
71115
16 12 8
4
2
610
14
13 9 5
1
3
71115
16 12 8
4
2
610
14
S/L2 R/L1
U/T1V/T2
