Wega Mininova Use And Maintenance Manual For The Technician

17
Technical manual
ENGLISH
NERO
C:0 M:0 Y:0 K:100
ROSSO
C:0 M:100 Y:100 K:0
VERDE
C:100 M:0 Y:100 K:0
!
The water supply of the appliance must be carried
out with water which is suitable for human
consumption, in compliance with the regulations in
force in the place of installation. The installer must
receive, from the owner/manager of the system,
conrmation that the water meets the above listed
requirements.
In case of supply from the tank, don't use carbonated
water or other liquids.
!
During the installation of the appliance, only
the components and materials supplied with
the appliance are to be used. Should the
use of other components be necessary, the
installer must verify their suitability to be
used in contact with water used for human
consumption. The installer must carry out the
hydraulic connections in accordance with the
hygiene norms and the hydraulic safety norms
for environmental protection in force in the
place of installation.
!
The hydraulic connection must be made in
compliance with local national standards. In case
of use of an external tank: the connection hose
between the machine and the tank can't be longer
than 150 cm. For the European Community: both
for the hydraulic connection to the water supply,
and for the connection to an external tank, it is
necessary to place a non-return valve (10) on the
machine as set forth by EN 1717 standards.
!
FOR THE U.S.A.
The water connections and discharges must be
made in accordance with the 2003 International
Plumbing Code of the International Code Council
(ICC), or with the 2003 Uniformed Hydraulic Code of
the IAPMO. The machine must be installed together
with an adequate non-return valve, as required by
national regulations.
3.3 Hydraulic connection (version with
inner tank)
In inner tank version the operations
of connection to the aqueduct are not
necessary as the water is supplied from
the tank inside the machine.

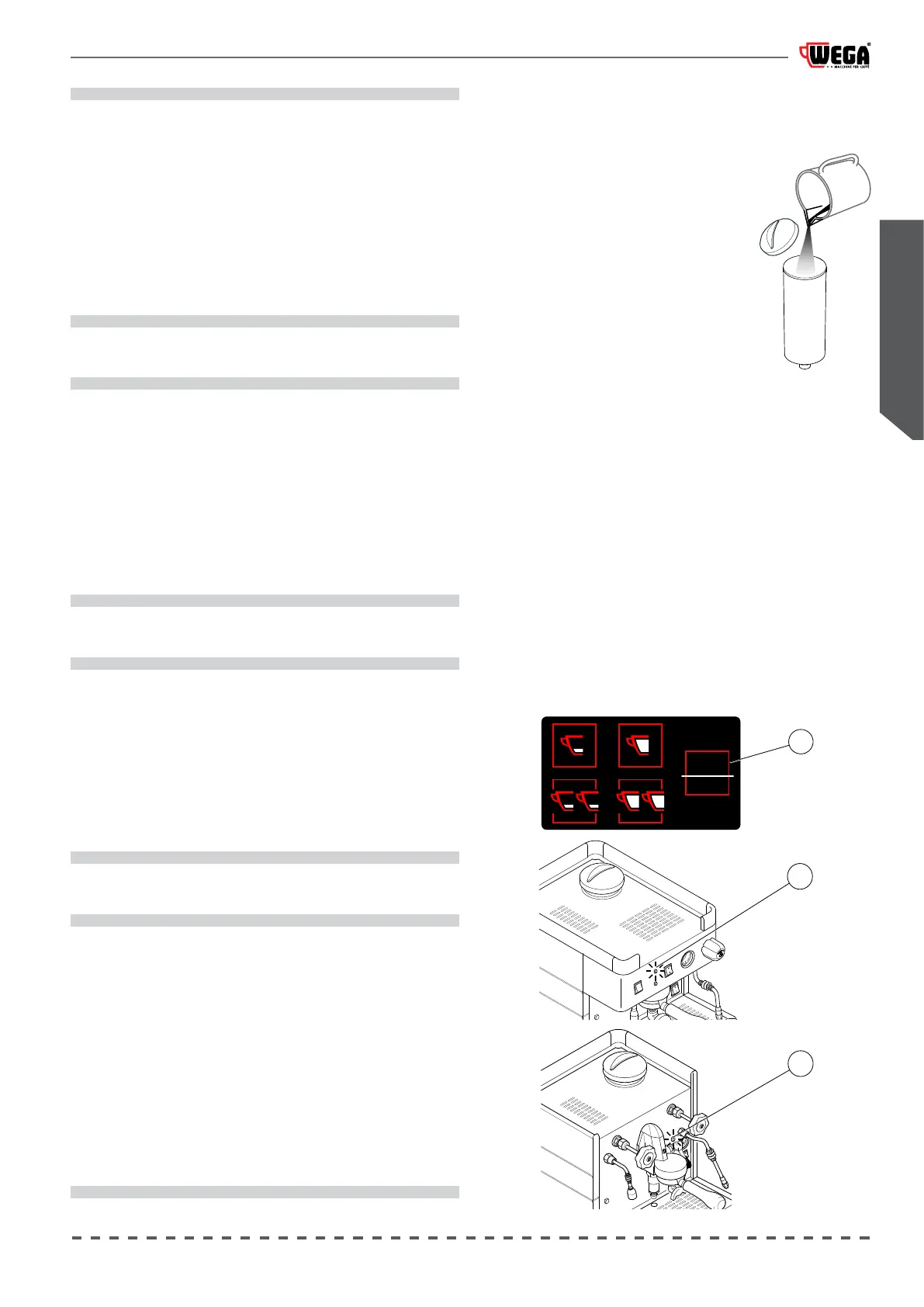

The possible lack of water in the
tank is indicated by the ashing led
of the STOP/PROG. (A) button for
EVD model or by the warning light in
specic patterns EPU (B) and EMA (C).
If the machine is ready to connect
to the aqueduct, follow the instructions
below:
1. Connect the water supply (10) to the entrance of
the water depuration lter (7) using the supplied
exible hose;
2. connect the output of the water filter (6) to the
entrance of the external motorpump (8) ;
3. connect the exit of the motorpump (9) alto the
entrance of the machine (4) ;
4. connect the drain pain of the machine llegare la
vaschetta di scarico della macchina (2) to the sewage
system allo scarico fognario (3) using the supplied
hose, taking care to avoid sharp bends or kinks and
keeping a sucient slope to drain water discharge.
PROG.
STOP
A
5
2
2
B
5
2
E
R
O
A
D
F
P
M
M
A
E
S
T
V
P
E
R
U
A
V
A
P
A
U
C
A
W
Q
A
S
E
S
E
R
W
A
T
U
E
A
C
