3 Machine installation
3.1 Positioning

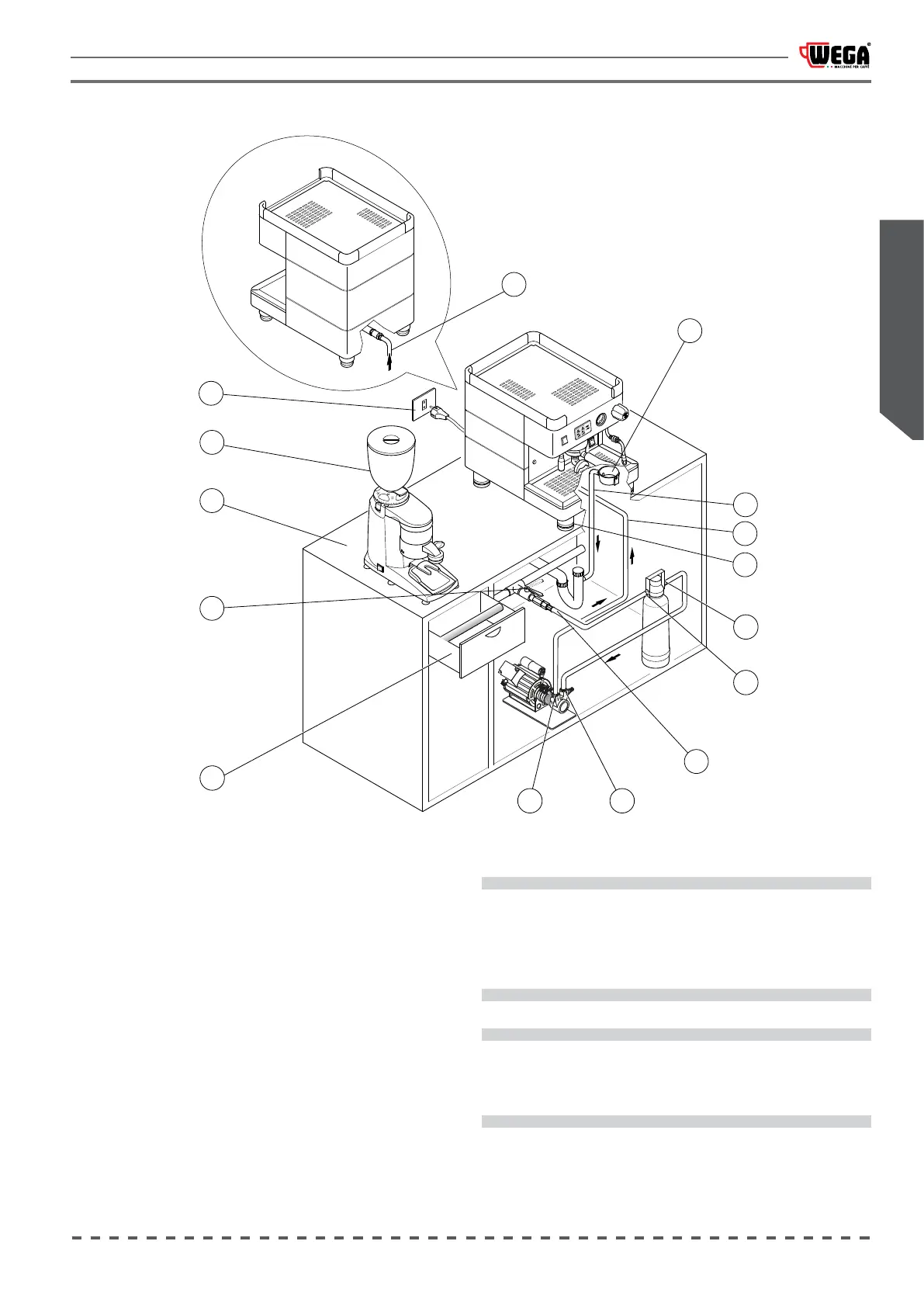

Prepare an ample support base for the machine that
is suitable to support its weight
(13);
It is important for
all terminals of connections to the water mains
(8)
and
to the electrical mains
(15)
to be easily reachable and in
any case in the immediate vicinity of the machine
.
Make sure that there is sucient space for placing
and correctly using the appliance
. When positioning the
machine close to the wall, you have to ensure a minimum
distance of 20 cm between the machine and the wall.
The grinding-dosing machine
(14)
must be placed
in the immediate vicinity of the appliance in order to
allow for comfortable use of the machine
.
It is advisable
to equip the working base of the machine with a drawer
(11)
for used coee grounds, preferably with a rubber
device for tapping the lter holder.
Place the motor pump (10) (only for version 1GR) in a
protected area with no humidity and away from accidental
contact with the operator.
!
For correct operation, the machine must rest on a
perfectly horizontal surface. Any alignment of the
machine must be done by adjusting the feet (5).
!
In case of installation of the machine in motion
environments (ships, trains, etc.) it's necessary
to use special feet, to be anchored on the support
base, available from the manifacturer.
5
2
2
1
2
3
5
8
6
7
10 9
11
12
13
14
15
4
