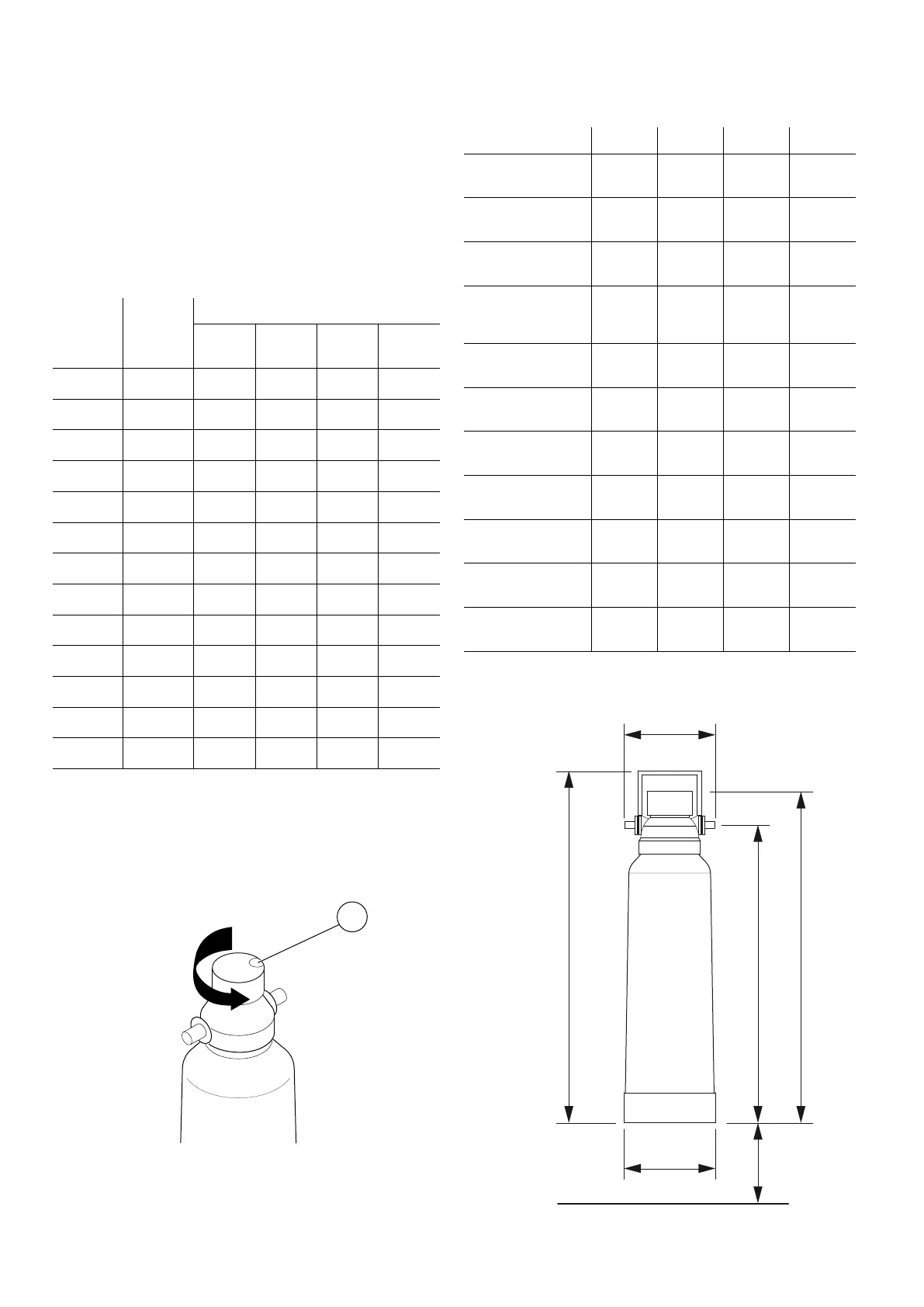

18.3 Setting by-pass
Depending on the hardness of the water, set by-pass
of the softener as indicated in the table below.
Example:
Water hardness 9°dKH
|
V
Setting by-pass 2
Water
hardness
(°dKH)
Setting
Bypass
Capacity of the lter (liters)
V M L XL
4 3 6.250 9.500 13.000 17.000
5 3 5.000 7.600 10.400 13.600
6 3 4.165 6.330 8.665 11.330
7 3 3.570 5.425 7.425 9.710
8 2 3.125 4.750 6.500 8.500
9 2 2.775 4.220 5.775 7.555
10 2 2.500 3.800 5.200 6.800
12 1 1.865 2.835 3.885 5.080
14 1 1.600 2.430 3.330 4.355
16 0 1.185 1.800 2.465 3.220
20 0 945 1.440 1.970 2.575
24 0 790 1.200 1.640 2.145
≥ 25 0 ≤ 755 ≤ 1.150 ≤ 1.575 ≤ 2.060
To set the by-pass, push the button (5) and rotate.
5
Model V M L XL
Connecting tting
type
3/8" 3/8" 3/8" 3/8"
Water supply pressure
min.-max. (bar)
2-8 2-8 2-8 2-8
Water temperature
min.-max. (°C)
4-30 4-30 4-30 4-30
Environment temperature
min.-max. (°C)
4-40 4-40 4-40 4-40
Total height (A)
without bracket (mm)
420 475 500 500
Total height (B)
with bracket (mm)
445 500 530 530
Connection height (C)
(mm)
370 425 450 450
Distance from the oor
(D) (mm)
65 65 65 65
Filter head widht
(E) (mm)
125 125 125 125
Filter cartridge
diameter (F) (mm)
115 130 145 145
Weight (kg)
(empty/with water)
2.1/3.2 2.4/4.2 3.4/5.9 3.8/6.0
18.4 Technical data
E
F
B
C
D
A
