Wega Mininova Use And Maintenance Manual For The Technician

45
Technical manual
ENGLISH
NERO
C:0 M:0 Y:0 K:100
ROSSO
C:0 M:100 Y:100 K:0
VERDE
C:100 M:0 Y:100 K:0
E
A
19
16
15
9
17
13
11
5
2021
6
7
3
2
1
4
12
S
10
10
25
18
-
O
+
EVD
9
8
11
7
26
S
14
22
23
24

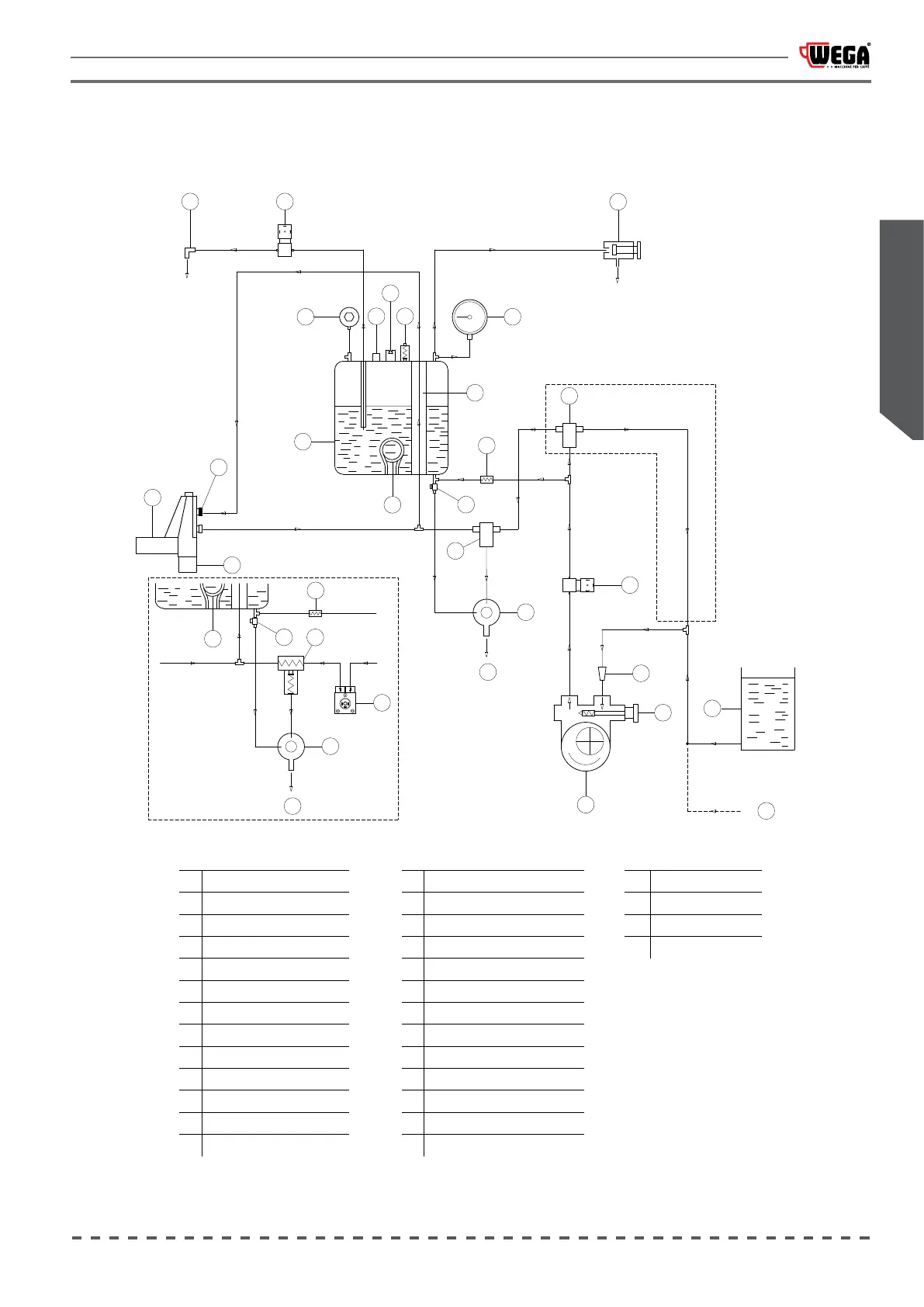

26 Hydraulic schemes
26.1 Hydraulic scheme 1GR
1 Water tank
2 Water entry lter
3 Motorpump/Vibration pump
4 Pressure pump regolation
5 Boiler solenoid valve (AEA)
6 By-pass valve
7 Drain pad
8 Non return+drain valve
9 Non return valve
10 Boiler discharge tap
11 Boiler resistance
12 Boiler
13 Coee exchanger
14 Pressure gauge
15 Safety valve
16 Antidepression valve
17 NTC probe
18 Pressure switch (versions EMA-EPU)
19 Steam tap
20 Hot water solenoid valve
21 Hot water tap
22 Dispensing group
23 Bottleneck
24 Group solenoid valve
25 Expansion valve
26 Volumetric dispenser(versione EVD)
A Version Vibration pump
E Aqueduct
EVD Version EVD
S Drain
