TECHNICIANS manual

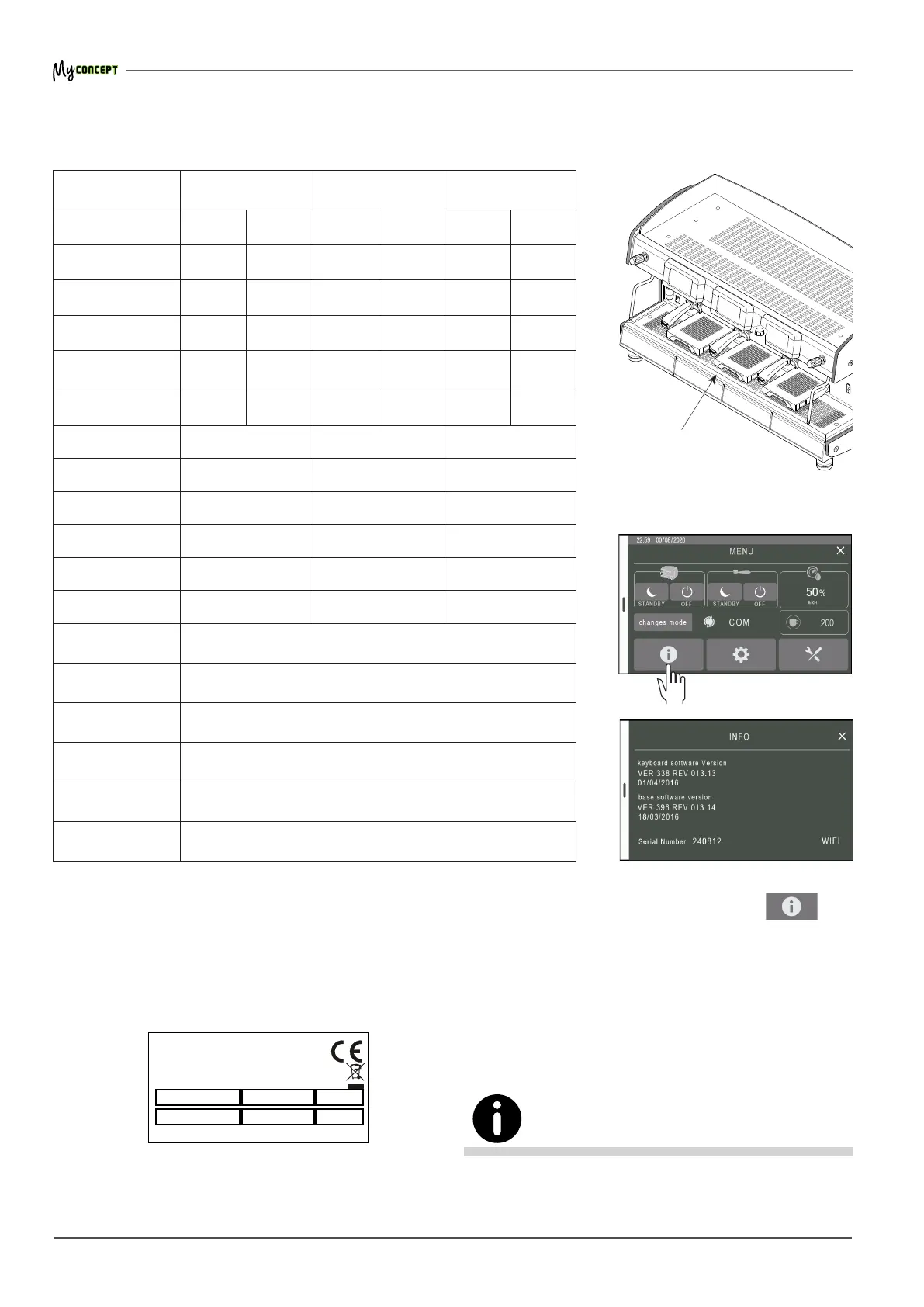

2.6 Data and CE marking
The technical data of the machine is shown in the
following table:
TECHNICAL DATA TABLE 2GR 3GR 4GR
Voltage 230/400 V 240/415 V 230/400 V 240/415 V 230/400 V 240/415 V
Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Max power 4,400 W 4,700 W 5,500 W 6,100 W 7,100 W 7,700 W
Group power 150 W x 2 165 W x 2 150 W x 3 165 W x 3 150 W x 4 165 W x 4
Coee boiler power
1,000 W
x 2
1,090 W
x 2
1,000 W
x 3
1,090 W
x 3
1,000 W
x 4
1,090 W
x 4
Steam boiler power 3,000 W 3,270 W 3,000 W 3,270 W 5,000 W 5,445 W
Coee boiler capacity 1,2 l x 2 1,2 l x 3 1,2 l x 4
Steam boiler capacity 8 l 13 l 13 l
Width 800 mm 1040 mm 1280 mm
Depth 580 mm 580 mm 580 mm
Height 590 mm 590 mm 590 mm
Net weight 95 kg 117 kg 142 kg
Safety valve
calibration (bar)
1.9 bar
Steam boiler
operating pressure
0.8 - 1.4 bar
Feedwater pressure 1,5 - 5 bar MAX
Coee dispensing
pressure
8 - 9 bar
Operation mode
temperature
5 - 40°C 95° MAX R.U.
Sound pressure level < 70 dB
According to the Directive 2006/42/EC, the machine is
marked with the CE marking, by which the manufacturer
declares, under its own responsibility, that the machine
is safe for people and things.
The CE nameplate is axed to the base of the frame
under the drain pan on which the identication data is
reported. Below is an example of the nameplate:
Via C. Bardini
,
1 SUSEGANA
(
TV
)
- ITALY
Tel. +39.0438.1799700 Fax +39.0438.1884890
MADE IN ITALY
W
S/N:
Mod.
Hz
Y
V
WEGA MACCHINE PER CAFFÈ S.r.l.
MARCHIO COMMERCIALE
The CE nameplate is xed
on the base of the frame
under the drain pan.
By entering the section "Menu" (see instructions in
the next chapters) and selecting the key
, you
can view the machine's serial number.
For any communication with the Manufacturer, al-
ways note the following information:
• S/N - machine serial number;
• Mod. - machine model
• Y - year of manufacture;
The data of the appliance can be seen also on the
label located on the package of the machine.
It is forbidden to remove or damage the nameplate. If it needs
replacing urgently, always exclusively contact the Manufacturer.
