5.6 Drilling the support base

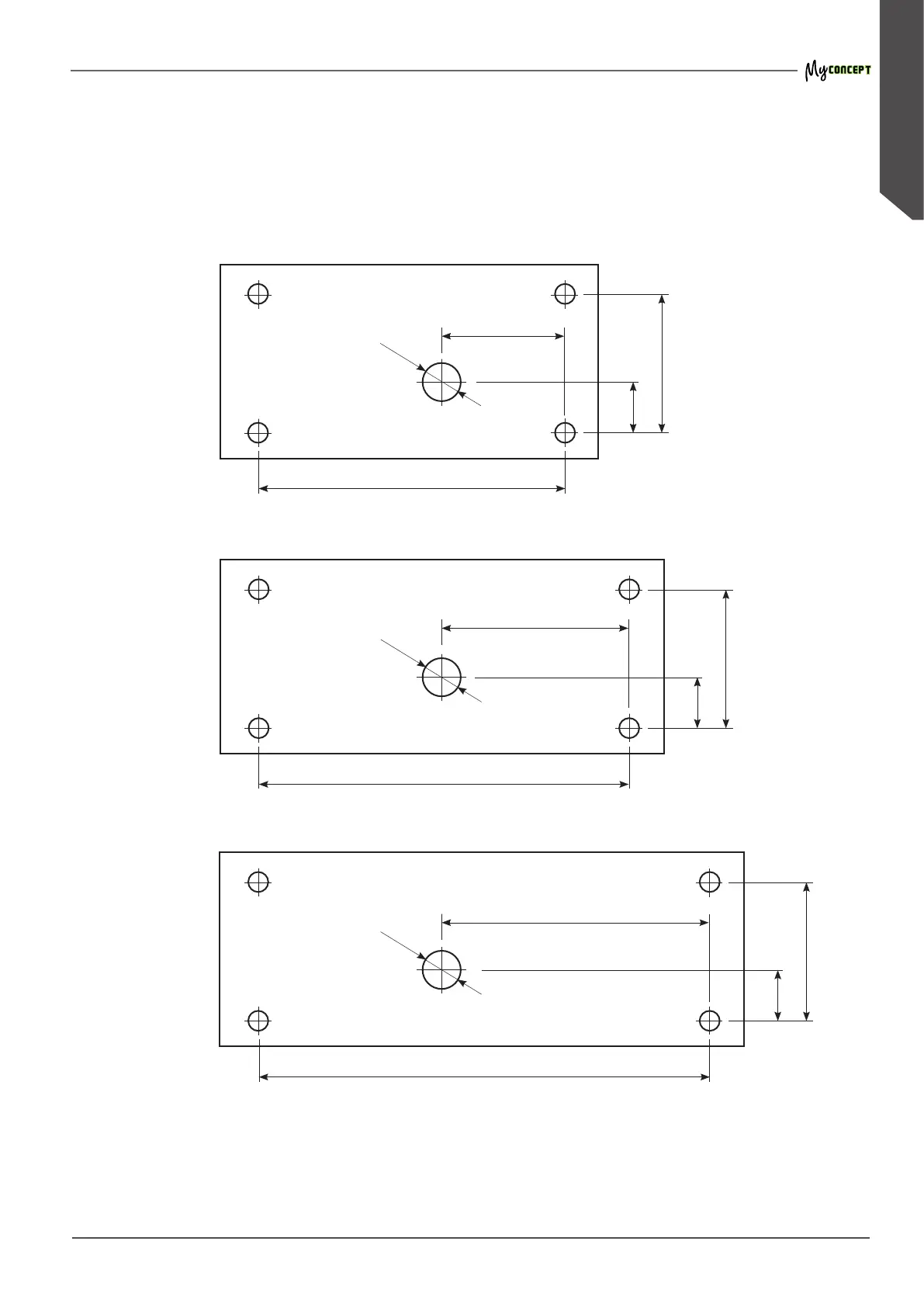

If it is necessary to drill holes on the support bench

for passing the water inlet and outlet hoses, as well as

the electrical supply cables, follow the directions in the

drawings below.

4 GROUPS

400 mm

1016 mm

Front of the machine

382 mm

200 mm

100 mm

3 GROUPS

300 mm

776 mm

Front of the machine

382 mm

200 mm

100 mm

2 GROUPS

200 mm

536 mm

Front of the machine

382 mm

200 mm

100 mm
