TECHNICIANS manual

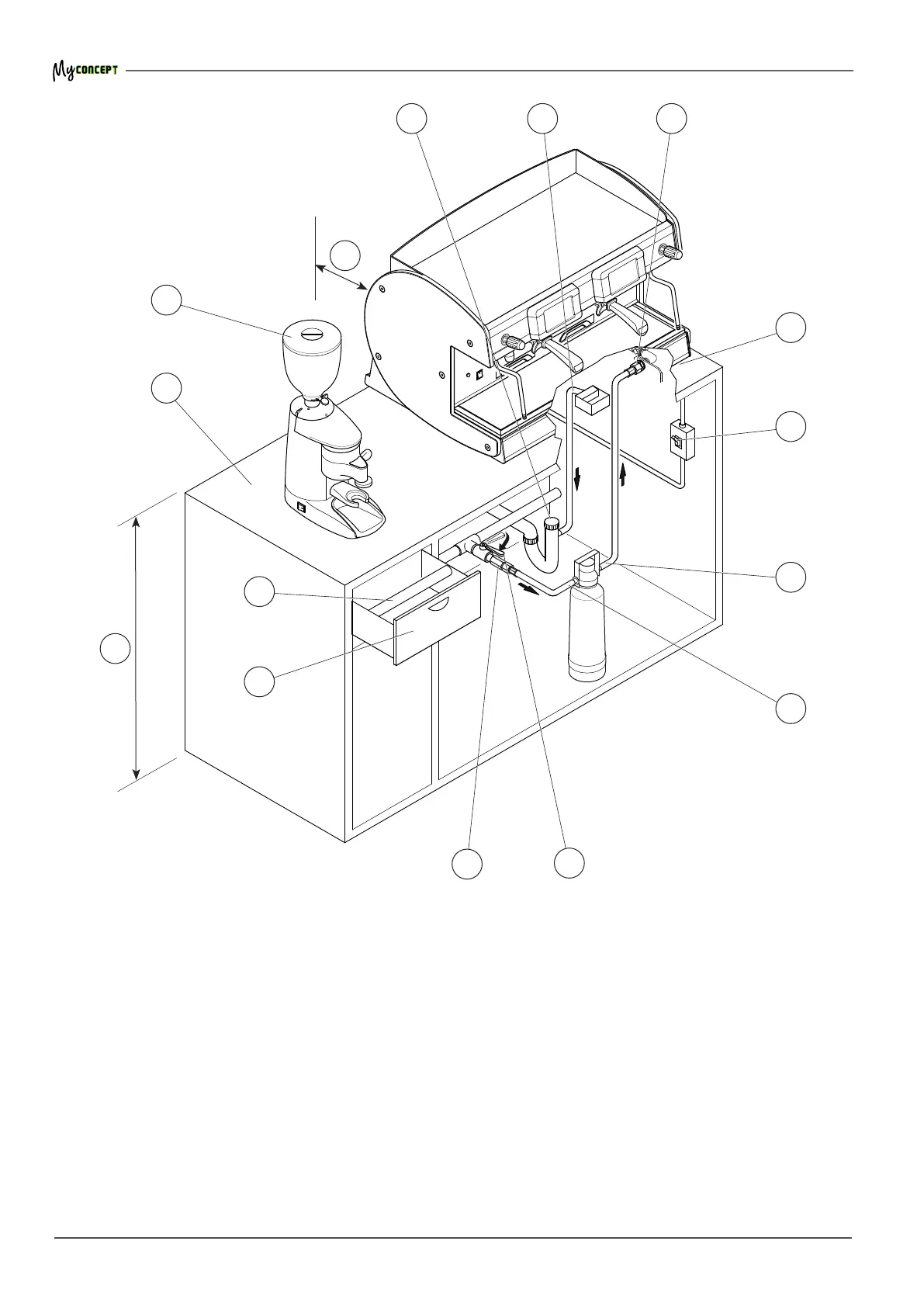

1. Support base

2. Grinder-dispenser

3. 20 cm minimum distance between the machine

and the wall

4. Sewer drain

5. Discharge tub

6. Water supply inlet

7. Adjustable feet

8. Electric power switch

9. Water lter inlet

10. Water lter outlet

5 6

11. Water supply tap

12. Water supply non-return valve

13. Used coee grounds drawer

14. Support for tapping the lter holder

15. Height of support base 90 cm

Default Chapter3
- Table of Contents3
1 Introduction4
- Guidelines for Reading the Manual4
- Storing the Manual4
- Method for Updating the Instruction Manual5
- Recipients5
- Glossary and Pictograms5
- Guarantee6
- Customer Service6
2 Identification of the Machine7
- Make and Model Designation7
- General Description7
- Intended Use7
- Machine Description8
- Internal Components9
- Data and CE Marking10
3 Transport and Handling17
- Safety Precautions17
- DPI Characteristics17
- Dimensions and Weight17
- Handling the Packed Machine17
- Unpacking the Machine17
4 Storage18
- Overview18
- Storing the Machine after the Operation18
5 Installation18
- Safety Precautions18
- DPI Characteristics19
- Environmental Conditions19
- Installation Space and Operating Space19
- Support Base19
- Drilling the Support Base21
- Hydraulic Connection22
- Electrical Connection23
6 Commissioning24
- Safety Precautions24
- Filter Holder Preparation24
- Coffee Grinding24
- Autosteamer24
- Turning the Machine on and off25
- Water Replacement26
7 Machine Information26
8 Parameter Programming27
- Access27
- Programming Menu29
- Maintenance Report30
- Service Tuning31
- Washes32
- Check of Dispensing33
- Coffee Tuning34
- Language35
- Recipe Management36
- Alarm History37
- Filters38
- Parameter List39
- Maintenance Thresholds40
- Usb41
- Inspections42
- List of Counters43
- Boiler Efficiency44
- Parameter Reset45
9 Wifi Connection46
10 Maintenance and Cleaning47
- Safety Precautions47
- DPI Characteristics47
- Maintenance48
- Water Filter Maintenance51
- Regeneration of the Water Softener53
- Malfunctions and Relative Solutions54
- Cleaning Operations56
11 Spare Parts58
12 Display Indications59
13 Decommissioning62
- Short Machine Downtime62
- Long Machine Downtime62
14 Dismantling62
15 Disposal63
- Information for Disposal63
- Environmental Information63
16 Electrical Diagrams64
- Electronic Control Unit Diagram64
- Electronic Control Unit Connection Diagram66
- DISPLAY Control Unit Diagram67
17 Hydraulic Diagram68
18 Parameter Table69
19 Alphabetical Index of Topics73
