TECHNICIANS' manual
- English -
12
di
52
2.6

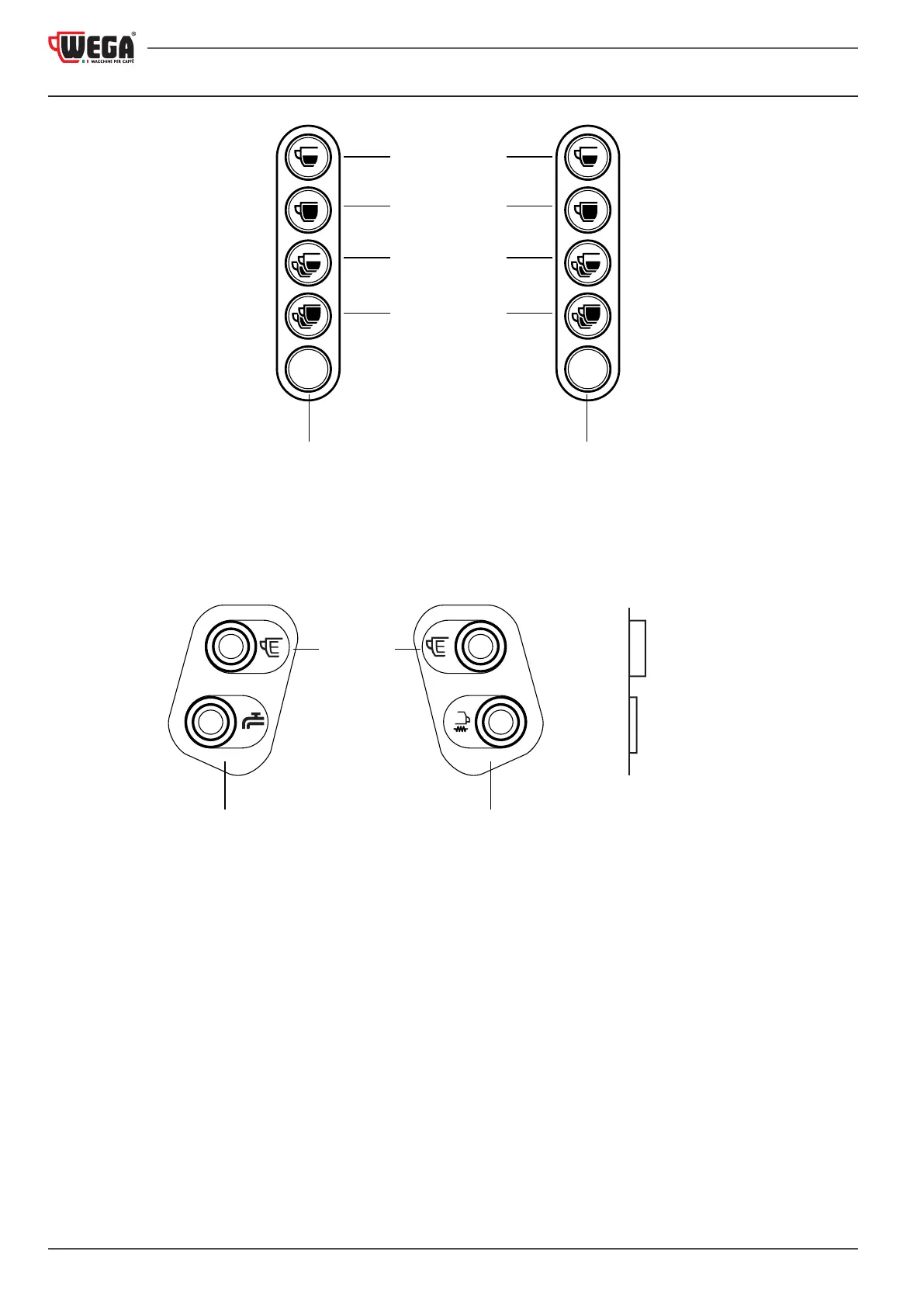

Front command pushbutton panels
1 espresso
1 large co
ee
2 espressos
2 large co
ees
Stop Program-
ming / Conti-
nous
AUT
O
STEAM
STOP
PROG.
AUTO
STEAM
ST
OP
PROG.
Autosteamer
(Optional)
K
ey pos.
OFF
K
ey pos.
ON
Manual
dispensing
switch
Hot water dis-
pensing switch
Cup warmer
(Optional)
11
13
Table of Contents
Table of Contents
6
Introduction
7
Guidelines for Reading the Manual
7
Storing the Manual
7
Method for Updating the Instruction Manual
7
Recipients
7
Glossary and Pictograms
8
Guarantee
9
Machine Identification
9
Make and Model Designation
9
General Description
9
The Manufacturer's Customer Service
9
Intended Use
10
Machine Diagram
11
Front Command Pushbutton Panels
12
Componenti Interni
13
Data and Marking
14
Transport and Handling
20
Safety Precautions
20
PPE Features
20
Dimensioni E Peso
20
Handling the Packed Machine
20
Unpacking the Machine
20
Storage
21
Overview
21
Storing the Machine after Operation
21
Installation
21
Safety Precautions
21
PPE Features
21
Environmental Conditions
21
Installation and Operation Spaces
22
Support Base
22
Drilling the Support Base
24
Hydraulic Connection
24
Commissioning
26
Safety Precautions
26
Preparing The Filter Holders
26
Cup Warmer (If Fitted)
26
Lighting (If Fitted)
27
Autosteamer (If Fitted)
27
Turning the Machine on and off
27
Water Renewal
28
Dispensing Coffee
28
Dispensing Steam
29
Dispensing Hot Water
30
Tips for a Good Cup of Coffee
30
Maintenance and Cleaning
31
Safety Precautions
31
PPE Features
31
Bodywork Removal
31
Maintenance
32
Water Filter Maintenance
34
Water Softener Regeneration
36
Malfunctions and Solutions
37
Warnings
39
Cleaning Operations
40
Spare Parts
41
Decommissioning
42
Short Period of Machine Inactivity
42
Long Period of Machine Inactivity
42
Disassembly
42
Disposal
42
Disposal Information
42
Environmental Information
42
Wiring Diagrams
43
ELECTRIC MAINS Connection
43
Power Supply Wiring Diagram
44
Electronic Control Unit
45
Connector Connection
46
Push Button Panel Connector
47
LED Power Supply Connection
47
Hydraulic Diagrams
48
Hydraulic Diagram EVD/2
48
Hydraulic Diagram EVD/3
49
