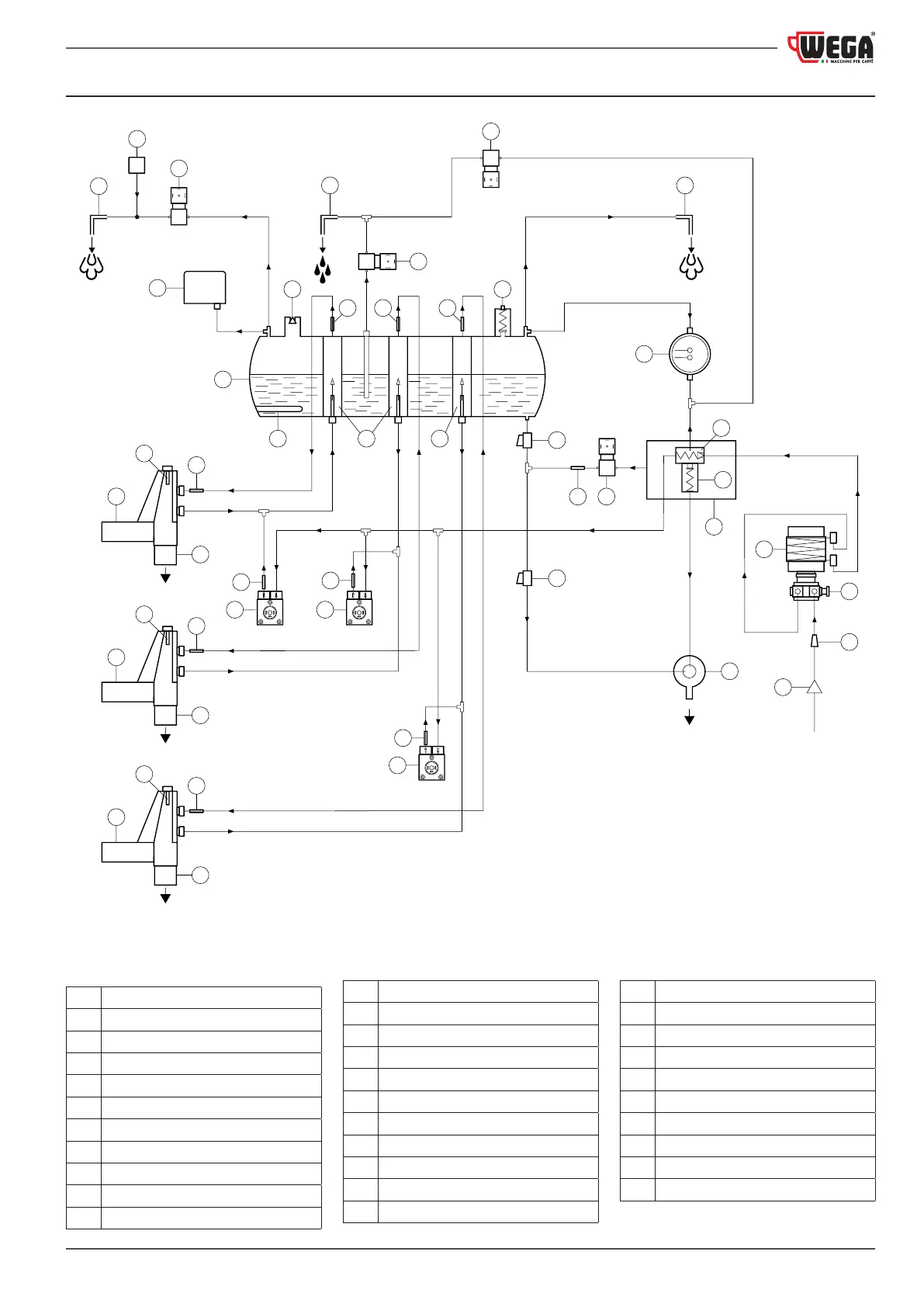

13.2 Hydraulic Diagram EVD/3
-
O
+
-
O
+
-
O
+
22
26
23
24
2120
27 27 27
29
19
25
16
17
13
27
12
14
18 18
10
5
28 9
7
13
27
15 15
15
12
14
13
27
12
14
10
11
S
S
S
S
1
2
4
3
6
8
31
30
30
30
1 Water mains inlet
2 Water inlet filter
3 Motor pump
4 Pump pressure adjustment
5 Multifunctional dispenser
6 Expansion valve
7 Non-return valve
8 Pressure gauge
9 Filling solenoid valve
10 Tap
11 Drain tray
12 Dispensing group
13 Dispensing group solenoid valve
14 Ø 0.7 injector
15 Volumetric dosing device
16 Heating unit
17 Heating unit heating element
18 Heat exchanger
19 Pressure switch
20 Negative pressure valve
21 Safety valve
22 Frothed milk steam nozzle
23 Frothed milk solenoid valve
24 Hot water spout
25 Steam spout
26 Air pump
27 Ø 4 / 2,5 injector
28 Ø 1,2 injector
29 Hot Water solenoid valve
30 Ø 0,6 Gicleur
31 Cold Water solenoid valve
S Drainage
