Wega WBAR EVD User Manual

TECHNICIANS' manual
- English -
14 di 52

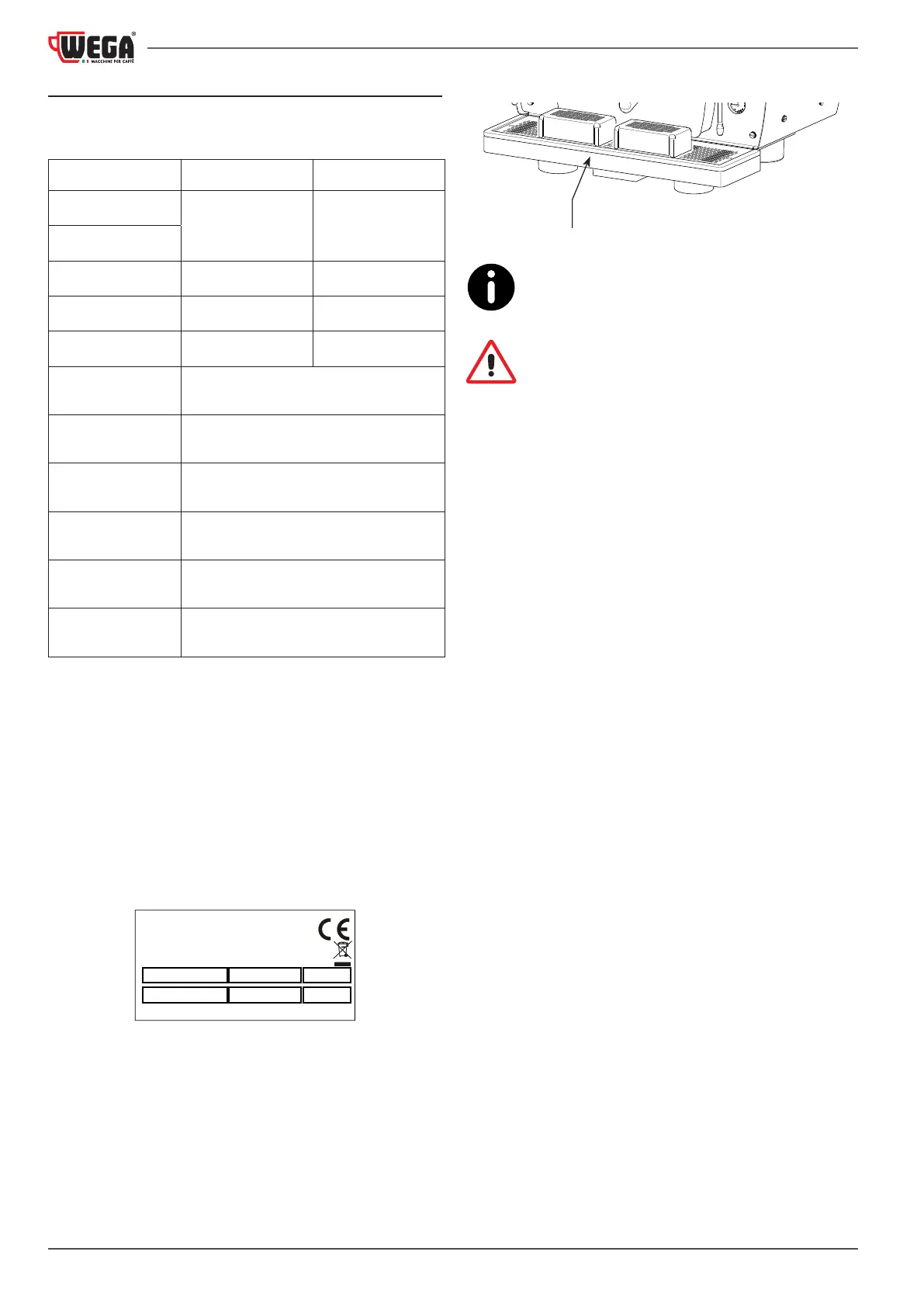

2.8 Data and marking
The machine’s general technical data is provided in the follow-
ing table:
TECHNICAL DATA 2GR 3GR
220-240 V
3.650-4.650 W 5.150 W
380-415 V
Frequency 50-60 Hz 50-60 Hz
Heating unit 9,5 l 15,5 l
Dimensions (LxWxH) 745x575x605 mm 985x575x605 mm
Safety valve
calibration
0,19 MPa (1,9 bar) +/- 0,015 MPa
Heating unit
operating pressure
0,08 - 0,14 MPa (0,8 - 1,4 bar)
Mains water
pressure
0,15 - 0,6 MPa MAX (1,5 - 6 bar MAX)
Coee dispensing
pressure
0,8 - 0,9 MPa (8 - 9 bar)
Working environ-
ment temperature
5 - 35°C 95° U.R.MAX
Sound pressure level < 70 dB
In compliance with directive 2006/42/CE, the machine is
marked with the CE code with which the manufacturer de-
clares under his responsibility that the machine is safe for per-
sons and things.
Alternative markings can be axed according to the target
markets, provided they comply with current product regula-
tions.
The nameplate which provides the appropriate markings,
identification data and specific technical data, is axed under
the drain tray.
An example of a nameplate is provided below.
When contacting the Manufacturer, always provide the follow-
ing information:
• S/N - machine serial number.
• Mod. - machine model.
• Y - year of manufacture.
The appliance data can also be found on the label located on
the machine's packaging.
The nameplate is axed under the drain tray
It is forbidden to remove or modify the nameplate.
Should it deteriorate or become illegible, contact the
Manufacturer.
To correctly connect the machine to the electric mains,
refer to Chap. "12. WIRING DIAGRAMS" on page 43.
Via
C.
B
a
r
d
i
n
i,
1
S
U
S
E
GANA
(
T
V)
-
I
T
ALY
Tel. +39.0438.1799700 - Fax +39.0438.1884890
MADE IN IT
A
LY
W
S/N:
Mod
.
H
z
Y
V
WEG
A
M
A
C
C
H
I
N
E
P
E
R
CA
F
F
È
S
.
r
.
l
.
TRADEMARK
