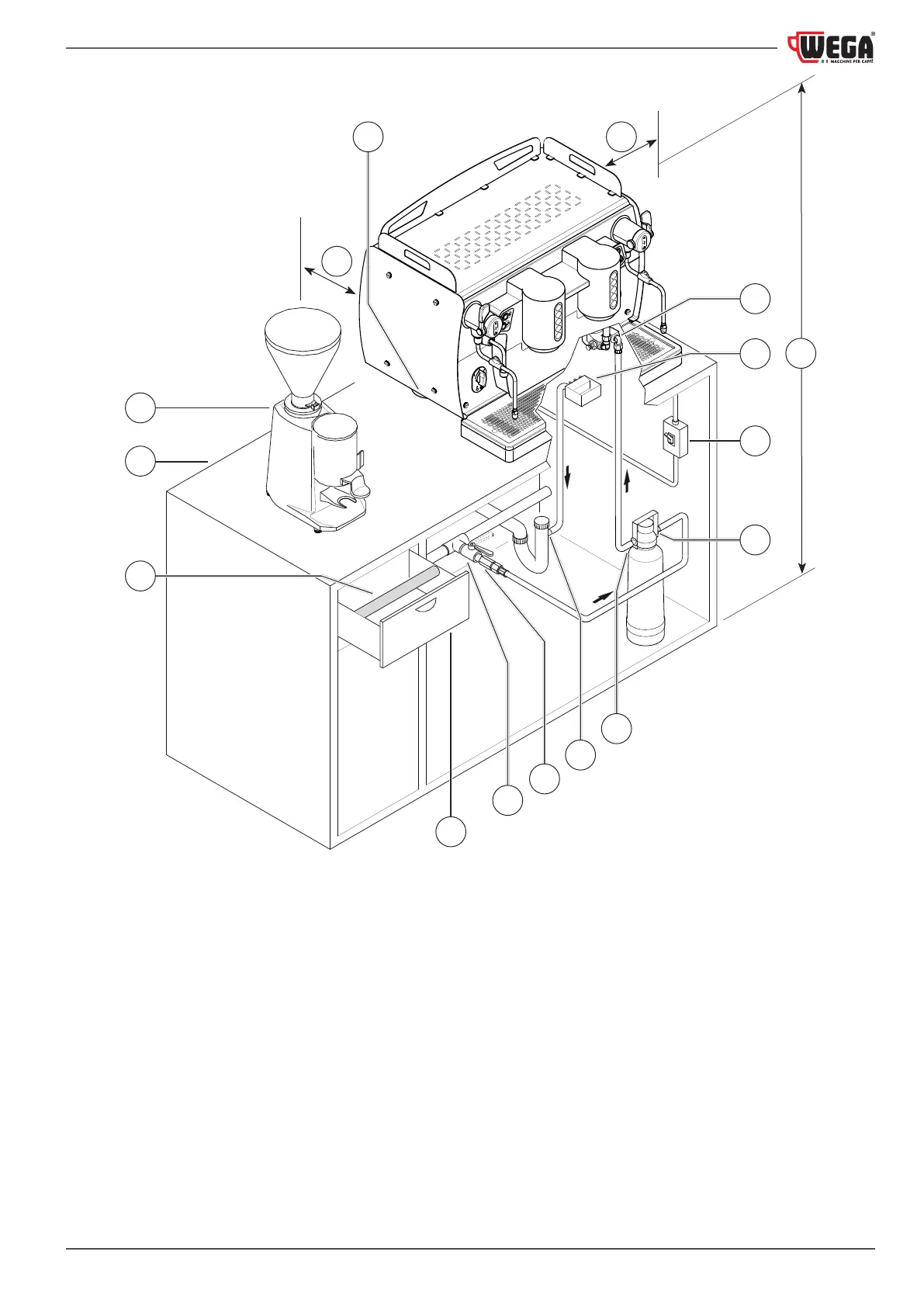

40. Support base.
41. Grinder-dispenser.
42. 50 cm minimum distance between the machine and the
wall.
43. Drain tray.
44. Water mains inlet.
45. Adjustable feet of the machine.
46. Electrical mains switch.
47. Water filter inlet.
48. Water filter outlet.
49. Sewer drain.
50. Water mains non-return valve.
51. Water mains valve.
52. Used coee grounds drawer.
53. Support for knocking out the grounds in the filter
holder.
54. The minimum height of the machine top from the floor
must be 150 cm.
5.5 Support base
To ensure a sucient degree of ergonomics and machine safe-
ty, a support base with the following features must be made
available (reference drawings on the next page):
• Ensure that there is sucient space for the machine to be
positioned and used correctly.
• The worktop (40) must be comfortable and able to with-
stand the machine’s weight. The height of the upper sec-
tion of the machine (54) must be at least 150 cm from the
floor.
• The base must be perfectly level and have no irregularities.
• The terminals for connecting to the water mains (51) and
electrical mains (46) must be in the immediate vicinity of
the support base.
• The machine can also be positioned against a wall, but
please leave enough space - at least 50 cm (42) - on the
right and left for easy access during cleaning operations.
• Fit a drawer under the worktop (52) which will be used to
deposit used coee grounds and if possible, also fit a rub-
ber support (53) to knock the filter holder against.
FOR THE USA: Replace the machine’s feet (45) with
the raised ones supplied.
The new feet must be firmly fastened to the machine
by means of the specific nut.
In order to work properly and ensure safety, the ma-
chine must rest on a perfectly horizontal surface.
Any machine alignment adjustments must be carried
out by adjusting the feet (45).
42
42
54
40
41
53
45
46
44
43
47
48
49
50
51
52
