Weinmann Oxygen MODULE User Manual

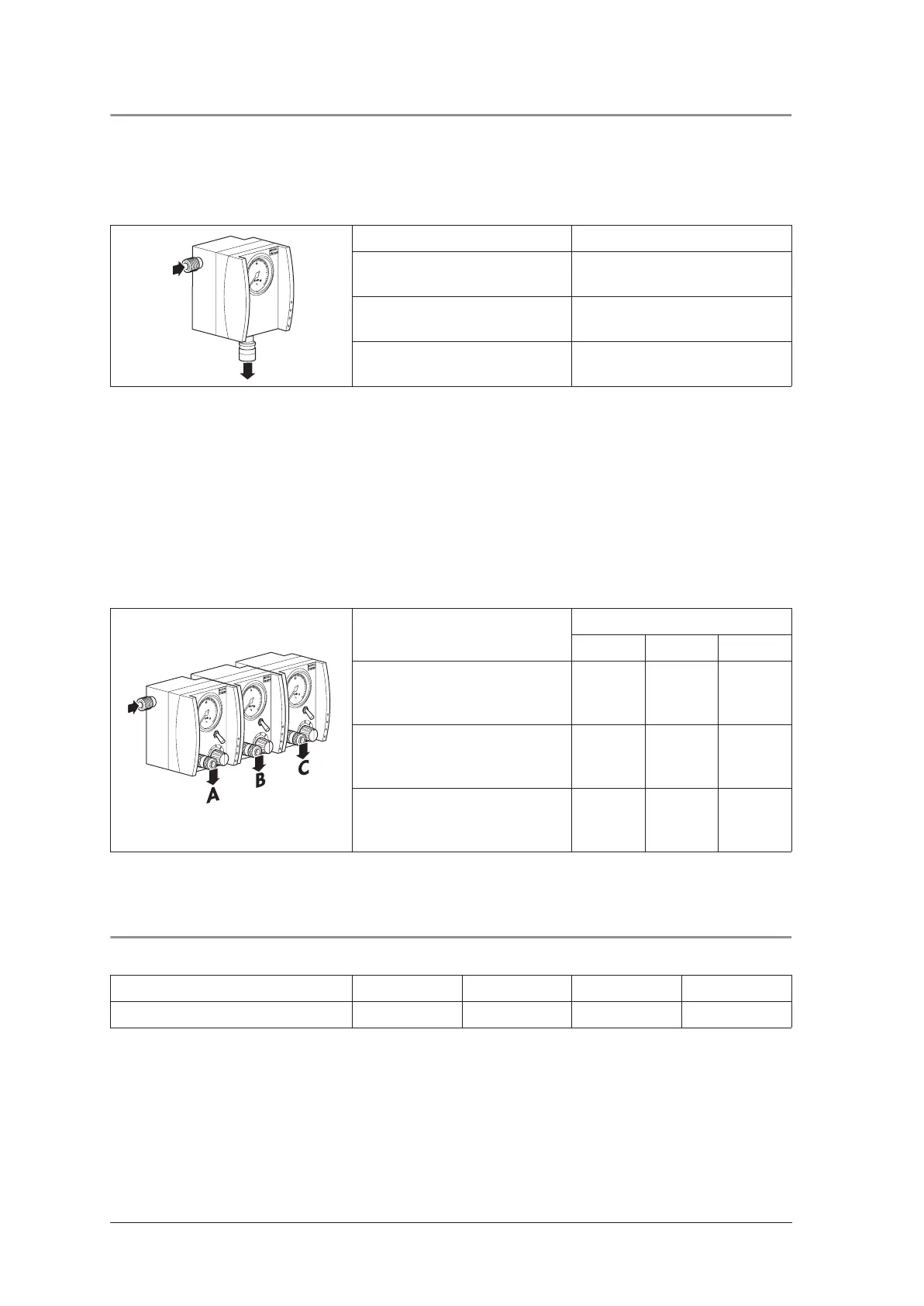

42 Technical data
9.1 External oxygen flow volume
The following flow volumes apply when oxygen is supplied to other equipment.
Interface MODULE
More than one module
When several modules are connected in series,
the flow volume decreases with the module’s dis-
tance from the oxygen input. This is due to the high
flow resistance arising when the oxygen passes
through more than one module.
The figures are based on the assumption that oxy-
gen is being supplied only from one module at a
time.
9.2 Oxygen flow volume from inhalation connection
Tolerance ±10%
Oxygen input External oxygen flow volume
2.7 bar dynamic operating
pressure at 80 l/min
not less than 70 l/min
from Weinmann pressure reducer
WM 1102/106
not less than 100 l/min
from Weinmann pressure
reducer WM 30301
not less than 90 l/min
O
2
Oxygen input
External oxygen flow volume
A B C
2.7 bar dynamic operating
pressure at 80 l/min
not less
than
76 l/min
not less
than
73 l/min
not less
than
70 l/min
from Weinmann pressure reducer
WM 1102/106
not less
than
100 l/min
not less
than
95 l/min
not less
than
90 l/min
from Weinmann pressure reducer
WM 30301
not less
than
91 l/min
not less
than
88 l/min
not less
than
85 l/min
Input pressure 2.7 bar 3.0 bar 3.5 bar 6.0 bar
Maximal oxygen flow volume 11 l/min 12 l/min 15 l/min 15 l/min
