Interface MODULE 33
6.5.5 Replacing the non-return valve in the distributor block
See ”6.2.5 Replacing the non-return valve in the distributor block“ on page 19.
Important!
Please observe the exceptions for dismantling and assembling the housing under
• ”6.5.3 Dismantling the housing“ on page 32,
• ”6.5.4 Assembling the housing“ on page 32.
6.5.6 Replacing the pressure gauge
See ”6.2.6 Replacing the pressure gauge“ on page 20.
Important!
Please observe the exceptions for dismantling and assembling the housing under
• ”6.5.3 Dismantling the housing“ on page 32,
• ”6.5.4 Assembling the housing“ on page 32.

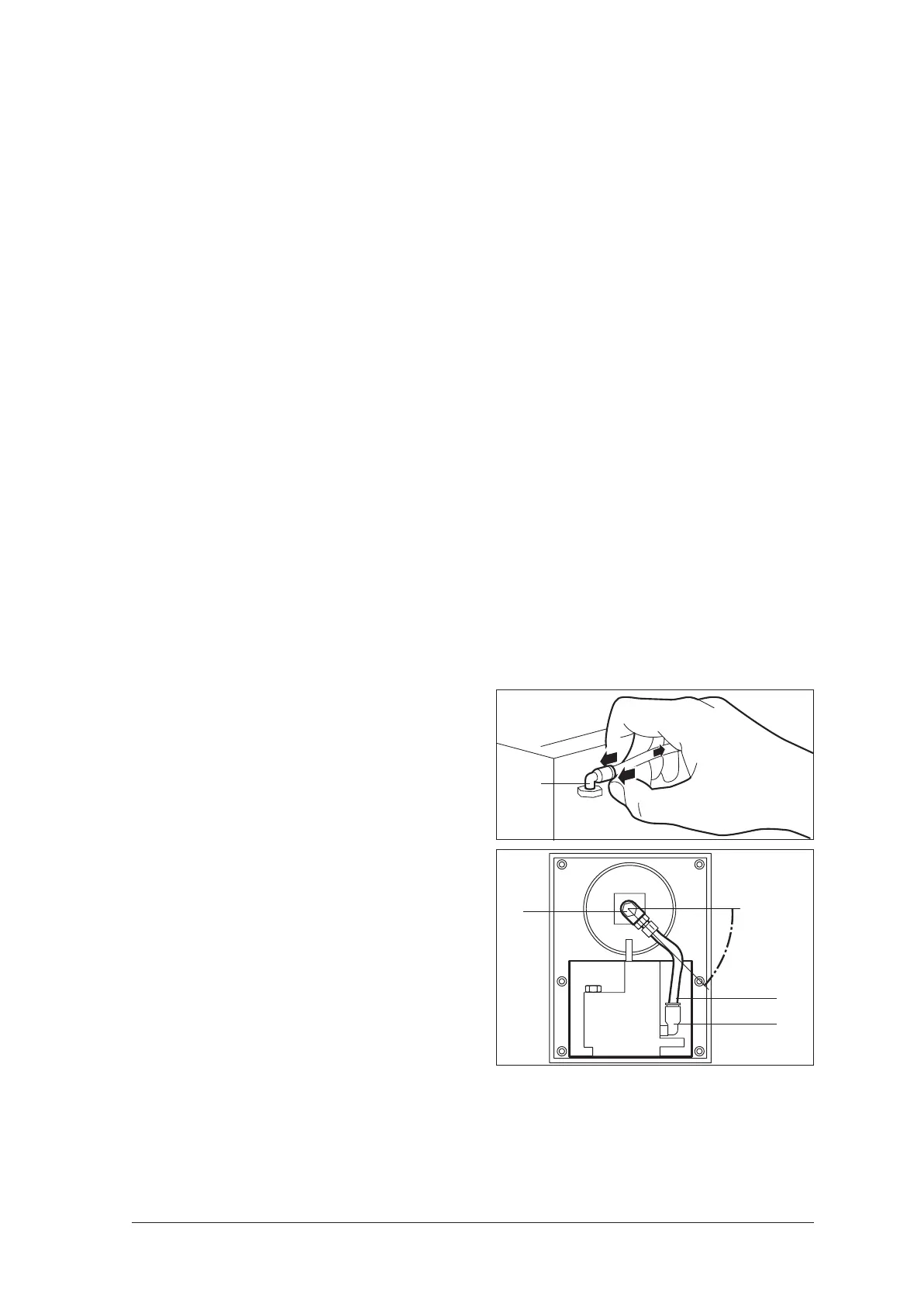

6.5.7 Replacing the tubes
See ”6.2.7 Replacing the tubes“ on page 21, but with three exceptions:
1. Re: step 6.:
The pressure gauge tube 22 is 60 mm long.
2. Re: steps 4. to 6.:
On the pneumatic block, the pressure gauge
tube 22 is held by an angular bush 40, rather
than a single-lug clip.
– To release the tube, push back the sleeve of
the angular bush 40 and pull out the tube.
– To secure the tube, push it into the angular
bush 40 as far as it will go.
3. Re: step 8.:
In the Interface MODULE, the pressure gauge
tube 22 has a different installation position:
The swivel screw connection 42 must be lying at
an angle of approx. 45° to the horizontal.
Important!
Please observe the exceptions for dismantling and assembling the housing under
• ”6.5.3 Dismantling the housing“ on page 32,
• ”6.5.4 Assembling the housing“ on page 32.
40
≈ 45°
40
22
42
