26 Suction MODULE
6.3 Suction MODULE
6.3.1 Replacing the sieve in the oxygen inlet
See ”6.2.1 Replacing the sieve in the oxygen inlet“ on page 13.
6.3.2 Replacing the O-ring in the oxygen outlet
See ”6.2.2 Replacing the O-ring in the oxygen outlet“ on page 14.
6.3.3 Dismantling the housing
See ”6.2.3 Dismantling the housing“ on page 14.
6.3.4 Assembling the housing
See ”6.2.4 Assembling the housing“ on page 16, apart from three exceptions:
1. Re: tools required:
In addition, you will need an open-ended
spanner SW 14.
2. Re: step 10.:
The swivel screw connection must be at an angle
of approximately 45° to the horizontal.
3. Re: step 4.:
The installation position of the two blind
plugs 35 is different:
– In the housing base section 16, the flattened
side is pointing towards the vacuum con-
nection,
– In the upper housing section 15, the flat-
tened side is pointing towards the second
blind plug.

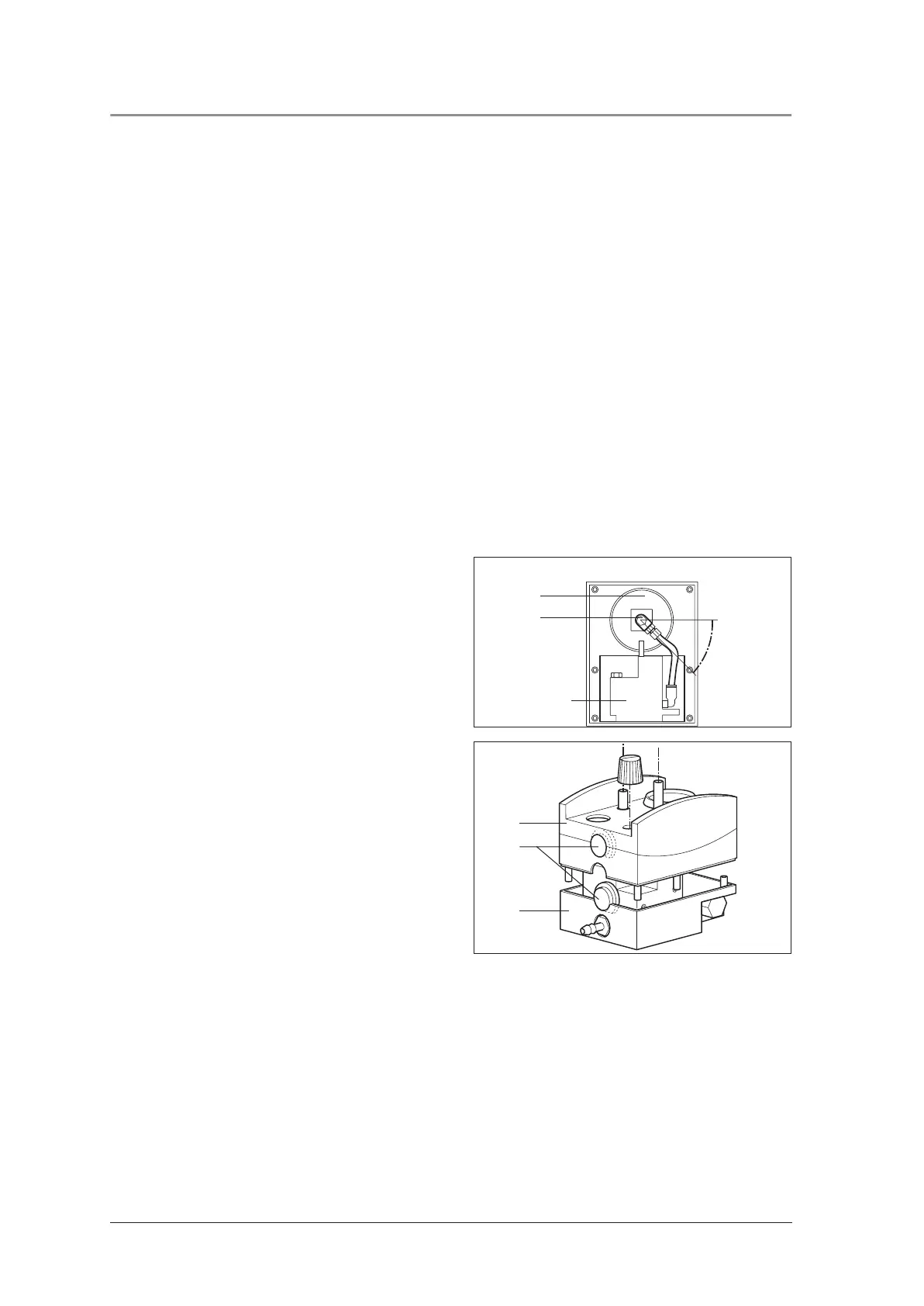

≈ 45°
42
6
Pneumatic block
Illustration of subsequent installation position
35
16
15
